Middle Atlantic 2000VA 120V UPS Rlnk Bank Control - UPX-RLNK-2000R-2

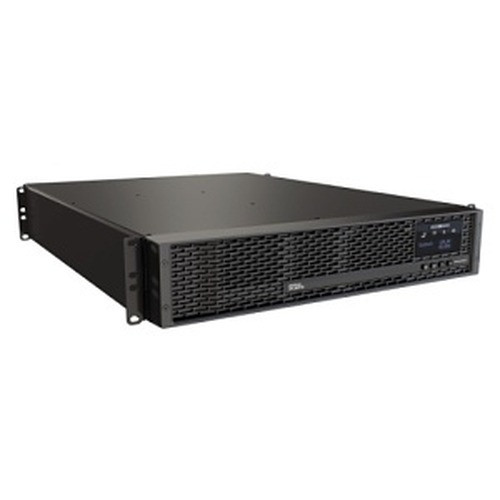

Middle Atlantic UPX-RLNK-2000R-2 2000VA Line-Interactive UPS with RackLink Bank Control

The Middle Atlantic UPX-RLNK-2000R-2 is a 2000VA / 1800W line-interactive rack UPS built for security equipment rooms, AV infrastructure racks, and surveillance head-end closets where you need network-controlled outlet switching and stable DC power delivery in a single 2RU chassis. This NEXSYS UPS ships with a network card already installed — no add-on module, no additional license — and gives you per-bank outlet control via RackLink so you can cycle cameras, NVRs, or switches remotely without touching the rack. Explore the full Middle Atlantic power and rack product line for compatible enclosures and power management accessories.

Key Features

• 2000VA / 1800W capacity: Rated at 2000VA with a real-power output of 1800W — a meaningful distinction. Many UPS units derate heavily between VA and watts; the 90% power factor here means you're not grossly oversizing to get adequate watt headroom. A typical 8-camera NVR rack pulling 600–900W has substantial runtime margin.
• Line-interactive topology: Voltage regulation happens without switching to battery — the inverter continuously corrects sags and surges. For surveillance NVRs and managed switches that log every power event, this keeps the UPS off battery during routine utility fluctuations and extends battery service life compared to standby designs.
• Per-bank outlet control via RackLink: All 8 NEMA 5-20R receptacles are managed at the bank level through the RackLink interface. That means you can schedule reboots, cycle a frozen device, or cut power to non-critical outlets during a battery event — all from a browser or network management system, without a separate PDU.
• Network card included: A network management card is pre-installed. You get SNMP monitoring, event alerts, and remote control out of the box. For integrators managing multiple sites, this is the spec that eliminates a truck roll for a frozen device.
• 48V DC output: In addition to the eight 120V AC receptacles, the UPX-RLNK-2000R-2 provides a 48V DC output — useful for powering PoE midspans, certain access control power supplies, or DC-native equipment in the same rack without a separate DC power supply.
• 20A NEMA 5-20P plug, 20A circuit required: The UPS draws from a dedicated 20A circuit (NEMA 5-20P). If your equipment room only has 15A circuits, that's a hard planning constraint — factor it into the electrical rough-in before the rack arrives.
• MOV surge protection: Metal oxide varistor surge suppression is built in across all outlets. Not a substitute for a whole-building SPD, but it handles transient spikes that slip past upstream protection.
• 2RU, standard 19-inch rackmount: At 19 in wide and 3.46 in tall, the UPX-RLNK-2000R-2 drops into any standard 19-inch rack. Depth is 22 in, and the mounting system supports racks from 28 in to 36 in deep — covers the majority of server and AV rack form factors in the field.
• Operating temperature 32°–104°F (0°–40°C): Standard commercial equipment room range. Not rated for uncontrolled environments; if your head-end closet runs hot in summer, verify ambient temps stay under 104°F or expect accelerated battery degradation.
• CSA / FCC / RoHS certified: Meets safety and emissions standards for commercial installation in North America. RoHS compliance is relevant for projects with environmental materials specifications.

Integration and Compatibility

The UPX-RLNK-2000R-2 fits squarely in surveillance and AV head-end racks. The network card supports SNMP, which integrates with most enterprise monitoring platforms (SolarWinds, PRTG, Nagios, and similar). RackLink software — Middle Atlantic's proprietary management layer — provides a unified view of outlet state, load metering, and event scheduling. This UPS pairs well with network video recorders and PoE switches that require reliable 120V feed with managed restart capability. The 48V DC bus broadens compatibility to DC-native rack equipment. For installations requiring TAA-compliant components, note that the UPX-RLNK-2000R-2 is not TAA compliant — confirm project specifications before quoting. If your project mandates TAA, consult the broader UPS and power backup category for compliant alternatives.

Frequently Asked Questions

Q: Is the UPX-RLNK-2000R-2 TAA compliant?

A: No. The UPX-RLNK-2000R-2 is not TAA compliant. If your project requires TAA-compliant power equipment, verify alternative models before ordering.

Q: Does the UPX-RLNK-2000R-2 include a network card, or is it an add-on?

A: The network card is included in the box — no additional module or license is required. The unit ships network-enabled and RackLink-ready out of the box.

Q: What circuit type does the UPX-RLNK-2000R-2 require?

A: It requires a dedicated 20-amp circuit. The plug is NEMA 5-20P. Standard 15A circuits are not compatible — this is a hard electrical planning requirement.

Q: What is the actual watt output of the UPX-RLNK-2000R-2, and how does that differ from the VA rating?

A: The UPX-RLNK-2000R-2 is rated at 2000VA and 1800W. The 90% power factor means 1800W of real load capacity — closer parity than many competing designs that run 0.6–0.7 power factor, which would only deliver 1200–1400W from a 2000VA unit.

Q: What rack depths does the UPX-RLNK-2000R-2 support?

A: The mounting system supports rack depths from 28 in (minimum) to 36 in (maximum). The chassis itself is 22 in deep. Standard 19-inch rack rail spacing is required.

Q: How many outlets does the UPX-RLNK-2000R-2 have, and are they individually controlled?

A: The unit has 8 NEMA 5-20R outlets. Control is at the bank level via RackLink — outlets are grouped into banks that can be switched, scheduled, or cycled independently through the network management interface.

Jerry Tildsen

The UPX-RLNK-2000R-2 is one of the few rack UPS units I'd recommend where the included network card is genuinely useful rather than a checkbox feature — the RackLink bank control is tight enough to replace a separate networked PDU in a mid-size surveillance head-end. The 1800W real-power output at a 90% power factor is what actually matters when you're calculating runtime for a 6–8 camera NVR rack; most UPS spec sheets hide a 0.6 power factor that cuts usable watts by 40%.

Technical Highlights:

• 1800W real output: At a 90% power factor on a 2000VA chassis, you get 1800W of usable capacity — plan load budgets around watts, not VA, or you'll underspec the runtime.
• Line-interactive topology: Voltage correction runs continuously without switching to battery during routine sags or surges, which keeps battery cycle counts low and extends service intervals on a unit this size.
• 48V DC bus: The dedicated 48V DC output lets you feed DC-native equipment — certain PoE midspans, access control power supplies — directly from the UPS without a secondary converter eating rack space.

Deployment Considerations:

• The NEMA 5-20P plug requires a dedicated 20A circuit — confirm with your electrician before the rack ships, especially in older facilities where 15A circuits dominate equipment room runs.
• The unit is not TAA compliant, which disqualifies it from federally funded projects or contracts with TAA-mandate language; flag this early in the quoting stage to avoid a late substitution.

This unit is the right call for integrators building out medium-density surveillance head-ends — 4–12 camera NVR racks with PoE switches and a managed edge router — where a networked PDU plus a basic UPS would otherwise consume 3–4RU and require separate management credentials. The UPX-RLNK-2000R-2 consolidates both into 2RU with a pre-installed network card, which is a real rack-space and management win in a tight IDF closet.
