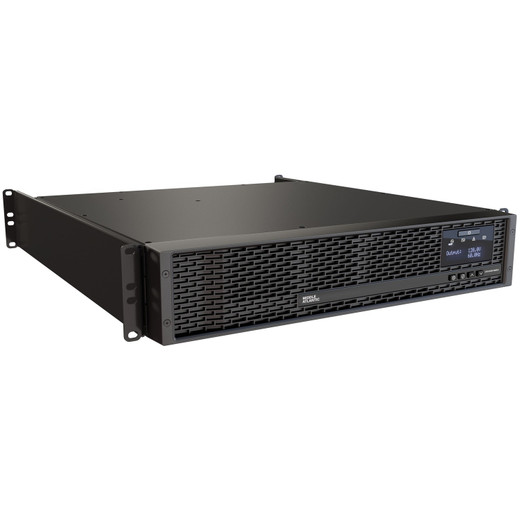

Middle Atlantic 1500VA 120V UPS Rlnk Bank Control - UPX-RLNK-1500R-2

Middle Atlantic UPX-RLNK-1500R-2 1500VA Line-Interactive UPS with RackLink Bank Control

The Middle Atlantic UPX-RLNK-1500R-2 is a 2RU rack-mount UPS rated at 1500VA/1350W, built for AV and security infrastructure racks where remote outlet control and network monitoring matter as much as backup runtime. Part of the NEXSYS UPS family, it pairs line-interactive topology with bank-level outlet switching via Middle Atlantic's RackLink platform — giving integrators granular power control without a site visit.

Overview

Line-interactive topology keeps connected equipment on conditioned, regulated 110–127 VAC output continuously — not just during outages. The built-in MOV surge protection and active voltage regulation handle the brownouts and sags that are more common than full outages in commercial installations. At 1350W true power, the UPX-RLNK-1500R-2 has enough headroom for a fully loaded NVR chassis, managed PoE switch, and ancillary control gear on a single UPS circuit.

Key Features

• 1500VA / 1350W capacity: 1350W of true power means you can load this unit fully without running into the derating gap that plagues lower-power-factor UPS units. Plan your load budget from the watt figure, not the VA.
• Bank-level outlet control via RackLink: Eight NEMA 5-15R receptacles are organized into switchable banks. Remote power cycling of individual banks means a locked-up NVR or encoder can be rebooted from a NOC without rolling a truck — a real operational savings on multi-site deployments.
• Network card included: The unit ships with a network card already installed, so SNMP monitoring, email alerts, and RackLink integration are available out of the box. No add-on card purchase, no waiting on a separate SKU.
• Line-interactive topology: Unlike standby UPS designs that switch to battery only on full outage, line-interactive continuously corrects voltage, extending battery life and protecting sensitive electronics from cumulative sag damage.
• MOV surge protection: Metal oxide varistor suppression on all outlets handles transient spikes without consuming battery capacity — the surge path and the battery path are independent.
• 2RU / 19-inch form factor: Fits standard EIA 19-inch racks at 3.46 inches tall. Mounting depth range of 22–36 inches accommodates both shallow AV enclosures and deeper server-style rack cabinets. Four mounting points provide solid mechanical engagement.
• 15A / NEMA 5-15P input: Draws from a standard 15A circuit — no dedicated 20A circuit or hardwiring required. The 6-foot cord reaches most PDU or wall-circuit configurations without an extension.
• Operating range 32°–104°F: Covers conditioned equipment rooms and warmer IDF closets. Not rated for outdoor or unconditioned environments — keep this in mind for edge deployments in non-climate-controlled spaces.
• NEXSYS battery system: The NEXSYS designation indicates Middle Atlantic's hot-swap battery architecture, allowing battery replacement without powering down the connected load — useful in 24/7 surveillance and access control environments.

Integration and Compatibility

RackLink network management integrates with Middle Atlantic's ecosystem for unified rack power monitoring. The included network card supports SNMP, making it compatible with standard NMS platforms used in enterprise and managed-service environments. The UPS and power backup category covers companion units across capacity tiers. For rack power distribution in Middle Atlantic's full lineup, this unit pairs naturally with their rack enclosures and structured wiring solutions. Integrators building out NVR-based surveillance systems should account for the combined load of recorder, storage expansion, and switching gear when sizing against the 1350W ceiling. A managed PoE switch in the same rack will typically add 100–400W depending on port loading — budget accordingly. See also the power protection planning guide for load calculation methodology.

Frequently Asked Questions

Q: What is the true watt rating of the UPX-RLNK-1500R-2, and why does it differ from the VA rating?

A: The UPX-RLNK-1500R-2 is rated at 1350W true power at a 1500VA apparent power rating, reflecting a 0.9 power factor. Size your connected load to 1350W — not 1500VA — to avoid overloading the unit.

Q: Does the UPX-RLNK-1500R-2 include a network management card, or is that a separate purchase?

A: The network card is included in the box. SNMP monitoring and RackLink remote outlet control are available immediately after installation without any additional card or license purchase.

Q: Can the batteries be replaced without shutting down connected equipment?

A: Yes. The NEXSYS battery system supports hot-swap battery replacement, allowing maintenance without powering down the connected load — an important feature for 24/7 surveillance and access control installations.

Q: What outlet configuration does the UPX-RLNK-1500R-2 use, and can individual outlets be controlled?

A: The unit provides eight NEMA 5-15R receptacles organized into switchable banks. Control is at the bank level via RackLink — individual outlets within a bank switch together. This allows rebooting specific equipment groups (e.g., all cameras vs. the NVR) independently.

Q: Is the UPX-RLNK-1500R-2 TAA compliant?

A: No. The UPX-RLNK-1500R-2 is manufactured in China and is not TAA compliant. It is not suitable for federal government procurements requiring TAA compliance.

Q: What rack depth range does the UPX-RLNK-1500R-2 support?

A: The unit mounts in racks with a usable depth between 22 inches (minimum) and 36 inches (maximum). At 16 inches deep, it fits within that range and leaves clearance for cable management in most standard enclosures.

Ted Perry

The UPX-RLNK-1500R-2 is the unit I spec when a customer needs more than basic backup — specifically when remote reboot capability is non-negotiable. The bank-level RackLink outlet control, combined with the included network card, means a frozen NVR at a remote site gets power-cycled from a browser, not a van. At 1350W true output with line-interactive topology, it handles a realistic surveillance rack load without the thermal or runtime surprises you get from undersized standby units.

Technical Highlights:

• 1350W true power output: The 0.9 power factor means nearly all rated VA is usable watts — uncommon in this class. A fully loaded 16-channel NVR with dual redundant PSUs plus a 24-port PoE switch will typically draw 600–900W, leaving meaningful headroom.
• Line-interactive topology with MOV surge protection: Continuous voltage regulation protects against the brownouts and sags that dominate commercial power events — the battery engages only for full outages, preserving battery cycle life over the unit's service life.
• NEXSYS hot-swap battery: Battery maintenance in a live rack without a maintenance window is the operational differentiator here. For 24/7 video recording systems, any planned downtime for a battery swap is a compliance or liability issue — NEXSYS eliminates that.

Deployment Considerations:

• Verify your rack depth before ordering: minimum mounting depth is 22 inches and maximum is 36 inches. Shallow AV enclosures under 22 inches won't accommodate this unit mechanically.
• The NEMA 5-15P plug limits input to 15A circuits — do not exceed 1350W connected load, and note that the unit is not TAA compliant, ruling it out for any federal or GSA procurement requiring TAA.

This unit is best positioned in multi-site commercial security deployments — retail chains, campus access control networks, or managed-service integrator racks — where remote power management eliminates truck rolls and NEXSYS battery serviceability keeps the system running through the maintenance cycle.
