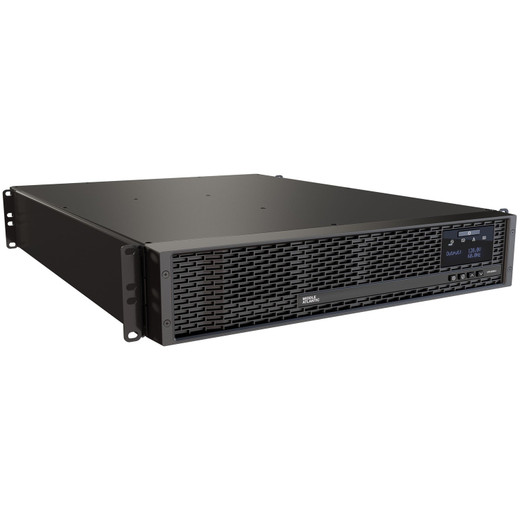

Middle Atlantic UPX-2000R-2 2000VA Line-Interactive Rack UPS with Bank Outlet Control
The Middle Atlantic UPX-2000R-2 is a 2000VA / 1800W line-interactive rack UPS built for AV systems, security infrastructure, and IT closets where controlled power cycling and runtime assurance matter more than raw outlet count. Part of the NEXSYS UPS platform, it mounts in 2U of rack space, accepts a standard NEMA 5-20P connection, and delivers eight NEMA 5-20R receptacles organized in bank-controlled groups — so you can reboot a single load bank without cutting power to the entire rack. For a deeper look at the full Middle Atlantic power and rack infrastructure line, the brand page covers the complete portfolio.
Key Features
- 2000VA / 1800W capacity at a 0.9 power factor: The 1800W real-power rating is what actually matters for load planning. At a 0.9 power factor, you can run a fully populated 1U NVR, a managed PoE switch, and associated edge devices without approaching the ceiling — leaving headroom for inrush current on startup. Size to 70–80% of rated wattage for reliable runtime.
- Line-interactive topology: The UPX-2000R-2 uses a line-interactive design, meaning the inverter continuously conditions voltage (correcting sags and surges without switching to battery) rather than only engaging on full outage. For rack-mount UPS applications in commercial AV and security, this translates to fewer nuisance battery draw-downs and longer battery service life compared to standby-topology units.
- Bank outlet control over 8 NEMA 5-20R receptacles: Outlets are grouped into banks you can control independently. This is the feature that separates this unit from a basic UPS — you can remotely sequence power-on order (critical for NVR-before-cameras workflows) or cycle a locked-up device without a truck roll to the rack closet.
- 48 VDC output: Beyond the standard AC output (110–127 VAC), the unit provides a 48 VDC rail — useful for directly powering DC-native devices or maintaining a 48V bus on hybrid AC/DC rack builds without a separate converter.
- Network-enabled without a network card installed: The UPS supports network management capability, but no network card ships in the box. Budget for a compatible network management card if remote monitoring, SNMP traps, or automated graceful shutdown of connected servers is a requirement. Without the card, local bank control is the primary management interface.
- MOV surge protection: Metal oxide varistor surge clamping on all outlets provides a baseline layer of transient protection — relevant in commercial installations where panel-level surge suppression may be inconsistent or absent.
- 20A NEMA 5-20P plug on a 6 ft cord: The 5-20P plug requires a dedicated 20A circuit. This is a hard infrastructure requirement — a standard 15A duplex outlet will not accept this plug. Verify circuit availability before rack deployment. The 6 ft (1.8 m) cord is standard for rack closet PDU reach; measure to your nearest 20A receptacle.
- 2U rack footprint, 22-inch depth, 63 lbs: At 2 rack units, the UPX-2000R-2 fits cleanly into standard 4-post equipment racks with mounting depths between 28 in and 36 in. The 63 lb unit weight means you'll want two people for installation — confirm your rack rail load rating before sliding it in. Shipping weight is 70.1 lbs.
- Operating temperature 32°–104°F (0°–40°C): This is a standard commercial-environment rating. Do not install in unventilated enclosures or environments exceeding 40°C — UPS battery life degrades sharply above rated temperature, and the NEXSYS chemistry is calibrated to this range.
Integration and Compatibility
The UPX-2000R-2 pairs naturally with network video recorders, managed PoE switches, and access control head-end equipment in security rack builds. The NEMA 5-20R receptacles accept any standard 5-15P or 5-20P plug (5-15P to 5-20R adapters are widely available). The 20A input circuit requirement means this unit is best suited to dedicated AV/IT closet circuits, not shared office branch circuits.
For installations requiring network-based monitoring or UPS integration with a VMS shutdown manager, a compatible network management card must be added separately — the unit's network-enabled architecture supports it, but the card is not included. Review Middle Atlantic's NEXSYS accessory lineup for compatible cards. If you're planning a larger rack power management strategy across multiple enclosures, the NEXSYS platform supports scaled deployments with consistent management interfaces.
Surge protection uses MOV-based clamping, which is suitable for most commercial closet environments. For sites with chronic power quality issues (frequent brownouts, high harmonic distortion), consider supplementing with upstream power conditioning. The line-interactive topology handles moderate voltage variance natively, but persistent out-of-spec utility power warrants a dedicated line conditioner upstream. FCC certification (CSA/FCC listed) and RoHS compliance are verified for this SKU.
Frequently Asked Questions
Q: What is the actual wattage capacity of the UPX-2000R-2, and how should I size my load?
A: The UPX-2000R-2 is rated at 1800W (2000VA at a 0.9 power factor). For reliable runtime and to account for inrush current, size your connected load to no more than 70–80% of rated wattage — approximately 1,260–1,440W of actual draw.
Q: Does the UPX-2000R-2 include a network management card?
A: No. The unit is network-enabled (supports a network card) but no network card is included in the box. A compatible network management card must be purchased separately if you need remote monitoring, SNMP alerts, or automated graceful shutdown.
Q: What circuit type does the UPX-2000R-2 require?
A: It requires a dedicated 20A circuit. The unit ships with a NEMA 5-20P plug, which physically cannot connect to a standard 15A duplex outlet. Confirm a 20A circuit is available at the installation location before deploying.
Q: Is the UPX-2000R-2 TAA compliant?
A: No. The UPX-2000R-2 is manufactured in China and is not TAA compliant. If your project has TAA or Buy American requirements, this unit does not qualify.
Q: What rack depth is required for the UPX-2000R-2?
A: The unit requires a rack with a usable mounting depth between 28 inches (minimum) and 36 inches (maximum). The unit itself is 22 inches deep and occupies 2U of vertical rack space.
Q: What outlet type and count does the UPX-2000R-2 provide?
A: Eight NEMA 5-20R receptacles arranged in bank-controlled groups. Bank control lets you cycle or sequence individual outlet groups independently — useful for rebooting specific loads without cutting power to the entire rack.
The UPX-2000R-2 is one of the more practical picks in the NEXSYS line specifically because of the bank outlet control — at 1800W real power across eight 5-20R receptacles, you have enough capacity to carry a full security head-end (NVR, managed PoE switch, access control panel, and a workstation) and still reboot individual load banks without yanking the whole rack. That's the feature integrators under-appreciate until the first time they need to remotely cycle a locked NVR at 2am.
Technical Highlights:
- 1800W / 2000VA at 0.9 PF: Real-power headroom for multi-device security racks. Size connected loads to 1,260–1,440W to maintain runtime margins and absorb startup inrush from PoE switches and NVR drives spinning up simultaneously.
- Line-interactive topology: Continuous voltage conditioning means the inverter is always in the circuit correcting sags — the battery doesn't engage until utility drops below the regulation window. In commercial installations with inconsistent utility voltage, this extends battery service intervals compared to standby designs.
- 48 VDC output alongside 110–127 VAC: The dual-voltage output architecture supports hybrid rack builds where DC-native devices can be powered directly from the 48V rail, eliminating a separate DC converter and its associated failure point.
Deployment Considerations:
- The NEMA 5-20P plug is a hard infrastructure gate — confirm a dedicated 20A circuit is present at the rack location before the unit ships to site. Retrofitting a 20A circuit after the fact is a common and avoidable project delay.
- At 63 lbs, this is a two-person lift into the rack. Verify your 4-post rack rails are rated for the weight at the target mounting depth (28–36 in range), and plan the install sequence so the UPS goes in before lighter gear above it.
This unit earns its place in permanent security and AV infrastructure closets — specifically rack builds where power sequencing, bank-level reboot capability, and a clean 1800W budget matter more than the lowest-cost UPS on the shelf. It is not the right call for lightweight or temporary deployments where a basic standby UPS would do.
