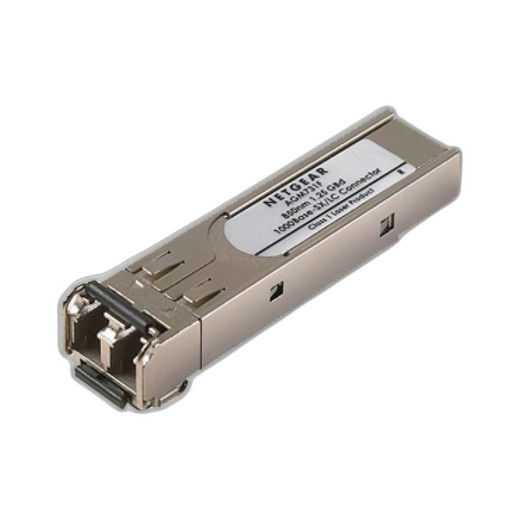

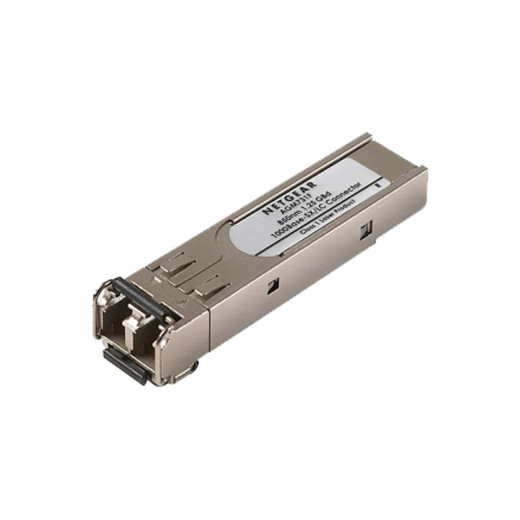

NETGEAR AGM731F 1000BASE-SX SFP Transceiver Module
Overview
The NETGEAR AGM731F is a 1000BASE-SX SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet deployments over multimode fiber. This mini-GBIC module plugs directly into compatible switch and router ports, converting electrical signals to optical for fiber-based backbone and campus connectivity. The AGM731F operates in industrial temperature ranges, making it suitable for warehouse automation, IP surveillance infrastructure, and enterprise network installations where environmental stability matters.
Key Features
- 1 Gbps Gigabit Ethernet speed: Delivers full Gigabit throughput over multimode fiber, sufficient for bandwidth-intensive surveillance streams (H.264/H.265 video, access control data, sensor telemetry) without bottlenecks at the infrastructure layer. No speed degradation across fiber runs typical in distributed warehouse or campus deployments.
- 1000BASE-SX standard: Supports short-wavelength optical transmission over OM1, OM2, or OM3 multimode fiber — the most common fiber type in existing building infrastructures. Distances up to 550 meters on OM3, making it practical for site-wide backbone connections without requiring single-mode fiber and higher-cost infrastructure.
- Mini-GBIC (SFP) form factor: Compact hot-swappable design means you can upgrade or replace it without powering down the switch or router. Critical for 24/7 surveillance and warehouse automation systems where downtime is costly. Install or swap in seconds without port blocking or cable rework.
- Industrial operating temperature range: Rated for industrial environments, meaning the module will not thermal throttle or fail in non-climate-controlled network closets, outdoor junction boxes, or warehouses subject to seasonal temperature swings. Reliability matters when that transceiver sits in a rooftop cabinet feeding camera feeds.
- Unmanaged operation: No configuration, firmware updates, or management overhead. Plug in, connect fiber, and it works. Reduces deployment complexity compared to managed optical equipment and eliminates a potential point of failure in security-critical networks.
- 5-year warranty: Manufacturer-backed coverage provides confidence in optical infrastructure longevity — transceiver failures can be silent and hard to diagnose, so warranty support is genuinely valuable for incident response and replacement logistics.
Integration & Compatibility
The AGM731F is designed as a drop-in module for NETGEAR switches and routers with SFP ports. Verify your switch or router slot specifications before ordering — not all Gigabit switches include optical SFP ports as standard. When planning network switch infrastructure for distributed IP cameras or sensor networks, confirm your core switch or firewall has at least one free SFP slot; this transceiver is the bridge between electrical copper Ethernet and fiber backbone.
For warehouse automation or surveillance, fiber connectivity isolates your core network from ground loops and electromagnetic noise common near electric motors, conveyor systems, and welding equipment. This AGM731F handles that isolation cleanly, delivering stable optical backhaul without requiring expensive shielded cabling or ferrite filters.
Deployment Context
Common scenarios include: (1) connecting a rooftop or perimeter camera building to a central surveillance NVR via fiber backbone, (2) linking warehouse segment switches across a large facility to reduce cabling and noise immunity, (3) extending network reach beyond the 100-meter limitation of copper Gigabit Ethernet. In each case, the AGM731F AGM731F module is a passive, reliable optical-electrical converter that adds no latency, no processing overhead, and no single point of software failure.
Considerations
Fiber termination and connector quality matter. SFP modules are sensitive to dust and misalignment — dirty fiber connectors or improper mating can cause packet loss and intermittent link failures that are tedious to troubleshoot. Invest in proper fiber cleaning kits and trained technicians if you are not already familiar with multimode fiber installation. Additionally, multimode fiber distance is wavelength-dependent; the AGM731F supports the standard 850nm short-wavelength window but will not work with single-mode fiber transceivers or wavelength-division multiplexing (WDM) systems without additional equipment.
Frequently Asked Questions
Q: What is the maximum fiber distance supported by the NETGEAR AGM731F?
A: The AGM731F supports 1000BASE-SX transmission over multimode fiber. Maximum distance is approximately 550 meters on OM3 fiber, 220 meters on OM2, and 160 meters on OM1. Actual distance depends on fiber quality and connector cleanliness.
Q: Does the AGM731F require any configuration or management interface?
A: No. The AGM731F is an unmanaged transceiver — it operates as a passive optical-to-electrical converter. Simply insert it into an available SFP port on your switch or router and connect your fiber cable. No CLI, SNMP, or web interface required.
Q: Can I use the AGM731F in a non-NETGEAR switch?
A: The AGM731F is a standards-compliant 1000BASE-SX SFP module. Many third-party switches with SFP ports will accept it, but compatibility varies. Verify that your equipment supports standard SFP form factor and 1000BASE-SX wavelength (850nm) before ordering.
Q: What is the warranty on the NETGEAR AGM731F?
A: The AGM731F includes a 5-year manufacturer warranty covering defects in materials and workmanship.
Q: Is the AGM731F suitable for outdoor network closets or non-climate-controlled environments?
A: Yes. The AGM731F is rated for industrial operating temperatures, making it suitable for rooftop cabinets, outdoor junction boxes, and warehouse environments where temperature fluctuation is common.
The NETGEAR AGM731F is a straightforward optical transceiver that does one job well: it converts Gigabit electrical signals to 1000BASE-SX multimode optical signals and back. In surveillance and warehouse automation, that matters because fiber isolates noisy industrial environments from your core network. No ground loops, no EMI coupling, and distances to 550 meters on decent OM3 fiber — capabilities that copper Ethernet cannot match without expensive active infrastructure.
Technical Highlights:
- 1 Gbps Gigabit throughput over multimode fiber: Sufficient for simultaneous H.264/H.265 video streams from dozens of IP cameras or sensor data from warehouse automation systems. No optical-layer bottlenecks; throughput stays consistent across typical campus or large-building fiber runs.
- Industrial temperature rating: AGM731F operates reliably in non-climate-controlled environments — a real advantage over consumer-grade transceivers that may thermal throttle or fail in rooftop cabinets or outdoor enclosures common in surveillance deployments.
- Standard 1000BASE-SX form factor: Plug-and-play with any switch or router sporting an SFP slot. No firmware, no management overhead, no single point of software failure. One less thing to worry about in a 24/7 operation.
Deployment Considerations:
- Multimode fiber requires meticulous connector cleanliness. A single speck of dust on a ferrule can cause packet loss and intermittent link failures that are tedious to isolate. Budget for proper fiber cleaning kits and trained installation staff.
- Distance limits are wavelength and fiber-grade dependent. The AGM731F does not support single-mode fiber or wavelength-division multiplexed (WDM) networks without additional equipment. Confirm your fiber plant before committing to this transceiver.
- Fiber termination quality directly impacts link stability. Poor splices, tight bend radii, or low-grade multimode cable can introduce attenuation that degrades signal quality over longer runs. Order fiber from reputable suppliers and use certified installers for critical backbone routes.
Choose the AGM731F when your surveillance or warehouse backbone spans more than 100 meters, when EMI from industrial equipment is a genuine concern, or when you need fiber's superior distance and noise isolation without the cost of single-mode infrastructure and active optical equipment. For small office environments with short Ethernet runs and no electrical interference, copper Gigabit Ethernet is simpler and cheaper.
