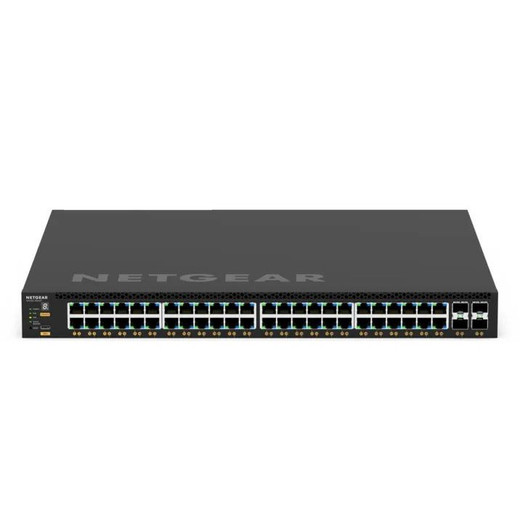

NETGEAR GSM4352PB-100NES 48-Port PoE+ Managed Switch
Overview
The NETGEAR GSM4352PB-100NES (often searched as GSM4352PB 100NES) is a 48-port stackable managed switch designed for deployments where PoE power distribution and high-speed uplink redundancy matter. Built on the M4300 platform, this unit combines 48 gigabit PoE+ ports with two 10G uplink options, making it suitable for medium-to-large enterprise networks, IP surveillance systems, and warehouse automation environments where powered device density and layer-3 routing capability drive infrastructure decisions.
Key Features
- 48 Gigabit PoE+ Ports: Each port can supply up to 30W of power at the source — enough to run powered ceiling-mounted IP cameras, access points, and networked sensors simultaneously without requiring separate PSU infrastructure at endpoints. On a typical 24-camera deployment, this eliminates dozens of individual power adapters.
- 1000W Power Supply: The integrated 1000W PSU establishes a realistic power budget for a full PoE load across all 48 ports during peak usage. Unlike switches with undersized PSUs, this means you're not choosing between full port density and full power availability.
- Two 10G Uplink Options: Two dedicated 10G ports (split between GBASE-T and SFP+ fiber) deliver 20 Gbps combined uplink bandwidth. For camera-heavy deployments using H.265 or multi-bitrate streaming, this prevents the core uplink from becoming a bottleneck as you scale beyond 20–30 concurrent IP devices.
- Managed Switching with Layer 3 Routing: Full SNMP, CLI, and web GUI management enable VLAN segmentation, QoS policy enforcement, and network isolation — critical when you need to isolate camera traffic from office IT or segregate warehouse automation networks by functional zone.
- Stackable Architecture: The GSM4352PB-100NES supports stacking with other M4300 switches, allowing you to grow port count and PSU capacity in synchronized increments rather than deploying separate unmanaged switches that can't coordinate power or traffic policies.
- Industrial Operating Temperature Range: Rated for industrial ambient conditions, this switch tolerates wider temperature swings than commercial-grade alternatives — relevant if you're deploying in non-climate-controlled warehouse spaces, loading docks, or outdoor cabinets with minimal thermal control.
Integration and Deployment Context
The GSM4352PB-100NES integrates directly into any managed switch deployment where VLAN-based network segmentation and centralized power distribution are required. Pair it with IP cameras rated for 802.3af or 802.3at PoE to avoid over-provisioning low-power endpoints. In surveillance and access control infrastructure, the combination of managed switching, sufficient power, and gigabit uplinks creates a stable foundation for growth. For warehouse automation, use the VLAN and QoS capabilities to isolate robot navigation networks, barcode scanner traffic, and building management systems onto separate logical networks — reducing collision domains and improving fault isolation.
When to Choose a Different Model
If your deployment requires more than two 10G uplinks or SFP+ fiber expansion for longer campus runs, consider higher-port-density variants in the M4300 family with four or more 10G options. If you need unmanaged simplicity and have no VLAN or QoS requirements, a fully unmanaged Ethernet switch will reduce complexity and cost. If PoE is not needed on every port, a hybrid model (PoE on some ports, standard Ethernet on others) may reduce power supply strain and lower upfront cost.
Warranty and Support
The GSM4352PB-100NES includes a 5-year limited warranty covering hardware defects and typical enterprise support response terms.
Frequently Asked Questions
Q: What is the maximum PoE power budget available across all 48 ports?
A: The 1000W PSU limits total simultaneous PoE delivery. With 48 ports rated at 30W each (max 1440W theoretical), the actual budget is 1000W. Plan for roughly 20–25 fully powered devices (cameras, APs, PoE sensors) at rated power before requiring additional management or priority QoS policies.
Q: Can the GSM4352PB-100NES stack with other NETGEAR switches?
A: Yes. The GSM4352PB-100NES supports stacking with other M4300 series switches using dedicated stacking ports, allowing unified management and power coordination across multiple units.
Q: Does the GSM4352PB-100NES support VLAN tagging?
A: Yes. As a managed switch, it supports 802.1Q VLAN tagging and trunk configuration, enabling network segmentation for surveillance, automation, and corporate traffic on the same physical infrastructure.
Q: What uplink options are available for connecting to a core network?
A: Two 10G ports: one 10GBASE-T (RJ-45 copper) and one SFP+ (for fiber or direct attach copper). This allows flexibility in choosing fiber for longer distances or copper for short core runs.
Q: Is the GSM4352PB-100NES suitable for outdoor or high-temperature deployments?
A: It is rated for industrial operating temperatures, making it more tolerant of non-climate-controlled spaces than commercial-grade switches. However, for direct outdoor exposure without enclosure, verify mounting location and thermal management with the manufacturer.
Q: What management interfaces are available?
A: Web GUI, CLI (command-line), and SNMP for monitoring and remote configuration. This allows integration with network management platforms and straightforward troubleshooting in the field.
The GSM4352PB-100NES is a densely-packed PoE platform that shines in mid-scale deployments where you need to avoid power-supply sprawl and maintain unified management. The 1000W PSU is the real gating factor here — it's generous enough for realistic mixed-load scenarios (24–30 concurrent powered devices) without forcing you to artificially limit port usage or segment PoE across separate switches.
Technical Highlights:
- 1000W PoE Budget: Sufficient for roughly 25–30 fully-powered endpoints (IP cameras, APs, sensors) simultaneously, eliminating the need to choose between port density and power availability on smaller-PSU alternatives.
- Dual 10G Uplinks (20 Gbps combined): Two independent 10G paths (one copper, one fiber-capable SFP+) prevent a single uplink from bottlenecking multi-camera or high-volume automation traffic — meaningful when you're scaling beyond 20–30 concurrent IP devices.
- Managed Switching with Full VLAN and QoS: Layer 3 routing, SNMP, CLI, and web GUI enable network isolation by function (cameras on one VLAN, automation on another, office IT on a third) — critical for fault containment and policy enforcement in mixed-use deployments.
Deployment Considerations:
- The 1000W PSU is a hard ceiling. On a fully loaded 48-port deployment, you cannot exceed that budget regardless of port count — budget accordingly if every single port will draw 25W+ simultaneously.
- Stacking capability is real and valuable, but requires planning: stacking cables and coordination across multiple units add complexity to initial provisioning. Single-unit deployments are simpler if you don't need the scale.
- Industrial temperature rating makes this suitable for non-climate-controlled spaces, but confirm your cabinet or mounting location can maintain that operating range; a switch in direct sunlight or uninsulated outdoor box will exceed specifications.
The GSM4352PB-100NES is a practical fit for enterprise surveillance networks (30–50 cameras), warehouse automation with mixed sensor/device types, and multi-tenant or multi-zone deployments where VLAN-based isolation prevents crosstalk. Avoid it if you need unmanaged simplicity, or if you have a clear requirement for more than two 10G uplinks — in those cases, look to higher-density M4300 variants.
