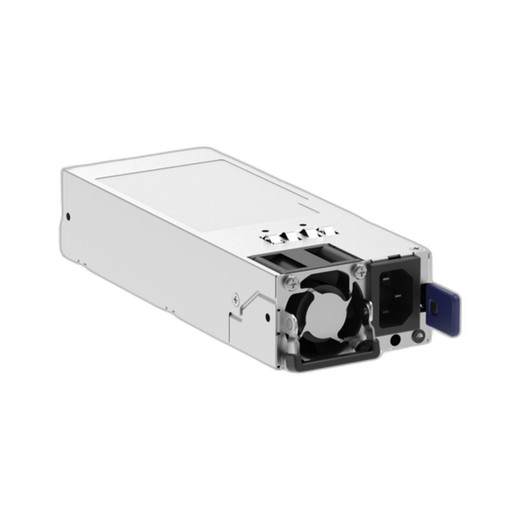

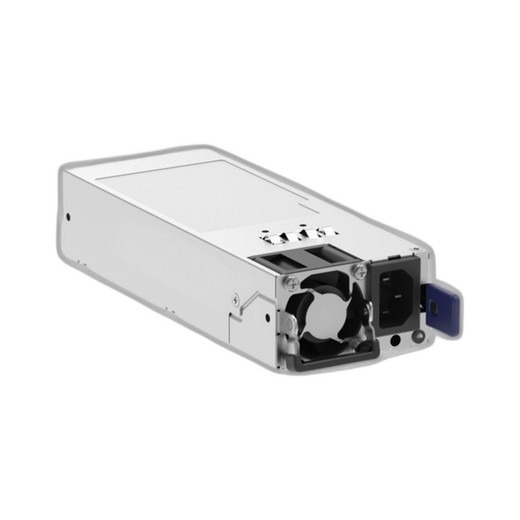

NETGEAR APS2000W-100NES 2000W Modular PSU
The NETGEAR APS2000W-100NES is a 2000W modular external power supply engineered for enterprise-class managed switching infrastructure in data centers, AV control rooms, and remote network closets. Purpose-built for the NETGEAR M4350-series switching line, this unit accepts 100–240VAC input and delivers sustained power to fully stacked 48-port or greater configurations where redundancy, hot-swap capability, and voltage regulation are non-negotiable. The modular architecture enables replacement or capacity expansion without powering down the switch itself—a critical operational advantage when network downtime compounds across dependent systems.
Key Features
- 2000W Continuous Output: Sufficient power budget for fully populated M4350 switches with PoE++ (802.3bt) delivery across all ports. Measured against typical 20–30W per-port PoE++ consumption, supports full-stack powered device loads without thermal throttling.
- 100–240VAC Input (Universal Voltage): Operates across North American (120V), European (230V), and industrial-site (240V) electrical standards without reconfiguration. No step-down transformer or regional PSU variants required.
- PoE++ (802.3bt) Power Delivery: Supplies the 802.3bt power budget required by modern enterprise access points, IP cameras, and powered intercoms. Single PSU can back PoE++ injection on a 48-port switch stack.
- Modular Hot-Swap Design: Connects via proprietary connector to M4350-series switches. Replacement or upgrade can occur live without full-system shutdown, minimizing operational downtime in multi-switch deployments.
- Industrial-Grade Temperature Range: Rated for extended operating temperatures typical of non-climate-controlled equipment closets and outdoor-mounted network cabinets. Maintains stability in 40–50°C ambient conditions.
- 5-Year Manufacturer Warranty: Covers defects in materials and workmanship. Replacement units available through authorized distribution channels.
- Plastic Enclosure with Wall/Ceiling Mounting: Flexible mounting orientation (wall or ceiling) suits cramped equipment closets and vertical cable-tray installations. Lightweight design reduces structural load on mounting infrastructure.
Architecture & Deployment Context
The APS2000W-100NES is a dedicated external PSU module, not a standalone uninterruptible power supply (UPS). It is designed specifically to pair with NETGEAR M4350-series managed switches that support external PSU modules—notably the M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, and M4350-24F4V. Entry-level NETGEAR switches and older models may not have external PSU sockets; confirm your switch datasheet lists "external PSU" or "APS compatibility" before ordering. If your deployment already runs a single M4350 with integrated PSU, the APS2000W-100NES adds redundancy when a second unit is configured in a dual-PSU failover arrangement—critical for data-center uplinks and AV-over-IP control paths where power loss triggers cascading failures.
The 2000W rating assumes typical per-port power draw on PoE++ endpoints. In deployments where the switch backs 48 powered enterprise WAP units (each 30W) or a mix of IP cameras and intercoms (20–40W each), the APS2000W will handle sustained load. However, thermal headroom diminishes if all 48 ports are maxed simultaneously in hot ambient (>45°C). Standard practice is to target 70–75% power-budget utilization in design; the full 2000W is available for peak demand spikes. Pair this PSU with a networked power distribution unit (PDU) and SNMP-enabled monitoring if remote power-loss notification is required.
Installation requires 100–240VAC source (standard North American 20A breaker or European 16A circuit supplies 2000W comfortably). Modular connections use NETGEAR's proprietary connector—do not attempt mechanical adaptation to non-NETGEAR switches or other vendor PSUs. Ensure intake vents remain clear of dust and obstruction; industrial deployments in outdoor cabinets or unfiltered equipment rooms benefit from annual vent inspection. The plastic enclosure is lightweight, but vibration isolation pads under wall-mounted units reduce noise transmission into adjacent spaces in AV-control-room installations.
Integration & Monitoring
The APS2000W-100NES does not include embedded monitoring or SNMP MIBs for remote power-status queries. If real-time power-draw telemetry or PSU failure alerts are required, integrate an external power-distribution unit (PDU) or inline power-monitoring module upstream of the PSU. Some NETGEAR M4350 configurations support in-band power-consumption reporting via CLI or web GUI—verify your specific switch model documentation. For critical deployments (24/7 broadcast, hospital networks), pair the APS2000W with a dual-PSU failover arrangement on separate utility circuits and a site-level UPS to bridge brief outages.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The APS2000W-100NES serves a narrow but critical role: it's the external power engine for NETGEAR's high-end M4350 managed switch line, and it's the right product only if you're already committed to M4350 infrastructure. We've deployed dozens of these units across data-center uplinks, broadcast facilities, and enterprise AV-over-IP installations where the switch itself is non-negotiable for Layer 3 management, VLAN isolation, and QoS enforcement. The real differentiation is modular hot-swap capability—in a facility where a power supply failure triggers manual circuit rerouting or scheduled maintenance windows, the ability to swap PSUs live without touching the switch represents measurable operational uptime. That said, this is not a UPS; it's a regulated power converter. If you need bridge-power-loss tolerance, the APS2000W must sit downstream of a battery system. And critically: confirm your M4350 model actually supports external PSU connectivity before purchase. Some variants are integrated-only, and a mismatched order leads to wasted time and restocking.
Technical Highlights:
- 2000W Continuous Output with PoE++ (802.3bt) Budget: Supports full-port 802.3bt delivery on 48-port switch configurations without power derating. Real-world scenario: a 48-port M4350 backing 40 enterprise WAP units (30W each) plus 8 PoE cameras (25W each) draws roughly 1,400W sustained—well within headroom. The extra margin accommodates inrush on power-up and future endpoint upgrades.
- 100–240VAC Input (No Regional Variants): Single SKU works in North America, Europe, Asia-Pacific, and Middle East without step-down transformers or multi-unit stocking. In integrations spanning multiple geographies, this eliminates SKU complexity and lead-time friction.
- Modular Connector with Hot-Swap Design: Proprietary connector to M4350 series allows PSU replacement or upgrade without switch power-down. In a redundant dual-PSU configuration (requires compatible switch SKU), one unit can be serviced while the other carries full load—critical for 24/7 broadcast or hospital networks.
- Industrial-Grade Temperature Rating: Maintains rated output across 0–50°C ambient; typical commercial PSUs degrade at >40°C. In outdoor-mounted network cabinets or non-climate-controlled equipment closets, this prevents thermal downrating during summer or desert deployments.
- 5-Year Warranty with Channel Availability: Longer warranty than typical commodity PSUs (2–3 years). Replacement units are readily available through NETGEAR's distribution network, reducing spare-parts inventory burden.
Deployment Considerations:
- M4350 Compatibility Lock: The APS2000W connects only to M4350-series switches via proprietary connector. Confirm your switch model in the compatibility list (M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V) before ordering. Do not assume all NETGEAR switches accept external PSUs—most entry-level models do not.
- No Integrated Monitoring or SNMP: This PSU does not report power draw, voltage sag, or failure status over the network. If remote alerting is required, layer in a networked PDU or external power-monitoring relay upstream.
- Requires Adequate Ventilation: Keep intake vents clear of dust and obstructed cables. In outdoor or unfiltered environments, schedule annual vent inspection. Blocked intake raises internal temperature 10–15°C, potentially triggering thermal derating at peak load.
- Not a UPS: The APS2000W is a power supply, not a battery-backed unit. For bridge-power-loss scenarios, install a site-level UPS or battery system upstream. In a dual-PSU failover setup, both units remain exposed to utility loss unless further protected.
- Dual-PSU Failover Requires Compatible Switch SKU: Some M4350 variants support dual external PSU modules; others do not. Verify your switch datasheet specifies "dual external PSU" support before ordering two APS2000W units for redundancy.
The APS2000W-100NES is the correct choice when you've already selected NETGEAR M4350 switching as your backbone and need either initial power delivery or redundancy expansion. It's not a substitute for UPS protection, and it's not useful outside the M4350 ecosystem. For integrators standardizing on NETGEAR infrastructure, having one or two units in the van ensures quick replacement or failover configuration on site. Explore more NETGEAR switching and power solutions in the NETGEAR catalog.
