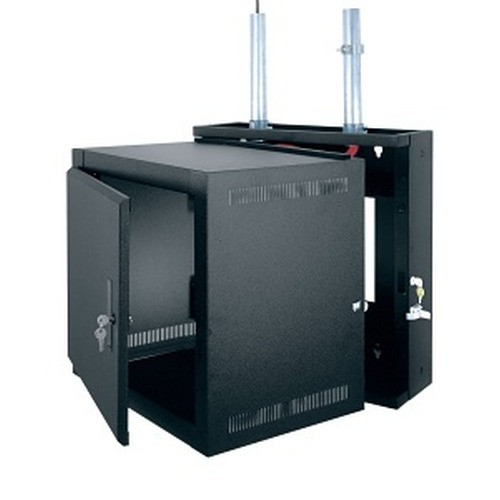

Middle Atlantic EWR-10-17SD 10U Pivoting Wall Rack with Solid Front Door
Overview
The Middle Atlantic EWR-10-17SD is a 10-space (10U) economical sectional wall rack built for installations where floor space is not available and a compact, enclosed equipment footprint is required. At 17 inches of total depth with 15 inches of usable depth, the EWR-10-17SD accommodates most NVRs, managed PoE switches, patch panels, and access control panels without projecting excessively from the wall. The solid front door keeps equipment secured and out of sight — useful in public corridors, IT closets, or retail back-of-house areas where exposed rack equipment is not acceptable. With a UL-rated load capacity of 150 lbs and a black wrinkle powder coat finish, this unit handles real-world NVR and network switch deployments without rack flex or cosmetic compromise. TAA compliant, making it eligible for federal and government procurement projects. The EWR-10-17SD ships at 66 lbs — plan for a two-person wall mount.
Compatibility
The EWR-10-17SD uses standard 10-32 threaded rack rails, compatible with the vast majority of 19-inch rackmount equipment across the Middle Atlantic rack and enclosure line and third-party devices. The 15 inches of usable depth fits standard 1U and 2U PoE network switches, 1U–4U NVRs, and 1U patch panels typically used in surveillance system head-end builds. Units deeper than 15 inches will not seat properly — verify equipment depth before ordering. The 10U height (17.5 inches usable) suits compact head-end builds with 4–8 cameras: a 4-channel NVR, a PoE switch, a patch panel, and a UPS can all fit within this footprint. For larger deployments requiring more rack space, consider stepping up to a deeper or taller enclosure in the Middle Atlantic EWR family.
Installation Notes
Overall dimensions are 23.38 in W × 24.5 in H × 17 in D — confirm wall stud spacing and clearance before mounting. The unit weighs 69 lbs unloaded; mount to structural studs or use a rated wall anchor system capable of supporting the combined rack and equipment load (up to 150 lbs UL rated). Country of origin is Mexico; CSA standard listed as TAA compliant. No rack ears or cage nuts are included per the source evidence — verify accessory needs against your specific rackmount equipment.
