Middle Atlantic 12 Space 15IN. Deep Econo Wallrack with Solid Front Door EWR Series - EWR-12-17SD

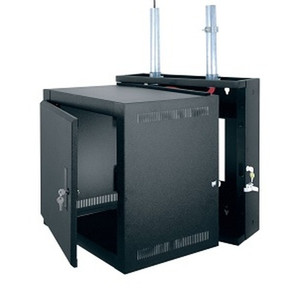

Middle Atlantic EWR-12-17SD 12U Pivoting Wall Rack with Solid Front Door

Overview

The Middle Atlantic EWR-12-17SD is a 12-space (12 RU) wall-mount rack designed for equipment rooms, server closets, and security head-end installations where floor space is unavailable but a solid front door and full rack depth are required. With 15 inches of usable depth and a 150 lb UL-rated load capacity, the EWR-12-17SD handles most NVR, patch panel, and AV distribution builds without needing a floor-standing enclosure. The pivoting design lets the entire rack swing away from the wall — critical when rear cable management or device servicing must happen without pulling equipment. Finish is a textured black wrinkle powder coat; rack rails are threaded 10-32 for standard rack screws. TAA-compliant for GSA and federal procurement.

Compatibility

The 10-32 threaded rail pattern is the standard for rack-mount security and AV equipment — compatible with 1U through 4U NVRs, patch panels, KVM switches, managed PoE switches, UPS units, and cable management accessories from Middle Atlantic's full rack accessory line (blanks, cable managers, power strips). At 15 inches of usable depth, verify your deepest device before specifying: most 1U NVRs and managed switches fit easily; high-density UPS units with rear battery modules may be tight. The enclosure width of 23.38 inches is standard for a wall-mount rack rough-in. For larger deployments requiring more rack units or deeper equipment, see Middle Atlantic's EWR series in higher RU counts or deeper variants. For installations pairing this rack with a network video recorder build-out, confirm the NVR depth against the 15-inch usable figure, not the 17-inch overall depth.

Installation Notes

Overall height is 28 inches (71.1 cm) and overall width is 23.38 inches (59.4 cm) — confirm stud pattern or blocking before ordering. Product weight is 75 lbs (34 kg) unloaded; add up to 150 lbs of rack gear for a worst-case wall load of 225 lbs. Wall blocking or direct-to-stud mounting into two or more 16-inch-on-center studs is strongly recommended. The pivot mechanism requires clearance on the hinge side; leave at least 24 inches of swing clearance to the nearest obstruction. Ships at 70 lbs — plan for two-person lift and install. Country of origin is Mexico; TAA-compliant for government and GSA procurements.
