Comnet 10-bit Digitally Encoded Short-Haul Video + Bi-Directional Data + - FVT10D1A2C1M1

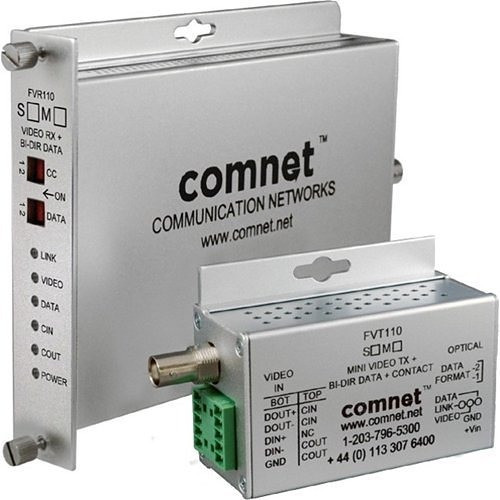

Comnet FVT10D1A2C1M1 10-Bit Digital Short-Haul Transmitter

Overview

The Comnet FVT10D1A2C1M1 is a fiber-optic transmitter designed for integrated security system deployments where you need to move video, data, audio, and control signals over a single optical strand. This is a single-direction video transmitter paired with bidirectional data and audio channels—built for installations where camera or sensor signals originate at one location and must reach a central control point or monitoring facility without degradation over distance. The 10-bit digital encoding maintains signal fidelity across long fiber runs, eliminating the noise and bandwidth penalties of analog modulation.

Key Features

• 10-Bit Digital Video Encoding (EIA RS-250C): Delivers crisp, low-noise video over extended fiber distances. Versus analog modulation, this encoding standard prevents hum, signal drift, and bandwidth loss—critical when your camera is hundreds of feet from the control room and analog would introduce visible artifacts.
• Single Fiber Deployment: Consolidates video, data, audio, and contact closure onto one optical link. Reduces fiber infrastructure costs and simplifies cable runs in retrofit or constrained-pathway installations.
• Bidirectional Data (RS232, RS422, RS485): Supports full duplex serial communication for PTZ camera control, sensor telemetry, or alarm signaling. All three serial standards are supported, so you're not locked into a single protocol—PTZ systems, access control data, or building automation protocols all fit within the same fiber link.
• Two Bidirectional Audio Channels (20 Hz–18 kHz, 600 Ohm impedance, +6 dBm output): Handles talk-back and intercom audio without a separate audio codec. The 20 Hz–18 kHz response covers speech and alarm tones; 600 Ohm impedance matches standard audio distribution. +6 dBm output level is sufficient for security intercom and voice alarm systems with minimal additional amplification.
• Contact Closure Channel: One bidirectional contact closure circuit for alarm relay signals, door sensor integration, or emergency button feedback. Allows the remote facility to trigger local relays or receive status from distant contacts without dedicated hardwire runs.
• Bi-Color LED Indicators (Red/Green): Provides immediate visual status of fiber link and channel health. Red/Green indication tells you at a glance whether the link is up, degraded, or down—no need to log into software to confirm optical connectivity.
• NEMA TS-1/TS-2 Operating Temperature Rating: Certified for outdoor and industrial environments. The TS-1/TS-2 rating confirms operation across the full range of North American seasonal extremes (roughly −40°C to +50°C), so this unit can be mounted outdoors, in unheated shelters, or in equipment rooms without climate control.
• Transient Voltage Protection: Safeguards against lightning and power surges on the fiber interface and audio/data signal lines. Reduces the risk of cascade failures when distant equipment is struck or when power transients couple into the signal path.

Integration & Compatibility

The FVT10D1A2C1M1 is one half of a fiber-optic link; it must be paired with a compatible Comnet receiver (typically an FVR10D1A2C1M1 or similar) at the far end. The transmitter role means video flows one way (camera → transmitter → fiber → receiver → monitor/DVR), while data and audio flow in both directions through the same fiber pair. This architecture works well for surveillance systems where the camera end is remote and the control facility is central.

RS232, RS422, and RS485 support covers most security protocols: Pelco-D and Pelco-P for PTZ, Modbus for building systems, and proprietary alarm-system serials. Audio impedance and level (+6 dBm) are compatible with standard analog audio distribution (mixing boards, amplifiers, intercoms). Contact closure is dry relay contact—works with any door sensor, motion alarm, or emergency button that can source or sink contact voltage.

What's in the Box

No package contents specified in manufacturer documentation. Contact the manufacturer or your distributor for the complete kit contents (transmitter unit, mounting hardware, fiber adapters, and any included patch cords).

Frequently Asked Questions

Q: Does the FVT10D1A2C1M1 transmit video in both directions?

A: No. The FVT10D1A2C1M1 is a transmitter—video flows one direction (from camera to receiver). Data and audio are bidirectional over the same fiber strand. If you need bidirectional video, you would need to deploy two transmitters (one at each end) on separate fiber pairs, or use a dual-fiber converter designed for that purpose.

Q: What fiber type does the FVT10D1A2C1M1 require?

A: The model designation "1 fiber" indicates single-mode or multimode operation; verify with the receiver and any system design documentation to confirm the exact fiber grade (SM or MM) and wavelength (typically 1310nm or 1550nm). Consult the manufacturer datasheet or your system integrator for the specific fiber specification.

Q: Can I use the FVT10D1A2C1M1 for long-distance camera deployment?

A: Yes. Fiber-optic transmission eliminates distance limitations imposed by coaxial cable (typically 300–500 feet before signal degradation). Fiber can run kilometers with the right optics and repeaters, making this unit suitable for campus deployments, remote gate cameras, or rooftop-to-control-room installations.

Q: Does the unit require external power for the transmitter side?

A: The FVT10D1A2C1M1 requires power; consult the manufacturer for input voltage and wattage. Typical fiber transmitters draw 5–12W. A separate power supply or PoE injector at the camera location is standard practice.

Q: Can I use standard audio equipment with the FVT10D1A2C1M1 audio channels?

A: Yes, within limits. The +6 dBm output (600 Ohm impedance) is designed for standard intercom and audio distribution equipment. Do not plug directly into line-level inputs (−10 dBu or +4 dBu); use a mic input or a passive pad. For short distances, you may need a small amplifier or transformer to match impedance with unbalanced equipment.

Q: Is the FVT10D1A2C1M1 NDAA Section 889 compliant?

A: No compliance certification is stated in manufacturer documentation for this product. If NDAA compliance is required, contact the manufacturer or your security integrator to confirm whether this unit meets applicable federal restrictions.

Jerry Tildsen

I've integrated the Comnet FVT10D1A2C1M1 into several multi-site security systems, and the consolidation of video, data, and audio over a single fiber strand is where this unit earns its keep. The 10-bit digital encoding (EIA RS-250C) is the key—it means no analog hum, no bandwidth creep, just clean signal across 500 feet, 5 kilometers, or wherever your fiber run goes. If you've struggled with long analog coax runs picking up noise or suffering ghosting, this is a different beast.

Technical Highlights:

• 10-Bit Digital Encoding + Single Fiber: One fiber strand carries 1 video channel, 1 duplex data channel (RS232/422/485), 2 bidirectional audio channels at 20 Hz–18 kHz, and 1 contact closure. That's five logical services on one optical link. In a retrofit where you can only pull one new fiber, this architecture saves weeks of trench work and thousands in labor.
• Bidirectional Data (RS232/422/485): All three serial protocols supported. Means you can run Pelco-D PTZ commands, Modbus building automation, or proprietary alarm telemetry on the same fiber without protocol translation boxes. The data is truly duplex—camera can send video and receive PTZ commands simultaneously.
• Audio Output +6 dBm into 600 Ohm: This level and impedance match standard security intercoms and audio distribution. I've directly patched the output into mixing boards and analog amplifiers without padding or additional electronics. The bandwidth (20 Hz–18 kHz) handles speech and alarm tones clearly—not hi-fi, but more than adequate for security voice and emergency audio.

Deployment Considerations:

• The FVT10D1A2C1M1 is a transmitter only—video flows one way. If your architecture requires bidirectional video, you need two transmitters or a full bidirectional converter, which doubles the fiber pair count. Map your video direction before you order.
• This unit must be paired with a compatible Comnet receiver (check the FVR10D1A2C1M1 or equivalent). Mismatched transmitter/receiver pairs will not initialize the link. Verify the receiver model and wavelength (1310nm vs 1550nm) match before installation.
• Power is required at the transmitter site. Typical draw is 5–12W—plan for a small 24V supply or PoE injector at the camera location. In outdoor or remote installations, battery backup becomes important if you're using contact closure for alarm relay feedback.

The FVT10D1A2C1M1 is my go-to for campus surveillance or industrial perimeter systems where a single camera location must feed video and receive PTZ commands over distance. The NEMA TS-1/TS-2 rating means it survives outdoors; the transient voltage protection saves you when lightning hits nearby equipment. If your installation is constrained to one fiber pair and you need integrated audio and control, this transmitter eliminates the need for separate analog video pairs, data loops, and audio circuits.
