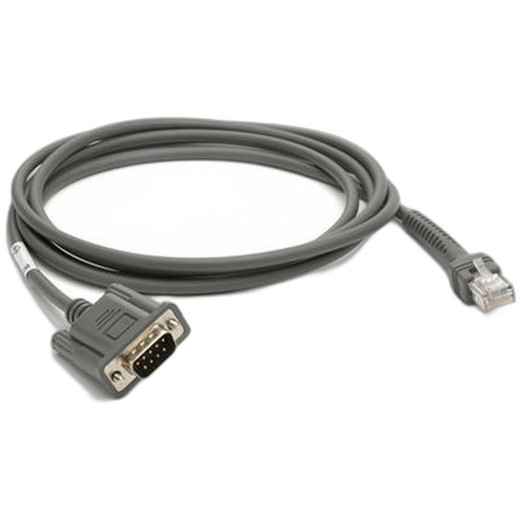

Zebra CBA-R08-S07ZBR 7ft RS232 Serial Cable
The Zebra CBA-R08-S07ZBR is a 7-foot wired serial cable engineered to bridge DB-9 equipped devices to RJ-45 terminal inputs. This cable addresses a specific integration need in retail and hospitality environments where legacy point-of-sale hardware and modern terminal infrastructure must communicate via RS232 serial protocol. The 7-foot length accommodates typical countertop and backroom layouts without requiring signal conditioning or active boosters.
Key Features
- DB-9 to RJ-45 Configuration: Direct pinout matching eliminates adapter chains and reduces failure points. One cable handles the connection; no intermediate converters needed.
- 7-Foot Length: Reaches from a POS terminal or peripheral controller to a remote switch, backroom equipment rack, or adjacent counter station without excessive slack or tension on connectors.
- RS232 Serial Protocol: Maintains full duplex communication at standard serial speeds (typically up to 115.2 kbps on legacy hardware). Suitable for barcode scanners, pole displays, customer-facing displays, and receipt printers that rely on serial control.
- Wired Connectivity: No power consumption on the cable itself. Device power requirements remain separate, simplifying troubleshooting and reducing cable clutter in tight counter installations.
- Zebra Terminal Compatibility: Pre-qualified for Zebra-branded terminals and point-of-sale systems requiring serial peripheral control, including Nixdorf legacy systems still in active retail and hospitality deployments.
- Stationary Installation Profile: Designed for fixed countertop or back-office mounting; not rated for mobile or field mobility scenarios. Once connected, the cable remains static.
Deployment Context
This cable is purpose-built for retail environments where POS terminal infrastructure predates modern network-attached peripherals. If your barcode scanner, pole display, or receipt printer communicates exclusively via RS232 and connects through an RJ-45 interface on a Zebra terminal or controller, the CBA-R08-S07ZBR (often searched as CBA R08 S07ZBR) eliminates the need for off-the-shelf serial adapters or custom wiring harnesses. Seven feet is sufficient for most retail counter configurations but may require planning if the terminal sits more than 6–7 feet from the peripheral device. For longer runs, consult with your terminal vendor about approved extension options or active boosters.
When to Choose a Different Model
If you require a shorter cable for confined spaces (e.g., wall-mounted terminal with adjacent scanner), contact your vendor for variant availability. If your peripherals support USB or Ethernet connectivity natively, a serial cable is not necessary — upgrade the peripheral instead. If you need the cable to carry power or support longer distances (20+ feet) without signal degradation, a serial-to-Ethernet gateway or converter may be a better fit than a passive cable extension.
Frequently Asked Questions
Q: Is the CBA-R08-S07ZBR compatible with non-Zebra terminals?
A: Compatibility depends on the RJ-45 pinout standard used by the other manufacturer. Zebra serial cables follow Zebra's proprietary pinout; other vendors may use different pin assignments. Verify the terminal's wiring diagram before substituting. Incorrect pinout can cause communication failure or equipment damage.
Q: Can I extend the cable beyond 7 feet?
A: RS232 signal integrity degrades over distance. Passive extension beyond approximately 50 feet is not recommended without active boosters. For runs longer than 7 feet, consult your Zebra terminal documentation or a serial infrastructure specialist.
Q: Does this cable support power delivery?
A: No. The CBA-R08-S07ZBR is a passive serial data cable only. All connected peripherals must have independent power supplies.
Q: What should I do if communication fails after installing this cable?
A: Verify that the RJ-45 connector is fully seated and locked. Test the cable with a different peripheral if possible. Inspect the DB-9 connector for bent or corroded pins. If the issue persists, the cable may be defective — request a replacement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBA-R08-S07ZBR is a straightforward connector — but straightforward is exactly what you need when legacy serial peripherals are still in play on your retail or hospitality floor. I've seen integrators waste a day chasing phantom communication failures that turned out to be adapter incompatibilities or pinout mismatches. A purpose-built, pre-qualified cable like this one eliminates that friction. The 7-foot length is the real detail here: it's long enough to reach from a wall-mounted terminal to a backroom controller or a pedestal scanner, but short enough that you won't collect coils of slack behind the counter.
Technical Highlights:
- DB-9 to RJ-45 Pinout: Pre-wired for Zebra terminals — no field crimping, no guesswork on pin assignment. Saves troubleshooting time and reduces wiring errors on install day.
- Passive Serial Design: No active electronics means no failure points inside the cable itself. If communication dies, you know the problem is either the connector, the terminal, or the peripheral — not the cable.
- 7-Foot Fixed Length: Enough reach for standard retail counter depth (usually 24–30 inches) plus equipment spacing. Measure before ordering if your layout is nonstandard.
Deployment Considerations:
- This cable is Zebra-specific. If you inherit a mixed-vendor environment (Zebra terminal, NCR or Diebold peripheral), verify pinout compatibility or budget for a secondary conversion interface.
- RS232 signal quality drops noticeably beyond 50 feet. If your backroom is farther than that, this cable alone won't bridge the gap — plan for an active repeater or serial-to-Ethernet gateway.
- The DB-9 connector can corrode in humid or salt-air environments (common in hospitality). Apply silicone grease to the connector mating surfaces every 6 months if your location is coastal or high-humidity.
The CBA-R08-S07ZBR is the right choice when you need a drop-in replacement for a failed serial cable in an existing Zebra POS environment, or when you're commissioning a new terminal with legacy peripherals still under warranty. Don't over-engineer this — it's a data cable, not a strategic component. Order the length you need, seat it firmly, and move on.
