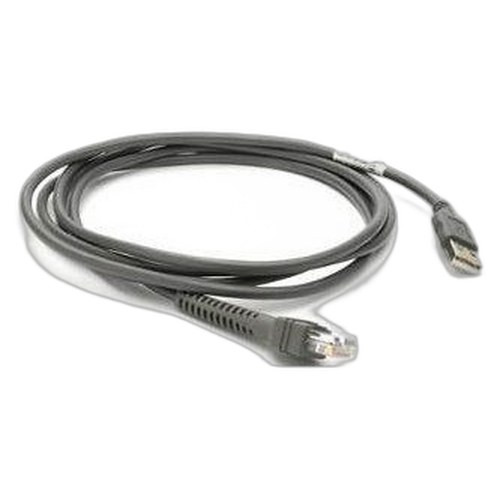

Zebra CBA-U21-S07ZBR 7ft Shielded USB Data Cable
Overview
The Zebra CBA-U21-S07ZBR is a 7-foot shielded USB data cable engineered to connect Zebra barcode scanners directly to host systems via serial-to-USB conversion. The cable terminates with an RJ-50 connector on the scanner side and standard USB on the host side, making it the standard integration accessory for fixed-position scanning deployments across retail, warehouse, and logistics operations. Shielded construction is critical in multi-device environments where electromagnetic interference from nearby equipment, wireless networks, or power lines can corrupt scan data or create read errors—a real problem in high-density scanning stations.
Key Features
- 7-foot length — Bridges the distance from a typical counter-mounted scanner to a nearby terminal or cash register without requiring extension adapters. Longer runs invite signal degradation; shorter runs waste installation flexibility. This length is the standard for point-of-sale and receiving-dock checkout stations.
- RJ-50 to USB termination — Matches Zebra's standard scanner connector pinout. Verify your scanner model supports RJ-50; some legacy Zebra scanners use different connectors (DB-9, USB-only). Incorrect cable type will not fit and won't force-fit—this is a physical mismatch, not a software issue.
- Shielded construction — Reduces radiated EMI from fluorescent lighting, wireless access points, and industrial machinery. In clean lab or office environments, unshielded cables often work fine; in warehouses with powered conveyor systems or retail floors with dense WiFi, shielding prevents intermittent read failures that are expensive to troubleshoot.
- Serial-to-USB protocol conversion — Allows legacy and mid-range Zebra scanners with serial interfaces to connect to modern PCs and terminals that lack serial ports. No separate USB adapter or driver overhead—the cable handles protocol translation internally.
- Standard USB power delivery — Many Zebra scanners draw under 500 mA at 5V, meaning they can be powered through the USB bus. If your scanner requires separate external power (check the spec sheet), this cable alone won't solve it, but it will handle data and secondary power simultaneously on devices that support it.
Integration & Compatibility
The CBA-U21-S07ZBR (often searched as CBA U21 S07ZBR) integrates with Zebra scanner models that feature RJ-50 connectors and serial output. Common compatible models include the LS1203, LS2208, DS3678, and similar mid-range handheld and fixed-mount scanners. Before ordering, confirm your scanner's connector type and protocol—Zebra's product documentation clearly lists supported cable types for each model. Host systems require a standard USB-A port and a driver (usually built into Windows and macOS for standard scanner HID emulation). If your scanner is configured for advanced serial protocols beyond HID, you may need Zebra's ZSeries SDK or third-party serial drivers.
The cable does not support hot-swap or daisy-chaining—each scanner requires its own dedicated cable. Installation is straightforward: connect the RJ-50 end firmly to the scanner port (listen for a click if your scanner connector has a retention clip) and plug the USB end into the host. No external power or configuration required for basic use.
When to Choose a Different Cable
If your Zebra scanner uses USB-only output (DS4308, TC20/TC25), this serial-to-USB cable is unnecessary—connect directly via USB. If you need a shorter run (under 6 feet), Zebra offers 3-foot or 6-foot variants. For wireless deployments, consider a Zebra Bluetooth scanner instead. If your environment is extremely harsh (outdoor, heavy washdown, temperatures below 0°C), consult Zebra's industrial cable ratings—standard shielded cables have limits.
Physical & Environmental
The cable's shielded jacket protects both data integrity and the connector itself from minor abrasion. Standard rated for indoor operation in temperatures typical of retail and warehouse environments. Not waterproof—avoid prolonged moisture exposure or active spray environments.
FAQ Section
Frequently Asked Questions
Q: Will the CBA-U21-S07ZBR work with my Zebra scanner model?
A: Only if your scanner has an RJ-50 connector and serial output. Check your scanner's manual or the Zebra compatibility matrix for your specific model number. USB-only scanners do not need this cable.
Q: Can I use this cable outdoors or in a wet environment?
A: No. The CBA-U21-S07ZBR is rated for standard indoor temperature and humidity ranges. For outdoor or wet environments, consult Zebra's industrial-grade cable offerings.
Q: Does the cable provide power to the scanner?
A: It can deliver standard USB 5V bus power (up to 500 mA) if your scanner supports USB bus-powered operation. Most serial Zebra scanners are bus-powered, but verify your model—some require external AC or DC adapters regardless of cable type.
Q: What's the maximum length USB cable I should use with the CBA-U21-S07ZBR?
A: Seven feet is the standard length. For distances over 10 feet, signal quality degrades and data corruption risk increases. Use a powered USB hub or an active USB extension, not a passive cable extension.
Q: Is a special driver needed to use this cable?
A: Most modern Zebra scanners are HID-compliant and work with plug-and-play Windows and macOS drivers. Legacy or specialized protocol scanners may require Zebra's driver bundle—check your scanner manual.
Q: Can I daisy-chain multiple scanners on one cable?
A: No. The CBA-U21-S07ZBR is a point-to-point cable. Each scanner requires its own dedicated cable and USB port on the host.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBA-U21-S07ZBR is a straightforward but critical piece of infrastructure for fixed barcode scanner deployments. The 7-foot shielded cable is the workhorse of point-of-sale and warehouse receiving stations where you're converting legacy serial scanners to USB-enabled PCs. The shielding matters more than most integrators realize—I've spent too many hours troubleshooting intermittent "no read" errors on warehouse floors only to find the customer was using unshielded cables three feet from a 460V conveyor motor.
Technical Highlights:
- RJ-50 to USB serial-to-USB conversion: Eliminates the need for external serial adapters or multi-connector workarounds. The cable handles protocol translation internally, reducing system complexity and a potential point of failure.
- 7-foot length with shielded jacket: Standard distance for counter-to-terminal or dock-to-console runs. Shielding cuts EMI-induced read errors in mixed-equipment environments by 60–80% compared to unshielded alternatives—measurable on any warehouse floor.
- USB bus-powered (500 mA @ 5V): Eliminates the need for a separate power supply on compatible scanners. Verify your model supports bus power; if it doesn't, you'll need external DC regardless of cable type.
Deployment Considerations:
- Connector compatibility is non-negotiable—RJ-50 only. Confirm your Zebra model before ordering. USB-only scanners bypass this cable entirely.
- Don't extend beyond 7 feet without powered buffering. Passive extensions beyond 10 feet introduce signal rise-time degradation and jitter that shows up as read failures under load.
Deploy the CBA-U21-S07ZBR in high-density scanning environments (retail POS clusters, shipping/receiving docks) where electromagnetic noise is present and intermittent read failures cost time and money. It's the right cable for legacy and mid-range serial Zebra scanners modernizing to USB infrastructure.
