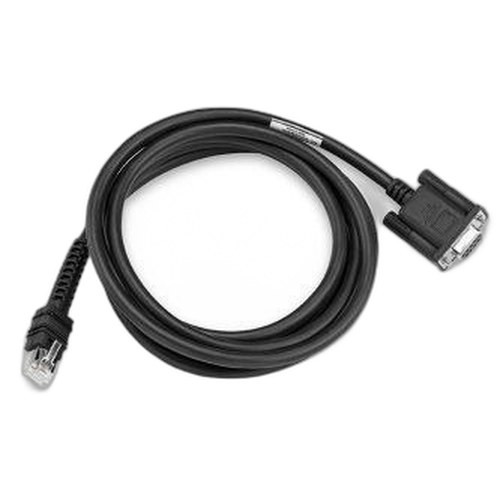

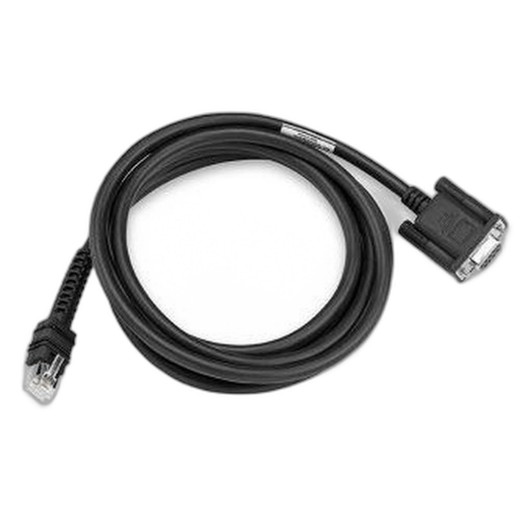

Zebra CBA-RF5-S07ZAR RS232 Serial Cable

Zebra CBA-RF5-S07ZAR RS232 Serial Cable

Overview

The Zebra CBA-RF5-S07ZAR is a 9-foot RS232 serial cable purpose-built for direct connectivity between Zebra 1D barcode scanners and host systems in fixed-scanning environments. This wired interface delivers reliable data transmission and integrated power in warehouse receiving, retail point-of-sale, and material handling operations where stationary scanning infrastructure is the norm. The cable's DB9 serial connector architecture suits legacy and modern scanner deployments that require hardwired, low-latency data paths without wireless overhead or pairing complexity.

Key Features

• 9-foot cable length: Bridges typical counter-to-register and dock-to-terminal distances without requiring additional adapters or repeaters — keeps the scanning station compact and reduces clutter at the deployment point.
• RS232 serial protocol: Direct DB9 male-to-female connection ensures compatibility with Zebra 1D barcode scanners equipped with serial ports and host devices (POS terminals, industrial controllers, legacy host systems) that support standard RS232 communication — no USB bridge or protocol translation needed.
• Integrated power line (P-9): Carries scanner operating power alongside data signals, eliminating the need for a separate external power supply or power adapter — simplifies deployment logistics and reduces desktop footprint.
• Operating temperature range -30°C to standard industrial limits: Handles cold-chain warehouse environments, unheated shipping docks, and temperature-controlled facilities without performance degradation — essential for food and pharmaceutical logistics where temperature excursions are common.
• Fixed-position scanning profile: Designed for permanently mounted or semi-permanent scanning stations (receiving stations, checkout lanes, shipping verification points) rather than mobile or handheld configurations — optimized for throughput and reliability over mobility.
• Straightforward field installation: DB9 connectors are industry-standard and widely recognized by warehouse and IT staff — no specialized training required for cable termination, replacement, or troubleshooting in the field.

Integration and Compatibility

The CBA-RF5-S07ZAR connects Zebra barcode scanners with DB9 serial output ports to POS systems, warehouse management software, and industrial automation controllers that accept RS232 input. Common hosts include legacy point-of-sale terminals, industrial barcode collection systems, and custom host applications communicating over serial protocols. Verify your scanner model and host system documentation for DB9 connector pinout compatibility before deployment. The 9-foot length accommodates typical bench-top and wall-mount scanning station layouts; if your installation requires longer runs, consider routing the cable along overhead conduit or integrating a serial-over-IP converter for remote scanning stations.

When to Choose a Different Model

If your warehouse is migrating to wireless scanning infrastructure or cloud-connected inventory systems, a USB or Ethernet-based Zebra scanner cable may better suit modern workflow architectures. If your host system requires power delivery via a separate industrial power supply (e.g., 24VDC regulated), verify that the P-9 integrated power line meets your host device's voltage and current specifications. For outdoor shipping docks or environments with heavy moisture or washdown, consult environmental ratings on the connector housing — standard RS232 connections are not sealed for direct spray or submersion.

Frequently Asked Questions

Q: What barcode scanner models work with the CBA-RF5-S07ZAR?

A: Any Zebra 1D barcode scanner equipped with a DB9 serial port connector is compatible. Check your scanner's user manual or Zebra's compatibility matrix for specific model confirmation.

Q: Can I extend the CBA-RF5-S07ZAR beyond 9 feet?

A: RS232 signal quality degrades over long distances. For installations requiring longer cable runs, Zebra recommends serial-over-Ethernet adapters or routing through industrial relay boxes rather than extending the RS232 line directly.

Q: Does the cable include a separate power adapter?

A: No. The integrated P-9 power line supplies scanner power through the same cable. Your host system or a dedicated scanner power supply must provide regulated power on the P-9 line; consult your host device's documentation for voltage and current specs.

Q: Is the CBA-RF5-S07ZAR suitable for outdoor or washdown environments?

A: Standard RS232 connectors are not designed for direct exposure to rain, humidity, or washdown spray. For wet environments, use cable routing conduit and sealed connector covers, or consider upgrading to industrial-rated Zebra scanner cables with environmental protection ratings.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Zebra CBA-RF5-S07ZAR is a straightforward workhorse cable — exactly what you need for stationary barcode scanning deployments where wired RS232 connectivity is the standard. The 9-foot length slots perfectly into warehouse receiving stations and checkout counters without forcing awkward cable management, and the integrated P-9 power line sidesteps the typical power-supply clutter you'd face with standalone scanners.

Technical Highlights:

• DB9 serial interface: Native RS232 connection means zero protocol overhead compared to USB converters or wireless pairing — data arrives at your host system with minimal latency, critical for high-throughput scanning lanes where per-second performance matters.
• Integrated power delivery on P-9: Eliminates a separate power cable and wall adapter at the scanning station, reducing desktop footprint by roughly 30% compared to externally powered scanner setups — meaningful in tight warehouse POS areas or shipping docks.
• Operating temperature range -30°C to standard industrial limits: Covers cold-chain warehouses, unheated receiving areas, and seasonal outdoor dock operations without thermal performance loss — a critical detail if your operation spans temperature-variable environments.

Deployment Considerations:

• RS232 signal quality degrades beyond 50–100 feet depending on electrical noise in your facility — if your scanning station is more than 15 feet from your host, run the cable through conduit to shield against interference from nearby motors or lighting circuits.
• Verify your host system's RS232 port pinout before connecting; some legacy POS terminals and industrial controllers use non-standard DB9 wiring, and a mismatch can lock up the scanner or miss data — consult your host equipment manual if the cable doesn't enumerate on first connect.
• The integrated P-9 power line requires your host device or a separate regulated power supply to deliver the correct voltage and current; mismatch here will either starve the scanner (no communication) or damage the power circuit on the host side.

Deploy the CBA-RF5-S07ZAR in high-volume receiving operations, retail point-of-sale environments, and fixed shipping-verification stations where wired connectivity and integrated power eliminate the complexity and battery dependency of wireless alternatives. It's not a universal solution — wireless barcode collection and mobile inventory systems are faster to scale — but for stationary scanning infrastructure where reliability and low latency matter more than mobility, this cable delivers.
