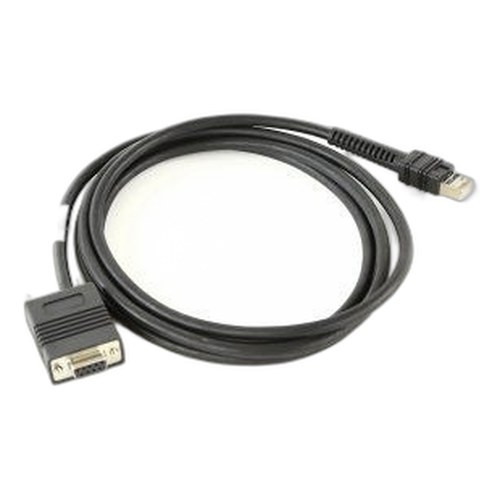

Zebra CBA-R07-S07PAR 7ft RS232 Serial Cable DB9-F
The Zebra CBA-R07-S07PAR is a 7-foot straight RS232 serial cable designed for direct integration with Zebra barcode scanners, mobile computers, and enterprise data-capture devices. Terminated with a female DB9 connector and supporting TXD-2 12V signaling, this cable delivers reliable wired serial communication for fixed scanning stations, warehouse management workflows, and point-of-sale docking environments where legacy serial connectivity remains the standard.
Key Features
- 7-Foot Straight Configuration: Eliminates coiling and excess cable slack at the scanning station, reducing tripping hazards and improving cable routing in high-traffic warehouse aisles. The fixed length suits most docking bays and fixed-position checkout counters without requiring additional splicing or extension.
- DB9-F (Female) Connector: Mates directly with male DB9 ports on Zebra scanners and mobile computers. Female termination is the correct polarity for host-to-device cabling; verify your scanner or terminal has a male DB9 output before ordering to avoid gender mismatch.
- TXD-2 12V Signaling Standard: Ensures proper voltage and protocol compliance with Zebra barcode capture hardware. This specification guarantees signal integrity over the 7-foot run; longer distances may require a signal booster or RS232 repeater if your deployment spans greater cable runs.
- Serial Communication for Legacy Systems: RS232 remains the de facto standard for warehouse management systems, older WMS terminals, and industrial PCs that predate USB prevalence. If your scanning infrastructure relies on serial ports, this cable is a direct replacement or spare.
- Warehouse and Retail Rated: Designed for temperature-stable indoor environments (warehouses, retail floors, logistics hubs). Not suitable for outdoor deployment, high-humidity cold storage, or corrosive chemical environments—those require shielded or industrial-grade alternatives.
- Straight Cable (Non-Coiled): Pre-formed straight layout simplifies routing through cable trays or along counter edges. If you need flexibility to coil or bundle with other cables, consider a coiled variant from the Zebra cable family, though straight configuration is preferred for fixed installations where cable routing is permanent.
Integration and Compatibility
The CBA-R07-S07PAR (often searched as CBA R07 S07PAR) is compatible with Zebra barcode scanners and mobile computers equipped with serial ports, including legacy models still operational in warehouse automation and retail environments. It integrates with warehouse management systems, point-of-sale (POS) terminals, and inventory control networks that accept RS232 input. Verify your host device has a DB9 male port; female adapters or gender-changers will not work reliably for this connection.
When deploying across a networked data-capture infrastructure, ensure your serial port configuration and baud rate (typically 9600 bps for Zebra devices) match your WMS software settings. If your deployment requires wireless barcode scanning or network-based data transfer, consider evaluating Zebra mobile computers with Ethernet or Wi-Fi connectivity as a migration path from serial-only architecture.
Frequently Asked Questions
Q: Is the CBA-R07-S07PAR cable compatible with all Zebra barcode scanners?
A: It is compatible with Zebra scanners and mobile computers equipped with RS232 serial (DB9 male) ports. Verify your specific scanner model has a male DB9 output connector. Newer Zebra devices may use USB or Ethernet instead of RS232—check your device documentation before ordering.
Q: Can I use this cable with non-Zebra devices?
A: The cable itself is a standard RS232 DB9-F connector and will work with any device that has a male DB9 serial port. However, the TXD-2 12V signaling specification is optimized for Zebra hardware. Test compatibility with your specific third-party device if serial voltage or protocol differs.
Q: What is the maximum cable length for RS232 communication?
A: At 7 feet, the CBA-R07-S07PAR operates safely within RS232 specification limits. For deployments requiring longer cable runs (50+ feet), signal degradation may occur—use a signal booster, repeater, or transition to USB/Ethernet-based connections.
Q: Can the CBA-R07-S07PAR be used in outdoor or high-temperature environments?
A: No. This cable is designed for stable indoor warehouse, retail, and logistics environments. For outdoor, freezer, or high-temperature scanning stations, contact a systems integrator for industrial-grade shielded or temperature-rated alternatives.
Q: Is this cable strain-relieved?
A: Strain relief details are not specified in the product documentation. Inspect the connector mold and cable jacket at both ends before installation. If your scanning station experiences frequent cable movement or vibration, consider cable management clips or routing sleeves to minimize connector stress.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBA-R07-S07PAR solves a real problem: legacy barcode scanning infrastructure still relies on RS232 serial connections, and a 7-foot straight cable is the right form factor for fixed docking stations where cable routing is permanent and routing flexibility isn't needed. The TXD-2 12V signaling ensures the cable will integrate properly with Zebra barcode capture devices without signal degradation over its 7-foot run.
Technical Highlights:
- DB9-F Termination: Female connector means your host device (WMS terminal, POS, industrial PC) must have a male DB9 output. This is the standard configuration for serial cabling, but verify your device before ordering—gender mismatch is the #1 reason for integration failures.
- 7-Foot Length: Perfect for short-to-medium docking bay runs. RS232 signal integrity degrades beyond ~50 feet without a repeater, so this length is well within safe operating parameters. Longer runs require signal boosting or a transition to network-based scanning.
- Straight (Non-Coiled) Design: Eliminates the need to uncoil or manage slack, which is a minor but real time-saver in high-volume scanning environments. Trade-off: you can't easily bundle or rewind it, so cable management planning is important during installation.
Deployment Considerations:
- Verify your host device has a DB9 male port before purchasing. USB-based or Ethernet-equipped devices will require adapters or replacement cables—don't assume legacy is universal in your facility.
- Test baud rate alignment between the scanner and WMS software. Zebra devices typically default to 9600 bps, but older installations may use 2400 or 4800 bps—a mismatch causes data corruption or no communication.
- RS232 is susceptible to electromagnetic interference in industrial environments. If your scanning station is near heavy electrical equipment, motors, or RF sources, consider shielded cable alternatives or running the cable away from power lines.
Deploy the CBA-R07-S07PAR in warehouse management systems or retail POS environments where serial communication is already the standard and you need a reliable replacement or spare cable for a fixed scanning docking station. It's not a foundation for new infrastructure—if you're building from scratch, push for USB or network-connected barcode capture hardware to avoid future technical debt.
