Viking Yellow Surface Mount Box - VE-5X5-YL

Viking Electronics VE-5X5-YL Yellow Surface Mount Enclosure

Overview

The Viking Electronics VE-5X5-YL is a 16-gauge cold-rolled steel surface mount box engineered specifically for Viking flush-mount intercom and entry products with a 5.0″ × 5.0″ faceplate footprint. Where your installation surface won't accommodate a recessed rough-in — concrete block walls, poured concrete, brick, or retrofit scenarios where cutting in is off the table — this box gives you a clean, code-friendly surface mount solution without sacrificing finished appearance. The yellow UV-stable powder coat finish doubles as a high-visibility identifier in industrial, utility, and emergency-call applications where the station needs to be spotted fast. If you're spec'ing a Viking Electronics emergency phone or entry system for a parking structure, utility corridor, or perimeter post, the VE-5X5-YL is the correct enclosure to specify.

Key Features

• 16-Gauge (0.062″) Cold-Rolled Steel Construction: At 16 gauge, this enclosure resists casual physical abuse — a meaningful spec in public-access locations like parking garages, loading docks, and utility rooms where panels get bumped by carts, equipment, and general traffic. Thinner-gauge housings dent and deform at fastener points; 16 gauge holds its geometry after years of service.
• UV-Stable Yellow Fine-Texture Powder Coat: The UV-stable formulation means the yellow finish won't chalk, fade, or go brittle after prolonged sun exposure. This matters on exterior-facing walls or covered outdoor posts where a standard paint would degrade to a chalky orange within a couple of seasons. The fine texture also hides minor surface scratches better than a gloss finish.
• 5.22″ × 5.22″ × 3.0″ Footprint: The 3.0″ depth gives adequate interior volume for device wiring terminations and any pass-through conduit connections. At 5.22″ square, the box provides a secure perimeter border around a 5.0″ × 5.0″ faceplate — enough overlap for a solid gasket seal without the box looking oversized on the wall.
• 0.75″ Knockout for Conduit Entry: A standard 0.75-inch knockout accommodates the most common conduit trade sizes used in commercial wiring runs. Pre-punched knockouts save field time versus drilling on-site and reduce the risk of burrs that can damage cable jackets during pull-through.
• Single and Double Gang Mounting Slots (0.2″ × 0.43″): The VE-5X5-YL can be back-mounted to an existing single or double gang electrical box in the wall — useful in retrofit scenarios where a gang box was already roughed in but the flush-mount depth isn't sufficient for the Viking device. This gives you two installation paths: direct wall surface mount or gang-box adapter mount.
• 0.38″ Drain Hole: The bottom drain hole prevents moisture accumulation inside the enclosure in partially exposed or humid environments. In covered outdoor locations — parking structure pillars, vestibule walls, covered loading docks — condensation is a real failure mode for electronics; the drain hole addresses it passively without requiring a maintenance schedule.
• 1.7 lb Shipping Weight: At under two pounds, the enclosure is light enough for single-person installation with standard wall anchors. No blocking or backing plate is required in most applications — just appropriate fasteners for the substrate.

Integration & Compatibility

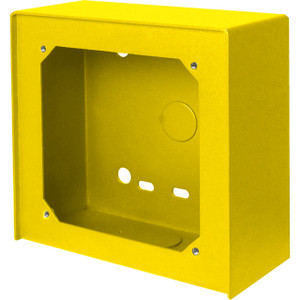

The VE-5X5-YL is designed for use with Viking flush-mount products carrying a 5.0″ × 5.0″ faceplate — confirm your device's faceplate dimensions before ordering. Companion enclosure variants in the Viking VE-Series surface mount box line include the VE-5X5-NR-YL (no rain guard, same yellow finish) and the VE-5X5-PNL-YL (panel-mount variant), so if your installation requires a different rain management approach or a panel cutout configuration, those models address it within the same form factor. For installations where yellow is not the right call — gray or standard finishes are available in the VE-Series — check the full intercom accessories lineup for the correct color variant. Mounting to a single or double gang box is supported via the integral slots; wall substrate anchoring hardware is field-selected based on the mounting surface. For outdoor or high-humidity installations, pair this enclosure with appropriate conduit sealing fittings at the 0.75″ knockout to maintain weather integrity at the wiring entry point. Explore Viking Electronics entry and intercom products to match the correct flush-mount device to this enclosure.

Frequently Asked Questions

Q: Which Viking flush-mount products are compatible with the VE-5X5-YL?

A: The VE-5X5-YL is designed for Viking flush-mount products with a 5.0″ × 5.0″ faceplate. Verify your device's faceplate dimensions match before ordering.

Q: Can the VE-5X5-YL be mounted to an existing electrical gang box?

A: Yes. The enclosure includes single and double gang mounting slots (0.2″ × 0.43″), allowing it to be secured directly to an existing gang box — a common retrofit path when a gang box is already roughed in at the wall.

Q: What conduit size fits the VE-5X5-YL knockout?

A: The pre-punched knockout is 0.75 inches in diameter, accommodating standard 3/4-inch trade-size conduit fittings commonly used in commercial electrical installations.

Q: Is the VE-5X5-YL suitable for outdoor installation?

A: The UV-stable yellow powder coat finish is designed to resist sun degradation in outdoor-exposed conditions. The enclosure includes a 0.38″ drain hole at the bottom to prevent moisture accumulation. For fully exposed outdoor locations, use appropriate conduit sealing fittings at the knockout entry point to maintain weather integrity.

Q: Why is the VE-5X5-YL yellow instead of gray or black?

A: Yellow is specified for high-visibility applications — emergency call stations, safety phones, and entry points in industrial or public-access environments where the station must be spotted quickly. If yellow is not appropriate for your installation, other color variants exist in the Viking VE-Series line.

Q: What is the wall depth required for the VE-5X5-YL?

A: As a surface mount box, the VE-5X5-YL sits proud of the wall surface — no wall depth or rough-in cavity is required. The box itself is 3.0 inches deep, projecting outward from the mounting surface.

Marty Allison

The VE-5X5-YL comes up often in parking structure and industrial facility installs where the integrator needs to surface-mount a Viking entry phone to poured concrete or block masonry — substrates where recessing a gang box is either cost-prohibitive or structurally not an option. The 16-gauge cold-rolled steel body is the spec I point to first: at 0.062 inches, it takes the incidental impacts that happen in high-traffic service corridors without the faceplate pulling away from the box at the fastener points the way thinner-gauge enclosures tend to over time.

Technical Highlights:

• 16-Gauge (0.062″) CRS Body: Cold-rolled steel at this gauge resists deformation at mounting screw locations — relevant in high-traffic zones where a cart or equipment strike would crumple a lighter enclosure and create water infiltration points at the seal perimeter.
• 0.75″ Pre-Punched Knockout: Matches standard commercial conduit trade sizing, eliminating field drilling and the burr hazard it creates for cable jacket integrity during wire pull. Time savings are small per unit but meaningful across a multi-station parking structure deployment.
• UV-Stable Powder Coat: The UV-stable designation means the yellow finish retains its color on south- or west-facing exterior walls without chalking — standard powder coat without UV stabilizers will read as off-white within two to three seasons in direct sun exposure.

Deployment Considerations:

• The gang box mounting slots (0.2″ × 0.43″) make retrofit installs straightforward when a single or double gang box is already present in the wall — but confirm the box depth behind the wall is clear before ordering, since the VE-5X5-YL adds 3.0 inches of projection off the finished surface.
• The 0.38″ drain hole is at the bottom of the enclosure — verify your conduit entry is through the knockout and not the bottom to avoid blocking drainage in partially exposed locations.

For a covered parking structure emergency-call deployment where visibility, durability, and surface-mount flexibility all matter, the VE-5X5-YL is the enclosure to spec alongside the compatible Viking flush-mount device. It is not the right call for installations requiring a rain guard — look at the VE-5X5-NR-YL variant in that case.
