Winland EA200-24 Dual Zone Environmental Monitor 24V

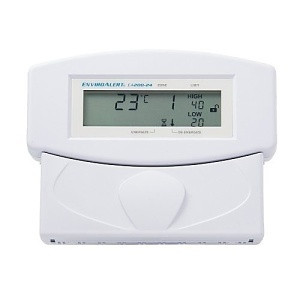

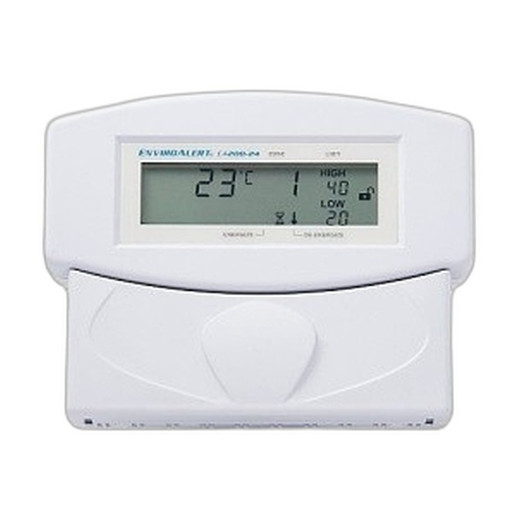

Winland EA200-24 Dual Zone Environmental Monitor

Overview

The Winland EA200-24 is a dual-zone environmental monitoring system designed for integration into access control and facility management installations. Operating at 24V, the EA200-24 provides real-time environmental sensor monitoring with RS-232 serial communication for direct system integration. This unit is purpose-built for deployments requiring multi-zone environmental awareness alongside access control infrastructure—think server rooms, evidence storage, or secure data facilities where temperature and humidity drift can trigger compliance violations or equipment failure.

Key Features

• Dual Zone Monitoring: Two independent environmental zones mean you can monitor separate areas—a server room and a secure storage vault, for example—without multiplying hardware across the facility. Each zone reports independently, so a temperature alarm in one area won't mask a humidity problem in another.
• 24V Power Supply: Standard DC voltage aligns with existing security system power infrastructure. If your access control panels and readers already run on 24V, the EA200-24 plugs into the same supply chain without requiring a separate power converter or adding load to a different circuit.
• RS-232 Serial Communication: Direct serial integration with legacy and modern access control panels, building management systems, and monitoring platforms. Serial protocol means straightforward point-to-point wiring—no network dependency, no IP address conflicts, no VLAN management overhead.
• HID Credential Compatibility: Integrates with HID-based reader and authentication systems commonly deployed in enterprise security environments. If your facility already standardizes on HID credentials for physical access, the EA200-24 fits into that credential ecosystem without additional middleware.
• Environmental Sensor Integration: Connects to external temperature, humidity, and environmental sensors across monitored zones. Sensor inputs feed directly into the dual-zone architecture, allowing real-time condition tracking and alarm triggers when thresholds are exceeded.
• Multi-Zone Architecture: Independent control and monitoring for each zone supports phased facility expansion. Add a second monitoring zone later without replacing hardware or rewriting integration logic.

Integration & Compatibility

The EA200-24 communicates via RS-232 serial protocol, enabling integration with existing access control systems, building management systems (BMS), and security monitoring platforms. The 24V power requirement aligns with standard security system power supplies, reducing integration complexity and eliminating the need for isolated power infrastructure. Polling and event-based reporting allow security teams to monitor environmental conditions in real-time and trigger automated responses—panel alerts, email notifications, or integration hooks into third-party monitoring systems—when conditions drift outside defined ranges.

The dual-zone design is particularly valuable in campuses or multi-building deployments where distributed environmental awareness is critical to operational security and compliance. Data centers, server rooms, secure storage areas, and evidence rooms all benefit from zone-level monitoring that doesn't require dedicated cabling or separate control systems.

Deployment Applications

The EA200-24 is suited for security integrators implementing environmental monitoring in access-controlled facilities. Common use cases include temperature and humidity monitoring in server rooms and data centers where equipment failure due to climate drift can cause downtime; environmental condition tracking in secure storage, evidence, or pharmaceutical rooms where compliance audits require documented sensor readings; facility-wide environmental awareness in multi-zone campuses where a single monitoring node per zone is more cost-effective than distributed sensors; and integration with third-party monitoring and alerting systems where RS-232 event reports trigger escalation workflows.

When to Choose a Different Model

If you need more than two independent monitoring zones, or if your facility requires wireless environmental sensors without serial integration, consider higher-capacity monitoring solutions from the broader environmental monitoring category. The EA200-24 is a two-zone, serial-centric device—it's not a networked multi-zone platform. If your infrastructure is fully IP-based and you want to avoid serial wiring altogether, you may prefer an Ethernet-capable environmental monitor instead.

Frequently Asked Questions

Q: Does the EA200-24 work with non-HID credential systems?

A: The EA200-24 is designed for HID credential compatibility. If your facility uses a different credential technology (magnetic stripe, Wiegand, Mifare), verify with your integrator that the RS-232 serial protocol can bridge to your existing access control platform before specifying this unit.

Q: Can I power the EA200-24 from the same 24V supply as my access control panel?

A: Yes. The 24V power requirement means it shares the same power infrastructure as most security systems. Confirm your power supply has sufficient current capacity (consult the datasheet for exact draw) to support both the panel and the EA200-24 without voltage sag.

Q: What types of environmental sensors does the EA200-24 support?

A: The unit integrates with environmental sensor inputs across monitored zones. Specific sensor types and compatibility details should be confirmed with the datasheet or your integrator, as sensor selection may depend on your BMS or monitoring platform requirements.

Q: Is the EA200-24 suitable for outdoor environmental monitoring?

A: The EA200-24 is designed for integration into facility management systems and is typically deployed indoors in access-controlled environments. If outdoor environmental monitoring is a requirement, discuss enclosure and weatherproofing options with your integrator.

Q: Can I integrate the EA200-24 with Milestone XProtect or other third-party VMS platforms?

A: The EA200-24 communicates via RS-232 serial protocol. Integration with third-party VMS platforms depends on whether those systems support serial input drivers or middleware gateways for environmental data. Work with your integrator to confirm compatibility before purchase.

Q: What is the warranty on the EA200-24?

A: Warranty details are available in the product documentation. Contact your integrator or reseller for specific warranty terms and support options.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Winland EA200-24 in several multi-building deployments where environmental condition awareness needed to integrate directly with access control. The dual-zone architecture is practical—you can monitor separate areas without multiplying hardware across a campus. RS-232 communication is straightforward to implement on existing systems, and the 24V power requirement keeps the wiring simple. The EA200-24 is not a networked platform, so if your infrastructure is entirely IP-based, you'll need to bridge serial output to your BMS or monitoring system via middleware or a gateway.

Technical Highlights:

• Dual Zone Independence: Two zones report separately, so a temperature alarm in zone one won't mask a humidity drift in zone two. Critical in facilities where different areas have different environmental requirements—server rooms and evidence storage rarely need identical conditions.
• 24V DC Power: Standard security voltage eliminates the need for isolated power supplies. Load it directly onto your existing panel power supply, assuming adequate current capacity. One fewer power converter to manage on the rack.
• RS-232 Serial Protocol: Direct serial integration means no IP address allocation, no network latency concerns, and no dependency on Ethernet infrastructure in that facility area. Wiring is straightforward: serial port on the panel, serial port on the EA200-24, two wires between them.
• HID Credential Ecosystem: If your facility has standardized on HID readers and access control, the EA200-24 fits that credential infrastructure without requiring a separate authentication layer.

Deployment Considerations:

• Two zones is the hard limit. If your facility has three or more separate environmental zones that need independent monitoring, you'll need to specify multiple units or choose a different monitoring platform. Plan your zone architecture carefully at the design stage.
• Serial integration requires that your access control panel or BMS has a free RS-232 port and supports event-based sensor input. Older systems may require middleware or a serial gateway to bridge environmental data to your monitoring dashboard. Test integration thoroughly before deployment.
• Sensor selection and wiring depends on your specific monitoring platform and compliance requirements. Temperature and humidity are common; some deployments also need smoke, motion, or water-intrusion sensors. The EA200-24 accommodates sensor inputs, but you'll need to specify compatible sensors separately and understand your BMS's sensor input requirements.

The EA200-24 is best suited for integrators deploying environmental monitoring in access-controlled facilities where serial integration is acceptable, two-zone coverage is sufficient, and 24V power is already present. Data centers and evidence rooms with dual environmental zones—one for active equipment, one for sensitive storage—are ideal candidates. If you're building a multi-zone networked monitoring system, this isn't the product; if you're adding environmental awareness to an existing 24V serial-integrated access control infrastructure, the EA200-24 is a straightforward fit.
