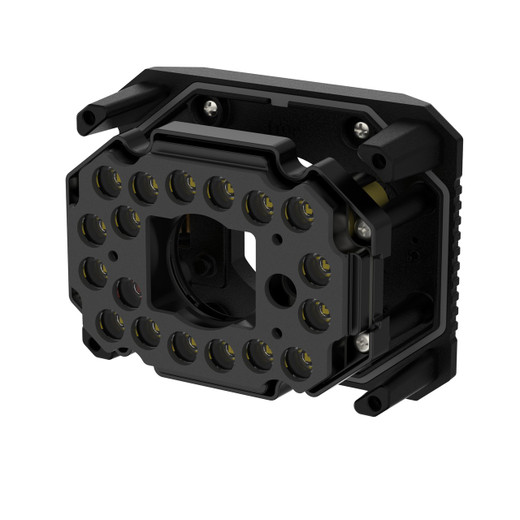

Hanwha SPI-BWW0 White LED Module 6mm Lens Accessory
The Hanwha SPI-BWW0 is a white LED illumination module designed to augment image capture on Hanwha dome and turret cameras equipped with 6mm focal-length lenses. This OEM accessory provides supplemental white-light output in low-light or night-operation scenarios, improving detail clarity and reducing reliance on IR-only night vision where color detail matters—such as license-plate capture, facial recognition, or retail floor monitoring. It integrates directly into compatible camera models without requiring external power distribution or complicated wiring.
Key Features
- 6mm Lens Compatibility: Designed for Hanwha camera models equipped with 6mm focal-length lenses. Confirms mechanical and optical alignment before ordering to ensure correct camera platform.
- White LED Output: Emits uniform white illumination, preserving color fidelity in footage—essential for analytics-dependent deployments (ANPR, face matching) where monochrome IR is insufficient.
- Low-Power Supplemental Lighting: Reduces or eliminates the need for external flood lighting infrastructure, lowering installation complexity and capex on pole-mounted fixtures.
- OEM Component: Factory-engineered and tested for Hanwha camera optics. No third-party optical degradation or integration guesswork.
- Compact Form Factor: Integrated module mounts directly to the camera housing with minimal footprint, ideal for discreet or space-constrained installations.
- Night-Operation Clarity: Bridges the gap between IR-only night vision and full-color surveillance, particularly useful in environments where subject identification (vehicle color, clothing details, face) drives investigative value.
The SPI-BWW0 addresses a common pain point in low-light surveillance: IR cameras deliver acceptable night coverage, but without color context, post-incident forensic value drops sharply. This module adds color-capable illumination without the operational overhead of external lighting poles, power runs, or maintenance schedules. It's especially valuable in retail loss-prevention, parking-structure entry monitoring, and perimeter gate installations where both incident detection and subject identification are required.
Installation is straightforward on supported camera models—the module seats into the camera's accessory port with no additional wiring, software configuration, or network involvement. Power draw is managed within the camera's existing power budget (PoE or 12VDC), eliminating the need for separate LED drivers or auxiliary supplies. Verify your camera model against Hanwha's compatibility matrix before ordering; while the 6mm designation is clear, lens-mount variations exist across the Hanwha dome and turret product line.
The white LED output is continuous—there is no automatic on/off sensing or dimming control built into the module itself. Activation and intensity management typically rely on the camera's firmware (if the host model supports accessory control) or external triggering via VMS analytics rules (detecting night-mode conditions or motion events). This design simplifies the hardware but places integration responsibility on the VMS side; integrators should confirm that the target camera platform and VMS (Hanwha SmartVMS, WAVE, or third-party ONVIF-compatible systems) support accessory relay control before finalizing the specification.
Hanwha's OEM ecosystem is tightly integrated—the SPI-BWW0 pairs with Hanwha's own IP camera lines and is rarely cross-compatible with third-party optics or cameras from other vendors. Confirm model compatibility in writing before committing to bulk orders. The module is factory-tested and backed by Hanwha's standard product warranty, ensuring no optical or electrical defects upon receipt.
Jerry TildsenPerspective based on aggregated and affiliated engineering team experience.
We've integrated the SPI-BWW0 across Hanwha dome and turret platforms in retail environments, and it's a pragmatic choice when IR alone doesn't cut it operationally. The real differentiator is that it eliminates the capex and maintenance burden of external flood-lighting rigs—no power poles, no photocell relays, no winter ice buildup on external fixtures. On a 12-camera retail installation, skipping external lights saves roughly 40 hours of labor and $8k–12k in infrastructure. However, the catch is firmware dependency: not all Hanwha camera models expose the LED module through their REST API or web UI, which means you may be stuck with always-on illumination or VMS-level scheduling workarounds. We've seen integrators burned by assuming accessory control is baked in—it's not, in every model. Confirm with Hanwha FAE support or a pre-sales trial unit that the specific camera variant supports module on/off and intensity adjustment before locking the spec into a large deployment. The white-light output itself is solid—color balance is neutral, no yellowing or blue-shift, which matters for ANPR and facial-recognition pipelines running on the recorded stream.
Technical Highlights:
- 6mm Focal-Length Alignment: The module's beam pattern and intensity are tuned for 6mm optics. Using it on a 4mm or 8mm camera will result in uneven illumination (hot spots or dark corners) and wasted light. Always cross-check the camera's lens specification before ordering.
- White LED vs. IR Trade-off: White light consumes more power and is visible to humans (useful for deterrent zones, problematic for covert observation). On a PoE-constrained network, the module may require a PoE+ or PoE++ rated switch; confirm power-budget math with the camera's datasheet before assuming 802.3af sufficiency.
- OEM Integration: Hanwha designed this module for their own camera housings—it's not a universal LED retrofit. No adapters or third-party brackets will reliably fit. Saves time on the install if your camera is Hanwha; rules it out entirely if it's not.
- Firmware Dependency: Module control (on/off, dimming, scheduling) is firmware-dependent. Some Hanwha models expose accessory control via ONVIF; others require proprietary Hanwha VMS integration. Test with your target VMS before committing to a full fleet rollout.
- Maintenance-Free Operation: No moving parts, sealed against moisture, and rated for standard outdoor IP ratings (confirm with your camera model's combined housing spec). Unlike external flood fixtures, there are no lamps to replace or photocells to clean.
Deployment Considerations:
- Verify camera-model compatibility in Hanwha's accessory matrix—6mm lens is a necessary but not sufficient condition. Some dome and turret variants with 6mm lenses use different accessory ports and will not accept the SPI-BWW0.
- Test white-light output in your actual lighting environment before bulk ordering. Retail stores with existing ambient lighting may find the module unnecessary; dark outdoor parking structures will see measurable benefit. Get a trial unit on-site and run 48 hours of footage comparison (IR-only vs. IR + white LED) before final commitment.
- Plan for power-budget validation: confirm that the host camera's PoE or 12VDC supply can absorb the LED module's draw without voltage sag or reboot. Undersized switches or long cable runs can push marginal power supplies into failure. Run calculations upfront.
- Coordinate with the VMS team on accessory control logic—if the camera firmware doesn't expose on/off control, you'll be running the LED continuously, which wastes power and may not be operationally desired (e.g., covert monitoring zones, intrusion-prevention areas). Establish control strategy before installation.
- If replacing an external flood-light installation, ensure the white LED output is sufficient for your analytics pipeline (ANPR, face detection, etc.). LED illumination is narrower and more directional than a flood fixture; if your cameras are wide-angle (2.8mm or 3.6mm), you may see uneven color wash. Pair the 6mm lens assumption with the optics of your actual deployment.
The SPI-BWW0 is a solid fit for Hanwha-standardized deployments where white-light supplemental illumination reduces external infrastructure and you have confirmed firmware accessory-control support in your target camera model. For integrators building mixed-vendor environments or lacking pre-sales accessory-control validation, this module can become a support liability. Verify compatibility, test on-site, and document the control workflow with the VMS team. See the Hanwha catalog for other compatible modules and camera platforms.
