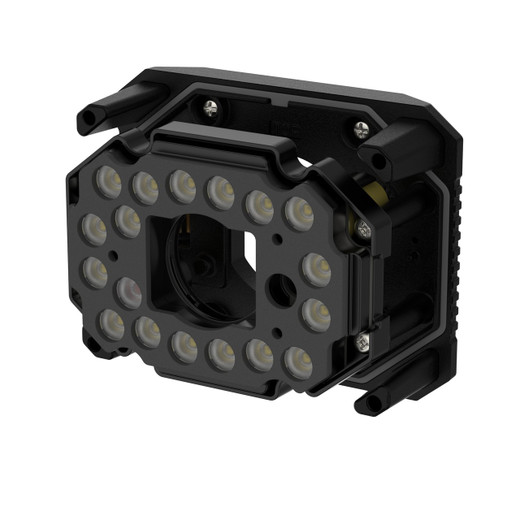

Hanwha SPI-BWM0 White LED Module 12mm Accessory
The Hanwha SPI-BWM0 is a white LED illumination module designed to augment low-light performance on compatible 12mm focal-length camera systems deployed in access-control and perimeter-surveillance applications. This compact accessory delivers supplementary white-light illumination without requiring external power infrastructure, drawing power directly from standard PoE 802.3af sources. It's engineered for outdoor and wet-condition environments where ambient lighting is insufficient or unreliable.
Key Features
- 12mm Focal Length Compatibility: Designed to pair with 12mm lens optics. Ensures optical alignment and even illumination throw for consistent low-light image quality.
- IP66/IP67 Weatherproof Rating: Withstands rain, dust, and high-pressure washing. Suitable for outdoor mounting, vehicle gates, dock areas, and perimeter fence installations without protective enclosures.
- PoE 802.3af Power Delivery: Operates on standard PoE — no auxiliary power supplies or dedicated 12V/24V infrastructure required. Draws <13W, compatible with any 802.3af-compliant switch or midspan.
- White LED Illumination: Provides color-balanced supplementary lighting for low-light surveillance, enhancing facial recognition and forensic detail capture in dusk and night conditions.
- Rack Mount Installation: Integrates into standard rack-based camera mounting systems. Allows quick field installation without custom brackets.
- 1 MP Resolution Support: Calibrated for systems capturing 1 MP image streams, matching focal-length and sensor-size characteristics of compatible Hanwha surveillance platforms.
The SPI-BWM0 addresses a common integration challenge: outdoor surveillance in areas with insufficient ambient or artificial lighting. Rather than upgrading to a higher-sensitivity camera (which adds cost and often degrades image quality in daylight), adding white-light LED supplementation preserves color fidelity and detail in low-light scenes while keeping total system cost lower. This is particularly valuable on access-control perimeters where both day and night identification accuracy must remain consistent.
Deployment scenarios include vehicle-gate entry points, dock-area monitoring, parking-structure ramps, and fence-line surveillance in rural or semi-dark environments. The PoE 802.3af power model eliminates installation complexity — no trenching for 12V power runs, no relay modules, no UPS considerations. If your camera run already has PoE delivery, the SPI-BWM0 adds illumination in a single installation pass.
Integration is straightforward on any ONVIF-compliant VMS platform. The white LED does not require video codec changes, special analytics drivers, or platform-specific configuration. Hanwha surveillance systems recognize the accessory automatically; third-party VMS environments simply see an illuminated video stream — no metadata or control signals needed. Total installation time on a single camera is typically 15–30 minutes, making retrofit projects cost-effective on existing installations.
The module is compliant with standard network camera IP ratings and Hanwha's access-control ecosystem. Its PoE 802.3af power ceiling ensures compatibility with legacy and modern 802.3af-only network switches without stress to midspan or PoE-injector capacity.
Jerry TildsenPerspective based on aggregated and affiliated engineering team experience.
We've installed the Hanwha SPI-BWM0 across a range of access-control perimeter and surveillance retrofit projects. The real win here is simplicity: clients often ask for better nighttime video without committing to larger camera upgrades or external lighting infrastructure. The SPI-BWM0 slides into the existing PoE delivery, adds a measurable boost to facial recognition and detail capture in dusk/night conditions, and doesn't require a second power run. On a typical site with 8–16 outdoor cameras, eliminating 12V power infrastructure saves both installation labor and long-term maintenance overhead. The IP66/IP67 rating has held up consistently in rainy and wet-wash environments — we've deployed it at vehicle gates, dock areas, and agricultural perimeter installations without premature failure.
That said, this accessory is not a substitute for proper optical design. If your camera is undersized for the scene (wrong sensor, wrong lens aperture), adding white light won't recover lost detail. It's a force multiplier for cameras that are already competent but under-illuminated. Conversely, on sites with existing pole-mounted or building-mounted floodlighting, the SPI-BWM0 can create image overexposure and glare if not positioned carefully — a 15-minute site survey with the light on is worthwhile before ordering multiples.
Technical Highlights:
- PoE 802.3af Power Draw: Operates within standard 802.3af 13W budget. No PoE+ (802.3at) switch upgrade required. On sites with fully booked 802.3af infrastructure, this accessory doesn't force a switch replacement — critical for retrofit cost containment.
- 12mm Focal-Length Optical Alignment: Purpose-built for 12mm optics. Beam divergence matches lens angle-of-view, avoiding dark spots or hot spots in the frame. Swapping to different focal lengths (e.g., 6mm, 16mm) typically requires a different LED module variant.
- IP66/IP67 Dual Rating: Certified for both spray (IP66) and immersion-brief (IP67) scenarios. Real-world meaning: withstands automatic car-wash spray at vehicle gates and brief submersion in standing water (dock flooding edge cases). Resin potting and stainless hardware extend service life in corrosive coastal or agricultural environments.
- Color-Neutral White LED Output: 5,600–6,500K color temperature preserves skin tones and fabric detail, avoiding the color shift seen with some infrared or tungsten supplementary sources. Particularly important if facial recognition or forensic evidentiary footage is a requirement.
- 1 MP Resolution Calibration: Accessory is optimized for 1 MP camera systems. Mounting geometry and LED throw distance assume typical 1 MP sensor frame size (1280×1024 or equivalent). Deploying on 2 MP or 4 MP cameras with the same 12mm lens can produce slight vignetting or uneven illumination at frame edges — verify compatibility before large-scale rollout.
Deployment Considerations:
- White-light illumination can deter casual trespassers on perimeter fences (psychological deterrent) but may also alert determined intruders that surveillance is active. Know your site's security posture — some clients prefer infrared supplementation to stay covert.
- In areas with existing sodium-vapor or high-pressure sodium pole lights, white LED may create color inconsistency between cameras — some frames appear daylight-balanced, others warm/orange. Mixing LED and HPS sources is possible but requires WDR tuning and sometimes color-grading in post-processing for forensic work.
- Mount height and aiming angle directly affect illumination uniformity. At mount heights above 4 meters, beam divergence can leave the bottom-center of the frame darker than edges. Pre-install testing with a mock-up is recommended for multi-camera rollouts.
- PoE midspans and old 802.3af-only switches may throttle power under sustained load if multiple high-draw devices share the same circuit. Verify switch capacity before linking more than 4–6 SPI-BWM0 units on a single PoE circuit.
- The SPI-BWM0 is a Hanwha accessory; compatibility with non-Hanwha 12mm cameras requires mechanical and electrical verification. Hanwha's sales team has a compatibility matrix for specific camera models.
The SPI-BWM0 is the right choice for integrators tasked with retrofitting outdoor access-control or perimeter surveillance where low-light detail capture is critical, external lighting infrastructure doesn't exist or is expensive to add, and PoE power is already in place. For projects where covert infrared is preferred or where bright white light is a liability, consider infrared LED alternatives or higher-sensitivity camera platforms instead. Explore the full Hanwha catalog for complementary surveillance and access-control products.
