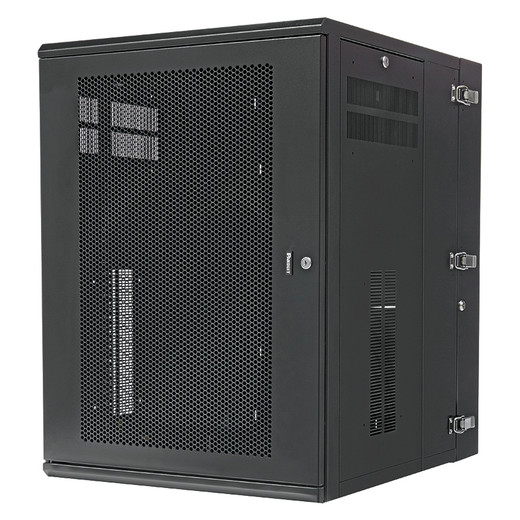

Panduit PZWMC1830P 18U PanZone Wall-Mount Network Cabinet

Overview

The Panduit PZWMC1830P is an 18U PanZone™ wall-mount enclosure built for network closets, IDF rooms, and distributed equipment rooms where floor space is limited but reliable equipment housing is not optional. At 762 mm (30 in) deep with a perforated front door, this cabinet handles structured cabling, patch panels, switches, and access control hardware without the footprint of a full floor-standing rack. It is part of the broader Panduit enclosure and cabling infrastructure line, designed to integrate directly into EIA-standard deployments.

The PZWMC1830P ships in black steel, carries a maximum load rating of 136.08 kg (300 lbs), and meets RoHS compliance — relevant for any deployment subject to environmental materials regulations. If you are spec'ing a wall-mount network cabinet for a commercial building, retail space, or campus IDF, these are the numbers that matter before you pull the trigger.

Key Features

• 18U Capacity at 762 mm Depth: 18 rack units gives you room for a 24-port patch panel, a managed PoE switch, a small NVR or access control panel, and a UPS — all in one enclosure. The 762 mm (30 in) depth handles most 1U/2U active equipment without forcing cable management compromises. Shallower 550 mm cabinets run out of room fast on hybrid copper/fiber runs; this depth eliminates that problem.
• 136.08 kg (300 lb) Load Rating: Most wall-mount enclosures in this class are rated 100–150 lbs — this one handles 300 lbs, which matters when you stack a UPS, a dense patch panel, and a multi-port PoE switch simultaneously. Verify your wall substrate and stud spacing can handle the combined weight of the loaded cabinet before mounting.
• Perforated Front Door: The perforated door provides passive airflow across installed equipment without requiring a blanking-panel strategy to force air movement. For low-to-medium-density deployments without active cooling, this keeps equipment temperatures manageable. If you are running high-wattage PoE switches or dense fiber distribution, plan supplemental ventilation — passive perforation alone will not handle sustained high-BTU loads.
• Front and Rear Hinged Door Access: Both front and rear doors are hinged, providing full access to equipment from either side. In a wall-mount scenario, rear access is critical for cabling — you are not sliding the cabinet off the wall to add a patch cable run. This is the right design for any MACs (moves, adds, changes) environment.
• Removable Side Panels: Side panels are designed for removal, which opens lateral cable routing paths without disturbing mounted equipment. Useful when you need to run horizontal cable between this cabinet and an adjacent distribution point or when conduit entry is from the side rather than the top or bottom.
• EIA 483 mm Rack Compatibility: Accepts standard 19-inch EIA rack equipment and mounting panels — no proprietary tooling, no custom cage nuts beyond standard M6. Any switch, patch panel, or 1U device in your inventory mounts without adapter hardware.
• RoHS Compliant Steel Construction: The all-steel chassis meets RoHS materials standards, which satisfies procurement requirements on municipal, healthcare, and education contracts where environmental compliance documentation is required. The black finish is consistent with standard equipment room aesthetics.
• 25 in Wide × 34 in Tall Exterior Footprint: The 635 mm (25 in) exterior width and 863.6 mm (34 in) height define the wall patch you need — relevant for planning conduit clearance and adjacent equipment spacing before the cabinet ships to site.

Integration and Compatibility

The PZWMC1830P integrates directly into any standard EIA 19-inch rack ecosystem. It pairs naturally with Panduit patch panels and horizontal cable managers, and it accommodates third-party 1U/2U switches, NVRs, access control panels, and UPS units without modification. The cabinet is a logical housing solution alongside a managed PoE switch deployment where you need a contained, lockable enclosure for the network core of a single floor or zone.

For security system integrators, this enclosure is sized to house a mid-range NVR, a PoE switch, and a power distribution unit in the same locked cabinet — reducing the number of separate mounting points in an IDF while keeping all active components accessible for service. Review your network enclosure selection guide if you are comparing wall-mount versus floor-standing options for your project density requirements.

Frequently Asked Questions

Q: What is the maximum load capacity of the PZWMC1830P?

A: The PZWMC1830P is rated for a maximum load of 136.08 kg (300 lbs), which accommodates dense switch, patch panel, and UPS configurations typical of IDF and network closet deployments.

Q: What is the depth of the PZWMC1830P, and will it fit standard 1U rack equipment?

A: The interior depth is 762 mm (approximately 30 inches), which fits the majority of standard 1U and 2U active network equipment including managed switches, patch panels, NVRs, and 1U UPS units without cable management compromise.

Q: Does the PZWMC1830P accept standard 19-inch EIA rack equipment?

A: Yes. The cabinet is designed to accept standard EIA 483 mm (19-inch) rack equipment and mounting panels, consistent with industry-standard rack hardware and cage nut specifications.

Q: Is the PZWMC1830P RoHS compliant?

A: Yes. The PZWMC1830P meets RoHS compliance standards, which satisfies environmental materials requirements on municipal, healthcare, education, and other regulated procurement contracts.

Q: What are the exterior dimensions of the PZWMC1830P?

A: The exterior width is 635 mm (25 in) and the exterior height is 863.6 mm (34 in). Plan wall clearance and conduit routing around these dimensions before installation.

Q: Does the PZWMC1830P have rear door access?

A: Yes. Both the front and rear doors are hinged, providing full equipment access from either side — critical for cabling moves, adds, and changes in a wall-mount installation where sliding the cabinet off the wall is not practical.

James Everett

The spec that most integrators underestimate on this cabinet is the 136.08 kg (300 lb) load rating. On the PZWMC1830P, that headroom lets you build out a real IDF stack — 24-port PoE switch, 24-port patch panel, a 1U rack UPS, and still have margin — without worrying whether the enclosure structure will deflect under sustained load. Most wall-mount cabinets at this price point cap at 100–150 lbs; this one doubles that, which changes what you can actually put inside it.

Technical Highlights:

• 762 mm (30 in) Interior Depth: Handles full-depth 1U and 2U switching hardware without requiring front-only cable routing. Eliminates the depth compromise that forces integrators onto shallower 550 mm units and then fight cable bend radius behind equipment.
• Hinged Front and Rear Doors: Both doors are hinged — not removable panels that require two technicians and a storage spot on site. In a live network closet, this is the difference between a 10-minute cable swap and a 45-minute ordeal.
• RoHS-Compliant Steel: Relevant on government, education, and healthcare bids where environmental compliance documentation is a line item on the submittal checklist — not an afterthought.

Deployment Considerations:

• Verify your wall substrate before specifying this cabinet loaded. At 136 kg capacity, a full build-out in a steel-stud drywall partition requires a proper backing plate or dedicated blocking — standard drywall anchors are not rated for this load configuration.
• The perforated door provides passive cooling, but if you are installing a high-wattage PoE switch (60W+ per port budget, dense 24-port deployments) you will want to plan for supplemental ventilation or an active fan panel. Passive perforation alone will not prevent thermal throttling in a sealed closet at full switch load.

The PZWMC1830P is the right call for a commercial IDF deployment — retail branch, school floor, or multi-tenant office — where you need a lockable, code-compliant enclosure that handles a real switch-plus-UPS stack without the floor space of a full 42U frame. It is not the answer for high-density data center edge nodes where active cooling and deeper cable management are required.
