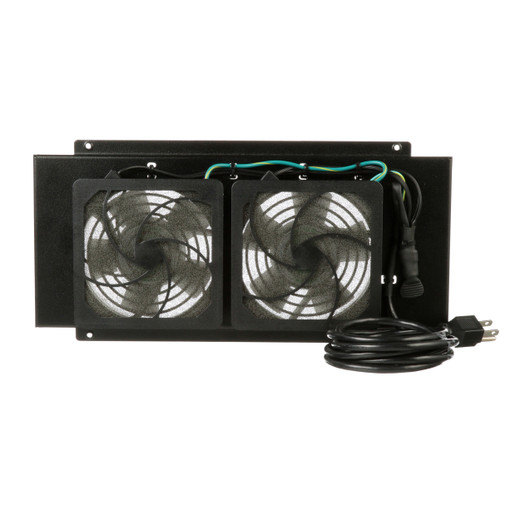

Panduit PZWMCFKHF-E PanZone Wall-Mount Cabinet High-Airflow Fan Kit
Overview
The Panduit PZWMCFKHF-E is a 120 CFM high-airflow fan kit built for the Panduit PanZone wall-mount enclosure line. When network equipment packed into a wall-mount cabinet starts running hot — switches, patch panels, small UPS units — this fan kit bolts directly to the side of the cabinet and forces 120 cubic feet per minute of air through the enclosure, pulling heat away before thermal throttling or premature hardware failure becomes a problem. It is sold as a single kit (package quantity: 1) and ships with a Euro/Schuko plug for European mains installations.
The PZWMCFKHF-E (often searched as PZWMCFKHF E) is the high-flow variant in the PanZone accessory lineup, specified when standard passive ventilation or a lower-CFM option can't keep pace with the heat load inside a densely populated enclosure.
Key Features
- 120 CFM Airflow: 120 cubic feet per minute is a meaningful thermal budget for a wall-mount cabinet — enough to handle a populated 12U enclosure with active switching gear. If you're running PoE switches, small servers, or UPS hardware in the same box, 120 CFM gives you headroom rather than just keeping pace.
- Direct Side-Mount Installation: The fan kit screws directly to the side of compatible PanZone wall cabinets (PZWMC** series). No adapter plates, no fabricated brackets — the bolt pattern is purpose-designed for the enclosure family, which means the install is straightforward and the fit is sealed, not improvised.
- Euro Plug (Schuko): Ships with a European mains connector — right for EU/EEA deployments where local electrical standards require it. If you're provisioning a rack room in Germany, France, or elsewhere in continental Europe, no rewiring or plug adapters needed.
- Dedicated PanZone Compatibility: Designed exclusively for the PanZone PZWMC** wall-mount cabinet series. This isn't a universal fit — it's engineered for those enclosures specifically, which means mechanical alignment, airflow path, and mounting geometry are all correct out of the box.
- Black Finish: Matches the standard PanZone enclosure color. Minor point, but in data center anteroom or open office installations where aesthetics matter, the matched finish avoids the mismatched-hardware look that improvised cooling solutions often produce.
- Compact Form Factor — 14.19" H × 6.94" W: At 14.19 inches tall and 6.94 inches wide, the fan kit fits within the footprint of a standard wall cabinet side panel. It doesn't protrude significantly beyond the cabinet envelope, which matters in tight-clearance installations like IDF closets.
Integration & Compatibility
The PZWMCFKHF-E is designed for use with PanZone wall-mount cabinets in the PZWMC** series. Verify your specific cabinet model number begins with PZWMC before ordering — this fan kit is not cross-compatible with Panduit floor-standing enclosures or third-party cabinets. For a complete cabinet thermal management solution, pair this fan kit with appropriate blanking panels to direct airflow through active equipment rather than short-circuiting through empty rack units. The Euro plug designation means this unit is configured for 230V/50Hz European mains — confirm your local electrical standard before deploying.
Frequently Asked Questions
Q: Which cabinets is the PZWMCFKHF-E compatible with?
A: The PZWMCFKHF-E is designed for use with Panduit PanZone wall-mount cabinets in the PZWMC** series. The manufacturer documentation explicitly states it mounts directly to the side of those enclosures. It is not listed as compatible with floor-standing or non-PanZone enclosures.
Q: What does the "E" suffix in PZWMCFKHF-E indicate?
A: The "E" suffix designates the Euro plug (Schuko) version of the fan kit, configured for European mains installations. If you need a different plug configuration, verify the correct variant for your region before ordering.
Q: How is the PZWMCFKHF-E installed?
A: The fan kit bolts directly to the side of compatible PanZone wall-mount cabinets. No adapter plates or secondary brackets are required — the mount is integrated with the PZWMC** cabinet design.
Q: What is the airflow rating of the PZWMCFKHF-E?
A: The PZWMCFKHF-E is rated at 120 CFM (cubic feet per minute), designated as a high-airflow variant within the PanZone fan kit lineup.
Q: Does the PZWMCFKHF-E ship as a single unit or a multi-pack?
A: It ships as a single kit — package quantity is 1.
The PZWMCFKHF-E is the spec to reach for when you've got a PZWMC-series wall cabinet that's running dense — PoE injectors, managed switches, patch panels all in one box — and passive ventilation is no longer keeping thermals in check. At 120 CFM, this kit moves enough air to make a real difference in a 12U or smaller enclosure; it's not a token cooling measure.
Technical Highlights:
- 120 CFM High-Airflow Rating: Moves substantially more air than lower-rated fan kits in the PanZone line — the right call when equipment density is high or the ambient room temperature is elevated. Under-specifying cooling in a wall cabinet is one of the most common causes of premature switch failure in IDF closets.
- Side-Mount Bolt-On Design: Screws directly to the PZWMC** cabinet side panel — no field fabrication, no improvised brackets. The mechanical fit is purpose-engineered, so airflow is directed through the enclosure rather than leaking around a poorly fitted generic fan.
- Euro Plug Configuration: The "E" suffix is non-negotiable for EU/EEA sites — this unit ships ready for Schuko outlets. Don't order the non-E variant for a European installation and expect to field-swap the plug; order the right SKU from the start.
Deployment Considerations:
- Confirm your cabinet model starts with PZWMC** before ordering — this fan kit is not listed as compatible with Panduit floor-standing enclosures or any third-party cabinet. The mounting geometry is specific to the PanZone wall-mount series.
- For maximum thermal effectiveness, pair the PZWMCFKHF-E with blanking panels on empty rack units. Without them, the fan pulls air through the path of least resistance — empty spaces — rather than through equipment, which significantly reduces the real-world cooling benefit regardless of CFM rating.
Best fit: a European-mains IDF closet running a populated PanZone wall cabinet where passive cooling has already proven insufficient and you need a bolt-on solution that doesn't require modifying the enclosure.
