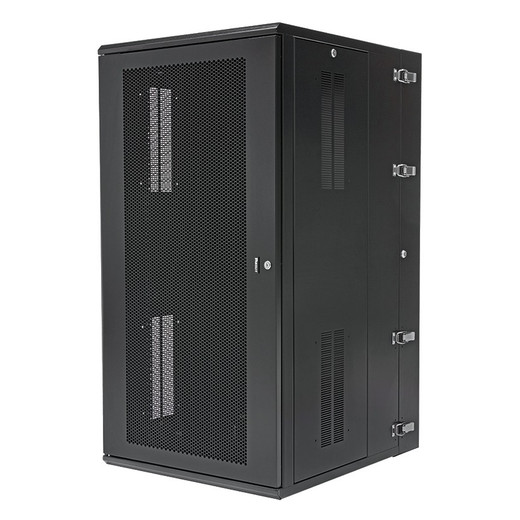

Panduit PZWMC2630P 26U Wall-Mount Network Enclosure

Overview

The Panduit PZWMC2630P is a 26U PanZone wall-mount cabinet built for network closets, IDF rooms, and distributed equipment zones where floor space is constrained but equipment density is not. At 762 mm (30 in) deep with a 158.76 kg (350 lb) load rating, this is not a shallow-duty enclosure — it handles fully populated patch panels, switches, and edge compute gear without compromise. The steel construction, perforated front and rear doors, and removable side panels address the core challenge of wall-mount deployments: keeping equipment accessible and thermally managed without pulling it off the wall every time you need to touch a cable.

Key Features

• 26U Capacity: 26U of EIA 483 mm-compliant rack space accommodates standard 1U–4U equipment — enough for a full IDF build-out including patch panels, a managed switch stack, and a UPS, without needing a floor-standing cabinet.
• 762 mm (30 in) Depth: Deeper than most wall-mount competitors, this depth accommodates full-size 1U servers, deep switches, and cable management arms without forcing you to leave equipment partially hanging. Shallow cabinets at 18–24 in often force compromise here.
• 158.76 kg (350 lb) Load Rating: The steel frame handles a fully loaded enclosure — critical when you are populating all 26U with switching, UPS, and compute. Under-rated cabinets flex, stress wall anchors, and create long-term reliability problems.
• Perforated Front and Rear Doors: Passive airflow through perforated steel reduces heat buildup without requiring blanking panels or active fans for light-to-moderate loads. Both doors are hinged for full swing-open access — no door removal needed during MACs (moves, adds, changes).
• Removable Side Panels: Side panels pull off independently, exposing lateral cable routing paths. In congested closets where horizontal cable managers fill fast, side access prevents cable stress and makes horizontal runs manageable without disturbing rack gear.
• RoHS Compliant / EIA-Standard Rail Spacing: EIA 483 mm rail spacing means any standard rack-mount equipment installs without adapter kits. RoHS compliance satisfies procurement requirements for government, education, and enterprise environments with material restriction mandates.
• Steel Construction, Black Finish: Commercial-grade steel provides structural rigidity for wall anchoring. The black finish is standard for IT/AV equipment rooms — blends with other rack gear and does not show dust or cable management marks.

Integration and Compatibility

The PZWMC2630P accepts EIA 483 mm rack-mount equipment and mounting panels, covering the full range of 19-inch rackmount networking, AV, security, and edge compute gear. It pairs naturally with PoE network switches, patch panels, cable managers, and UPS units in a self-contained IDF or security closet build. For larger deployments requiring floor-standing capacity, review the broader Panduit enclosure catalog for matched rack accessories. If you are sourcing an enclosure for a surveillance head-end or access control panel room, see the NVR and server rack options to size appropriately before committing to a wall-mount form factor. Wall-mount enclosures like this suit distributed node deployments — PoE switch closets feeding IP camera runs are a common fit.

Frequently Asked Questions

Q: What is the rack unit capacity of the PZWMC2630P?

A: The PZWMC2630P provides 26U of EIA 483 mm-compliant rack space, suitable for standard 19-inch rack-mount equipment including switches, patch panels, and UPS units.

Q: What is the maximum load capacity of this cabinet?

A: The cabinet is rated to 158.76 kg (approximately 350 lbs), making it suitable for fully populated configurations including heavy switching and UPS equipment.

Q: How deep is the PZWMC2630P?

A: The internal depth is 762 mm (30 inches), accommodating full-size rack-mount equipment including deep 1U switches and servers without overhang.

Q: Is the PZWMC2630P RoHS compliant?

A: Yes, the PZWMC2630P meets RoHS compliance standards, satisfying material restriction requirements common in government, education, and enterprise procurement.

Q: Does this cabinet support standard 19-inch rack equipment?

A: Yes. The rails are spaced to EIA 483 mm standard, accepting any standard 19-inch rack-mount equipment and mounting panels without adapter hardware.

Q: What are the overall external dimensions of the PZWMC2630P?

A: The cabinet measures 48.1 inches (1,224.3 mm) in height and 25 inches (635 mm) in width. Depth is 762 mm (30 inches). Verify wall clearance and stud spacing before installation.

Marty Allison

The spec that separates the PZWMC2630P from lightweight wall-mount options is the 158.76 kg load rating combined with 762 mm depth — most budget wall-mounts cap at 100–120 kg and 18–24 in depth, which sounds fine until you drop in a real switch stack and a UPS. I have seen teams buy shallow cabinets and end up with equipment hanging out the back and wall anchors under stress within a year.

Technical Highlights:

• 26U / 158.76 kg Capacity: At 26U and 350 lbs rated, this cabinet handles a fully loaded IDF — patch panels, PoE switch stack, and a 2U UPS — without requiring a floor footprint.
• 762 mm Depth: Accommodates deep 1U managed switches (many run 440–480 mm body depth) and cable management arms without the rear door being a constant obstacle or forcing you to mount equipment at an angle.
• Perforated Door Airflow: Passive convection through perforated front and rear panels handles light-to-moderate heat loads. For dense PoE switch deployments generating sustained heat, budget for a blanking panel strategy or an add-on fan kit — perforated alone is not a substitute for active cooling at high density.

Deployment Considerations:

• At 48.1 in tall and 25 in wide, confirm wall stud layout and blocking before ordering — a 350 lb populated cabinet requires solid structural anchoring, not just drywall anchors. Concrete or metal stud walls need appropriate hardware not included.
• The PanZone line is designed for distributed zone wiring closets, not main MDFs. If your head-end needs more than 26U or exceeds the load spec, this is the wrong product — step up to a floor-standing open-frame or enclosed rack in the same family.

The PZWMC2630P is the right call for a distributed IDF closet or security equipment room where you need genuine rack density on the wall — specifically edge switching nodes feeding IP camera runs or access control panels in multi-floor commercial builds where a floor-standing rack is not an option.
