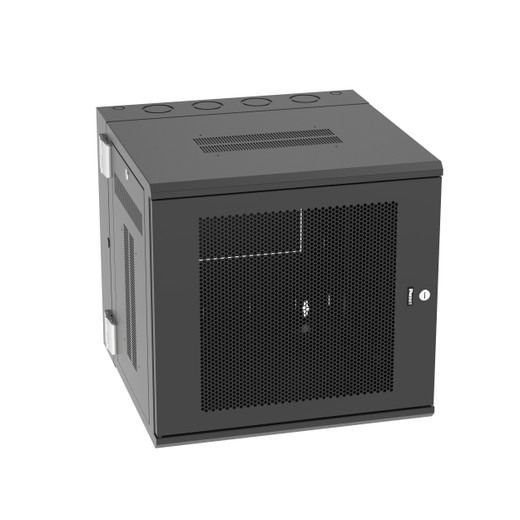

Panduit PZWMC12P PanZone 12U Wall-Mount Network Enclosure

Overview

The Panduit PZWMC12P is a 12U, steel wall-mount enclosure from the PanZone™ line, designed for structured cabling closets, IDF rooms, and distributed network edge deployments where floor space is limited but reliable, accessible equipment housing is non-negotiable. At 635mm (25 in.) wide with a 604.5mm (23.8 in.) nominal height, it fits standard 483mm (19 in.) EIA rack-mount equipment and patch panels — the two things most installers need to verify before ordering. Its perforated front door and hinged front-and-rear door design make moves, adds, and changes practical without pulling the unit from the wall. If you're scoping out Panduit infrastructure solutions for a distributed wiring closet project, the PZWMC12P is the wall-mount tier of that lineup.

Key Features

• 12U Rack Capacity: Twelve rack units accommodate a typical IDF stack — a managed PoE switch, patch panel, and a few cable management accessories — in a compact footprint. No wasted space, no oversized enclosure pulling away from the wall.
• 635mm Depth: The 635mm (25 in.) interior depth handles full-depth switches and routers without modification. Shallow-depth wall cabinets often force appliance selection based on what fits rather than what performs — this one removes that constraint for most network switch form factors.
• Perforated Front Door: The perforated panel allows passive airflow across the front face of installed equipment, reducing thermal buildup without requiring active fan trays in low-density deployments. In a 12U wall cabinet at typical office ambient temps, this matters for always-on PoE switches that run warm.
• Hinged Front and Rear Access: Full equipment access from both the front and rear simplifies cable dressing, fiber patching, and troubleshooting. You're not working blind through a fixed side opening or dismounting the cabinet for rear access — a real time-saver on installs where the unit is mounted above head height.
• Removable Side Panels: Side panels pull off to provide a clean cable-routing path from adjacent conduit or tray. Useful on installs where horizontal cable management feeds from the sides rather than the top or bottom of the enclosure.
• Steel Construction, 113.4kg Load Rating: The all-steel body supports up to 113.4 kg (250 lbs) of installed equipment — substantially more than the typical 50–75 kg limit on lightweight flat-pack alternatives. This matters if the enclosure houses dense patch panels plus a full-depth core switch rather than just a lightweight access switch.
• 483mm EIA-Standard Rack Rails: Accepts standard 19 in. rack-mount equipment and patch panels out of the box. No adapter kits, no proprietary rail spacing — any EIA-compliant device mounts directly.
• RoHS Compliance: Meets RoHS requirements, which is a procurement checkbox for many enterprise and government projects. Verify your project's compliance scope, but this is the baseline most require.
• Temperature and Humidity Management: The enclosure design provides managed airflow to maintain appropriate operating conditions for the installed network gear — critical when the cabinet is sealed inside a wall niche or mechanical room with limited ambient circulation.

Integration & Compatibility

The PZWMC12P integrates into structured cabling infrastructures using standard EIA 483mm rack-mount hardware. It accepts all standard 1U, 2U, and deeper panels and appliances without modification. The cabinet works alongside the broader Panduit cabinet and enclosure line, and accessory blanking panels, cable managers, and PDUs from any EIA-compliant vendor will fit the rail spacing. Pair it with a managed PoE switch and a horizontal cable manager for a clean, compliant IDF installation. The wall-mount form factor is appropriate for remote telecom rooms, retail back-of-house wiring closets, warehouse floor distribution points, and anywhere a full floor-standing rack would be impractical.

What's in the Box

• 1x Panduit PZWMC12P PanZone 12U wall-mount enclosure with perforated front door, black

Frequently Asked Questions

Q: What is the rack unit capacity of the PZWMC12P?

A: The PZWMC12P provides 12U of usable rack space, accepting standard 483mm (19 in.) EIA rack-mount equipment and patch panels.

Q: What is the maximum load capacity of the PZWMC12P?

A: The enclosure is rated for up to 113.4 kg (250 lbs) of installed equipment, which comfortably handles a fully loaded switch and dense patch panel configuration.

Q: Does the PZWMC12P have access from both the front and rear?

A: Yes. The hinged front and rear doors provide full access to installed equipment from both sides, simplifying cable management and moves, adds, and changes without dismounting the enclosure.

Q: Is the PZWMC12P RoHS compliant?

A: Yes. The PZWMC12P meets RoHS compliance requirements, as stated in its published standards documentation.

Q: Will standard 19-inch rack-mount equipment fit in the PZWMC12P?

A: Yes. The enclosure accepts equipment and patch panels designed for 483mm (19 in.) EIA standard rack rails — no adapter kits required.

Q: What is the interior depth of the PZWMC12P?

A: The interior depth is 635mm (approximately 25 in.), which accommodates full-depth network switches, routers, and other appliances without modification.

Ted Perry

The PZWMC12P is a wall-mount enclosure I'd specify without hesitation for distributed IDF closets where floor space is genuinely constrained. The 113.4 kg load rating is the spec that separates it from lightweight alternatives — that's enough capacity to install a full-depth managed switch, a 24-port copper patch panel, and a fiber shelf without worrying about the cabinet pulling away from the wall anchors over time.

Technical Highlights:

• 635mm Depth: Handles full-depth enterprise switches — most 1U managed PoE switches run 440–480mm deep, so you have real working clearance at 635mm rather than the tight fit you get in a 400mm-depth cabinet.
• Dual Hinged Access: Front and rear hinged doors are a genuine time-saver on installs where the cabinet is mounted above 6 feet. You don't need a second technician holding the door open or a ladder repositioned to reach the rear panel — open, work, close.
• Perforated Front Door: Passive airflow through the perforated panel keeps a 12U switch stack running cooler than a solid-door alternative, which matters in a mechanical room or above-ceiling installation where ambient temperature isn't controlled.

Deployment Considerations:

• Confirm wall anchor point load ratings before installation — the 113.4 kg equipment limit assumes the enclosure itself is properly mounted to structural backing. A drywall-only mount is not appropriate for a fully loaded cabinet at this weight class.
• The overall height of 604.5mm (23.8 in.) is the enclosure body dimension, not the rough opening clearance needed — factor in the door swing arc and bottom cable entry space when siting this in a tight mechanical alcove.

The PZWMC12P is the right call for retail chain rollouts, branch office IDF rooms, and warehouse floor distribution points where a full-height floor cabinet is impractical but you still need the depth and load capacity to house real managed switching infrastructure — not just a small unmanaged device.
