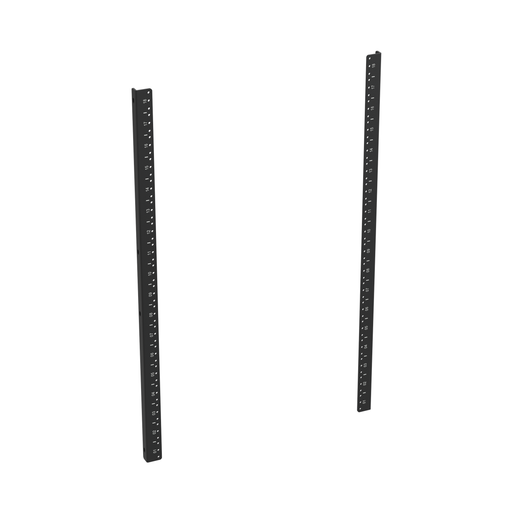

Panduit PZWMC18RR Wall Mount Cabinet 18RU Rear Rail Kit

Overview

The Panduit PZWMC18RR is an 18RU rear rail kit designed specifically for the PanZone® wall-mount cabinet line, extending usable cabinet depth to support network equipment up to 26.8 inches deep. If you're installing deeper switches, patch panels, or AV gear in a wall-mount enclosure and the stock front rails aren't enough to stabilize the equipment, this two-rail kit closes that gap without requiring a new cabinet or a field-fabricated solution. The kit ships in black to match the PanZone® cabinet finish and is compatible exclusively with PanZone® PZWMC** 18RU wall-mount cabinets — verify your cabinet model before ordering.

For teams building out network infrastructure in telecom rooms, wiring closets, or edge network deployments, this Panduit rear rail kit integrates directly with the Panduit PanZone® cabinet ecosystem so you're not improvising support hardware. Browse the full cabinets, racks, and enclosures category for companion mounting and cable management options.

Key Features

• Supports Equipment Up to 26.8 Inches Deep: Standard wall-mount cabinets often only front-mount equipment, leaving deeper chassis unsupported and at risk of stress on the front rack ears. This rear rail kit extends the support footprint to 26.8 inches — enough to properly two-point mount most 1U and 2U managed switches, fiber patch enclosures, and media converters that exceed shallow-depth form factors.
• 18RU Capacity, Two Rails Included: The kit provides two full-length equipment rails matched to the 18RU cabinet height. Both rails install together, giving you a complete rear mounting solution in a single part number — no sourcing a second rail separately or dealing with mismatched rail heights.
• Designed for PanZone® PZWMC** 18RU Cabinets: This is a purpose-built accessory, not a universal rail. It integrates with the PZWMC cabinet's existing mounting points and hardware channels, which means no drilling, no adapter brackets, and no guesswork about clearance. If you're building out a PanZone® wall cabinet deployment, this is the correct rear rail for the 18RU chassis.
• Black Powder-Coat Finish: Matches the standard PanZone® cabinet finish for a consistent appearance in finished spaces — relevant in client-visible IT rooms, retail back-office environments, or any installation where cabinet aesthetics matter alongside function.
• Overall Width 1.3 Inches (33mm): The rail itself is narrow by design — it provides vertical mounting structure without consuming usable horizontal space inside the cabinet, keeping clearance available for cable management and airflow on the sides of installed equipment.
• Overall Height 29.8 Inches (756mm): The rail height corresponds to the full usable rack unit span of an 18RU cabinet, ensuring rail ears align with standard EIA-310 rack unit spacing across all 18 RUs.
• Sold as a Single Kit (Package Qty: 1): One PZWMC18RR contains both rails needed for a complete rear-mount installation. Carton quantity is 9 for bulk project ordering — useful when deploying multiple cabinets across a site without repeat line items.

Integration & Compatibility

The PZWMC18RR is explicitly designed for use with PanZone® Wall-Mount Cabinets (PZWMC**) 18RU. It is not a universal rail and should not be ordered for other cabinet series or rack heights without confirming compatibility with Panduit's cabinet specifications. If you are deploying equipment in a wall-mount cabinet outside the PanZone® line, verify mounting hole pattern and rail channel dimensions before specifying this kit. For 18RU PanZone® builds, pair this rear rail kit with appropriate cable management accessories to keep patch runs organized once deeper equipment is mounted at both front and rear.

The competitor cross-reference for this kit is part number 12787-536, which may be useful when migrating a spec from a prior bid or RFQ.

What's in the Box

• 2x Equipment Rails (18RU, black)

Frequently Asked Questions

Q: Which cabinets is the PZWMC18RR compatible with?

A: The PZWMC18RR is designed exclusively for use with Panduit PanZone® Wall-Mount Cabinets in the PZWMC** series, specifically the 18RU models. It is not a universal rear rail and should not be used with other cabinet brands or rack heights without verifying compatibility.

Q: What is the maximum equipment depth the PZWMC18RR supports?

A: When installed, this rear rail kit supports network equipment up to 26.8 inches (approximately 681mm) deep — giving you proper two-point mounting for deeper switches, fiber enclosures, and AV equipment that would otherwise only be front-mounted.

Q: How many rails are included in one PZWMC18RR kit?

A: Each kit includes 2 equipment rails, providing a complete rear mounting solution for one 18RU PanZone® wall-mount cabinet. No additional rails need to be sourced separately.

Q: Does the PZWMC18RR require drilling or custom hardware to install?

A: No. The PZWMC18RR is a purpose-built accessory that integrates with the existing mounting channels of PanZone® PZWMC** 18RU cabinets. Installation uses the cabinet's designed attachment points without field modification.

Q: What finish does the PZWMC18RR come in?

A: The rails are finished in black to match the standard PanZone® wall-mount cabinet finish.

Q: Can I order the PZWMC18RR in bulk for a multi-site deployment?

A: Yes. The carton quantity is 9 units, making it straightforward to spec and order for deployments involving multiple 18RU PanZone® wall cabinets across a site or campus.

Ted Perry

The PZWMC18RR solves a specific problem I see on almost every structured cabling project that uses wall-mount cabinets: the integrator specs a managed switch or fiber chassis that runs 20-plus inches deep, gets to the job site, and realizes the front-mount-only configuration leaves the back of the equipment hanging in free air. This rear rail kit extends support to 26.8 inches of depth, which covers the majority of 1U and 2U commercial switches and patch enclosures you'd actually deploy in a PanZone® 18RU wall cabinet.

Technical Highlights:

• 26.8-Inch Depth Support: That 26.8-inch figure isn't a ceiling for rack depth — it's the rear rail's reach from the front of the cabinet. Check your switch chassis depth against this number before finalizing the BOM. Most 1U managed switches in the 24-48 port class fall under this threshold, but some high-density models with rear-facing PSU bays do not.
• Two Rails Per Kit: The kit is complete — both rails ship together as one PZWMC18RR. This matters on multi-cabinet projects where partial kits create BOM errors. Order one kit per 18RU cabinet and you're covered.
• EIA-310 Compatible Rail Height (29.8 inches / 756mm): The rail height is sized to the full 18RU span. Standard rack unit spacing is preserved across all 18 positions, so you won't have alignment issues when mounting equipment at the top and bottom of the same cabinet.

Deployment Considerations:

• This kit is not interchangeable across the PanZone® cabinet line — the PZWMC18RR is specifically for 18RU PZWMC** cabinets. If you're deploying a mix of 12RU and 18RU wall cabinets on the same project, verify the correct rear rail part number for each cabinet size separately before purchasing.
• The rail width is 1.3 inches (33mm), which is intentionally narrow to preserve internal clearance. That said, once deeper equipment is mounted front and rear, side-entry cable management becomes more constrained — plan your patch runs before the rails go in, not after.

This kit is the right call on edge network deployments in retail, warehouse, or campus secondary IDF closets where wall-mount PanZone® 18RU cabinets are already in the design and the equipment depth spec exceeds what a front-mount-only configuration can safely handle.
