Viking K-1270-IP 12-Button VoIP Entry Phone Proximity Reader PoE

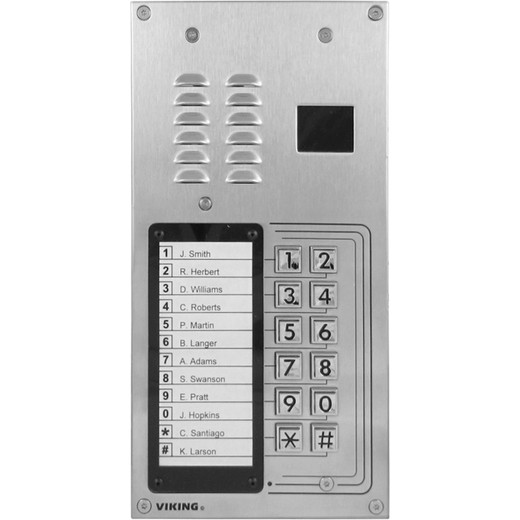

Viking Electronics K-1270-IP VoIP Entry Phone with Proximity Card Reader

The Viking Electronics K-1270-IP is a 12-button VoIP apartment entry phone system that combines a built-in auto dialer, proximity card reader, and a vandal-resistant 14-gauge 316 stainless steel faceplate into a single PoE-powered flush or surface-mount unit. For integrators deploying intercom and entry systems in multi-tenant residential, commercial lobbies, or controlled-access facilities, the K-1270-IP (often searched as K 1270 IP) eliminates the need for a separate access credential reader — the proximity reader and VoIP dialer share one faceplate, one network drop, and one power source.

Key Features

• 14-Gauge 316 Stainless Steel Faceplate with Laser-Etched Graphics: 316-grade stainless resists corrosion from salt air, cleaning chemicals, and outdoor exposure better than the more common 304 grade. Laser etching means button labels won't fade, peel, or become illegible after years of daily use — important for a directory panel that residents interact with every day.
• Louvered Speaker and Mic Screen: The louvered design protects the audio components from direct spray, vandalism attempts, and debris, while maintaining clear two-way voice communication between the entry point and the called party. This matters at unsupervised entrances where audio quality is the primary user interaction.
• Built-In Proximity Card Reader: Residents and staff with valid proximity credentials can enter without placing a call, reducing call volume on the system and allowing keyless entry for frequent users. The reader is integrated at the faceplate level — no separate reader housing, no additional wiring run, no second rough-in box.
• 12-Button Auto Dialer Directory: The 12-button keypad supports a built-in directory, allowing visitors to dial individual units directly. This is the right form factor for smaller multi-tenant buildings where a scrolling touchscreen directory would be over-engineered and harder to maintain.
• IEEE 802.3af / 802.3at / 802.3bt PoE — 4W Class 1 Draw: At 4 watts, the K-1270-IP draws less than any Class 1 PoE budget line item you'll encounter. A standard 802.3af port delivers up to 15.4W — this device uses roughly 26% of that headroom, meaning it won't strain even a modest PoE switch and doesn't require a dedicated injector unless your panel lacks PoE ports entirely.
• 100Mbps Full-Duplex Network Port: Sufficient bandwidth for SIP audio streams and door control signaling. VoIP entry phone audio is not bandwidth-intensive; 100Mbps full-duplex ensures no packet contention even when the building network is under load during business hours.
• Relay Output — 2A @ 30VDC / 250VAC Max: The onboard relay can directly drive most standard electric strikes and magnetic locks rated within this envelope. At 2A/30VDC, you can release a typical electric strike (which draws 200–500mA) without an intermediate relay board — one less component in the door release circuit, one less failure point.
• 12VDC Auxiliary Output — 50mA Max: A 50mA auxiliary output is available for powering small peripheral devices at the door — proximity reader power in a split-reader configuration, an LED indicator, or a small strike status sensor. Note the 50mA ceiling: this is not rated to power high-draw accessories.
• Flush Mount via Included Rough-In Box or Surface Mount via Optional VE-5x10: The rough-in box ships with the unit for new-construction or renovation installations where the wall cavity is accessible. For retrofit installations on finished walls, the optional VE-5x10 surface-mount enclosure avoids opening drywall. Both mounting paths use the same faceplate.
• Heavy-Duty Metal Keypad: The keypad assembly is metal construction — not membrane, not rubber — consistent with the vandal-resistant design intent. Metal keypads survive repeated impact attempts and maintain reliable contact registration in high-use environments.

Integration and Compatibility

The K-1270-IP operates as a SIP endpoint on your IP network, which means it integrates with any SIP-compatible PBX, hosted VoIP platform, or SIP server that can route calls to tenant extensions. No proprietary call processor is required. The Viking Electronics entry phone line is designed for straightforward SIP provisioning — standard network configuration applies. PoE sourcing via IEEE 802.3af, 802.3at, or 802.3bt means compatibility with the vast majority of enterprise and SMB PoE switches and injectors currently deployed in the field. The relay output interfaces directly with standard access control hardware: electric strikes, magnetic locks, and door controllers that accept a dry-contact trigger signal within the 2A/30VDC or 2A/250VAC envelope.

For apartment and multi-tenant deployments, the combination of VoIP directory dialing and proximity card access in a single unit simplifies the credential topology — residents carry one card credential that works at the entry point without triggering a call every time. Visitors use the 12-button directory to ring individual units over SIP. Both workflows are handled by the same VoIP entry system hardware, on a single network drop.

Frequently Asked Questions

Q: What PoE standard does the K-1270-IP require, and what wattage does it draw?

A: The K-1270-IP is compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE. It draws 4 watts and is classified as a Class 1 PoE device — well within the budget of any standard 802.3af port (which delivers up to 15.4W).

Q: Can the K-1270-IP be surface-mounted on a finished wall without cutting into drywall?

A: Yes. The unit includes a rough-in box for flush mounting in new construction. For surface mounting on finished walls, the optional VE-5x10 enclosure accommodates the unit without requiring wall cavity access. The VE-5x10 is sold separately.

Q: What type of door hardware can the built-in relay control directly?

A: The relay output is rated at 2A maximum at 30VDC or 250VAC. This covers most standard electric strikes and magnetic locks. Verify your lock hardware's current draw against this rating before wiring direct — higher-draw locks will need an intermediate relay or power supply.

Q: Does the K-1270-IP work with a standard SIP PBX or hosted VoIP service?

A: The K-1270-IP is a SIP-based VoIP device. It registers to any SIP-compatible PBX or hosted VoIP platform that can route calls to tenant extensions. No proprietary Viking call server is required.

Q: What is the faceplate material and why does it matter for outdoor use?

A: The faceplate is 14-gauge 316 stainless steel with a louvered design and permanent laser-etched graphics. 316 stainless offers better corrosion resistance than standard 304 grade, particularly in coastal or high-humidity environments where salt or chemical exposure is a concern.

Q: Is there an auxiliary power output on the K-1270-IP for powering accessories at the door?

A: Yes. The unit provides a 12VDC output rated at 50mA maximum. This is suitable for small low-draw accessories. It is not rated to power high-current devices like motorized locks or high-draw proximity readers.

James Everett

The K-1270-IP earns its place in apartment and small commercial entry deployments specifically because it draws only 4 watts — Class 1 PoE — while delivering a combined VoIP directory dialer and proximity card reader in a single flush-mount footprint. That power budget matters when you're speccing a 24-port PoE switch across a building with a dozen other powered devices on the same panel.

Technical Highlights:

• Class 1 PoE (4W draw, IEEE 802.3af/at/bt): At 4W, this device consumes roughly a quarter of a standard 802.3af port's capacity — you can run it off virtually any managed or unmanaged PoE switch without power budget concerns, and it's compatible with all three PoE tiers including 802.3bt for future-proof switch compatibility.
• Relay Output 2A @ 30VDC / 250VAC: Sized correctly to drive a standard electric strike or mag-lock without an intermediate relay board. Eliminating the relay board means one fewer component to fail, one fewer terminal strip to wire, and a cleaner installation in a tight rough-in box.
• 14-Gauge 316 Stainless Steel Faceplate with Louvered Design: The 316 alloy and louvered screen combination is specified for a reason — this is a coastal-capable, chemical-resistant face panel that doesn't degrade on exterior vestibule applications where 304 stainless would show corrosion within a few seasons.

Deployment Considerations:

• The included rough-in box makes new-construction gang-box installation clean and straightforward. On retrofit jobs, budget for the optional VE-5x10 surface-mount enclosure — it's not included and the unit is not designed to surface-mount without it.
• The 12VDC auxiliary output is capped at 50mA. If your door configuration requires powering an external proximity reader or any peripheral drawing more than 50mA, source power separately — driving over the limit risks damaging the unit's output circuit.

The K-1270-IP is purpose-built for 4–20 unit apartment buildings and small commercial controlled-access entries where a combined VoIP call station and proximity reader needs to fit on a single gang plate, pull power from the building's existing PoE switch, and release a standard electric strike — no controller box, no separate reader, no additional power supply required.
