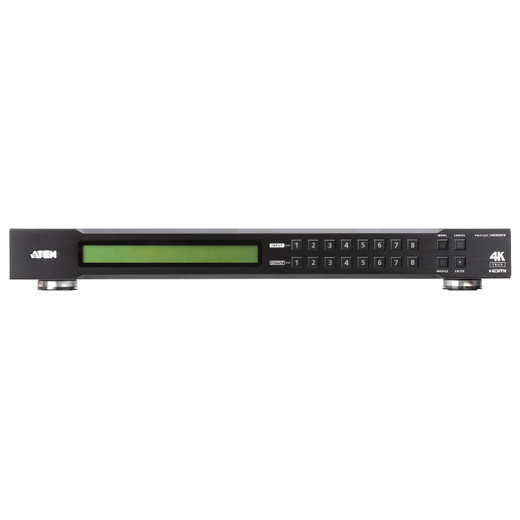

ATEN VM0808HB 8x8 True 4K HDMI Matrix Switch
Overview
The ATEN VM0808HB is a rack-mount 8-input by 8-output HDMI matrix switch built for AV integrators and enterprise environments that need to route True 4K@60Hz (4:4:4) signals across up to eight independent displays simultaneously. Where lower-grade matrix switches downsample 4K to 4:2:0 chroma subsampling, the VM0808HB maintains full 4:4:4 color fidelity — the difference is visible in color-critical applications like digital signage, broadcast monitoring, and command-center video walls. If you're routing medical imaging, broadcast feeds, or high-frame-rate gaming content to multiple displays, this is the spec that matters. Explore the full ATEN AV matrix switching line for complementary products in this family.
Key Features
- True 4K@60Hz (4:4:4) at up to 5 meters: The VM0808HB supports full 4K resolution at 60 frames per second with 4:4:4 chroma sampling over cables up to 5 meters — plan cable runs accordingly. Beyond that distance, signal integrity degrades; use active cables or HDMI extenders for longer runs. This spec is what separates it from matrix switches that only advertise '4K support' without specifying chroma or frame rate.
- HDCP 2.2 compliance: Handles encrypted 4K content from Ultra HD Blu-ray players, streaming boxes, and protected HDMI sources without handshake failures. If any link in your signal chain lacks HDCP 2.2, protected 4K content will downscale or blank — the VM0808HB holds up its end of that chain.
- Consumer Electronics Control (CEC): CEC pass-through means a single remote command can power displays on or off, switch inputs, or adjust volume across CEC-enabled devices in your installation — reducing the need for separate control infrastructure in boardrooms or hospitality deployments.
- EDID Wizard with four modes: Managing EDID across eight sources and eight displays is where many matrix installations break down. The VM0808HB offers Default, Port 1, Remix, and Customized EDID modes including full EDID Wizard support. 'Remix' synthesizes a common EDID from all connected displays — useful when outputs have mismatched capability sets and you need sources to output a resolution every display can handle.
- 3D and Deep Color pass-through: Certified HDMI compliance includes 3D and Deep Color support — relevant for simulation environments and visualization systems where color depth beyond 8-bit matters.
- 100Ω impedance matching: Proper impedance matching on signal lines reduces reflections and signal degradation — this is an engineering detail that matters at 4K/60Hz where timing margins are tight.
- RJ-45 Ethernet control port: The single RJ-45 female Ethernet port enables IP-based remote management and integration with control systems (AMX, Crestron, or similar RS-232/LAN control). Centralizes switching control in rack environments without requiring physical access to the unit.
- Universal AC input (100–240V, 50–60Hz, 1.0A max): Deploys globally without a transformer — relevant for multi-site enterprise or broadcast installs crossing different power standards.
- Rack-mount form factor: Designed for standard rack integration, keeping AV signal routing centralized in the equipment rack alongside other infrastructure. Verify rack unit height against your rack plan before ordering.
Integration & Compatibility
The VM0808HB connects to AV distribution infrastructure via standard HDMI Type A female connectors on all inputs and outputs. IP-based control through the RJ-45 port integrates with third-party control systems for automated switching sequences — useful in large digital signage installations or control rooms where routing changes are scripted. EDID Wizard's Customized mode allows manual EDID programming, which is valuable when integrating legacy displays or projectors with non-standard capability reporting. The firmware is field-upgradeable; the current release is v3.6.352 (dated 2025-05-22), distributed as a downloadable zip from ATEN's support portal. For facilities pairing this unit with high-speed HDMI cables, confirm cable certification for 4K/60Hz (48Gbps) to avoid signal integrity issues at the 5-meter distance limit. A broader comparison of HDMI matrix switches may help if your channel count or resolution requirements differ.
Frequently Asked Questions
Q: What is the maximum cable distance for 4K@60Hz (4:4:4) on the VM0808HB?
A: The VM0808HB supports 4K@60Hz (4:4:4) signals over cables up to 5 meters. Beyond that length, signal integrity at full 4K/60Hz is not guaranteed — use active HDMI cables or external extenders for longer runs.
Q: Does the VM0808HB support HDCP 2.2 for protected 4K content?
A: Yes. The VM0808HB is HDCP 2.2 compatible, enabling it to route protected Ultra HD content from compliant sources to compliant displays. All devices in the signal chain must also support HDCP 2.2 for protected content to pass through without downscaling.
Q: What EDID management modes are available?
A: The VM0808HB provides four EDID modes: Default, Port 1, Remix, and Customized. Remix mode synthesizes a common EDID from all connected displays — useful when display capability sets differ. Customized mode supports EDID Wizard for manual EDID programming.
Q: Can the VM0808HB be controlled remotely over a network?
A: Yes. The unit includes one RJ-45 female Ethernet port for IP-based remote management and control system integration, enabling switching commands without physical access to the rack.
Q: What power supply does the VM0808HB require?
A: The VM0808HB accepts 100–240V AC at 50–60Hz, drawing a maximum of 1.0A. It uses a 3-prong AC socket and is compatible with international power standards without a step-down transformer.
Q: Does the VM0808HB support Consumer Electronics Control (CEC)?
A: Yes. CEC is supported and passed through the HDMI signal path, allowing compatible devices to be controlled via a single command — for example, powering all connected displays on or off from one control point.
The spec I always lead with on the VM0808HB is the 4K@60Hz (4:4:4) rating at up to 5 meters — because that chroma detail is what separates a true broadcast-grade matrix from the commodity gear that advertises '4K' but delivers 4:2:0 at best. If you're distributing uncompressed video to eight independent outputs in a control room or broadcast monitoring wall, that distinction is not academic.
Technical Highlights:
- 4K@60Hz (4:4:4) at 5m: Full chroma, full frame rate — no subsampling compromise. Cable length is a hard constraint at this signal quality; plan every run under 5 meters or budget for active cables.
- HDCP 2.2 throughout: Protects against handshake failures on encrypted 4K sources. Every display in your chain needs HDCP 2.2 compliance as well, or protected content will not pass at full resolution.
- EDID Wizard (4 modes including Customized): Remix mode alone has saved me hours on mixed-display installs — synthesizing a common EDID prevents sources from outputting resolutions that some displays can't handle, which is a common failure mode in multi-display deployments.
Deployment Considerations:
- The RJ-45 Ethernet port opens the door for integration with Crestron, AMX, or custom control systems — budget time for control system commissioning if automated switching sequences are in scope.
- Storage temperature range is -20°C to 60°C, which covers most equipment room environments, but the operating temperature is not specified in available evidence — confirm with ATEN for installations in extreme-temperature spaces like outdoor shelters or unconditioned warehouses.
This unit is a solid fit for command-center video walls and broadcast monitoring suites where eight sources need to route to eight displays with zero color compromise — particularly where HDCP 2.2-protected 4K sources are in the mix and EDID mismatches between varied display types would otherwise cause signal negotiation failures.
