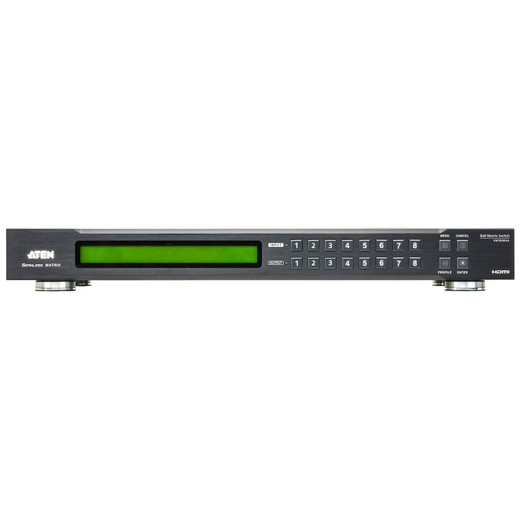

ATEN VM5808HA 8x8 HDMI Matrix Switch with Scaler
The ATEN VM5808HA is an 8-input, 8-output HDMI matrix switch with per-output scaling — the right call for boardrooms, control rooms, and broadcast staging environments where multiple sources need to reach multiple displays simultaneously, regardless of whether those displays share a common native resolution. The VM5808HA handles resolution mismatches at each output independently, so you're not forced to lock every display to the lowest common denominator. TAA compliance makes it a straightforward procurement choice for government and federally funded projects.
Key Features
- 8×8 Non-Blocking HDMI Matrix: Any of the 8 HDMI sources can be routed to any or all 8 outputs simultaneously with no signal contention — essential in control rooms where operators need independent source selections across multiple display zones.
- Per-Output Scaling: Each output independently scales the incoming signal to match the connected display's native resolution. Input sources at 720×480p 60 Hz (both 4:3 and 16:9 aspect ratios) are confirmed supported on the input side. This eliminates blank screens or stretched images when mixing legacy and modern display hardware on the same matrix.
- EDID Wizard with Four Modes: EDID management supports Default, Port1, Remix, and Customized modes. Remix mode synthesizes an EDID from the capabilities of all connected displays — useful when your source device needs to commit to a single output resolution but you're driving displays with different native specs. Customized mode (via EDID Wizard) gives AV integrators full control for non-standard deployments.
- Ethernet Control via RJ-45: A dedicated RJ-45 port enables network-based control — routing changes, status monitoring, and configuration can be handled remotely over IP without a technician physically at the rack. Essential for facilities with centralized AV control systems.
- Stereo Audio Output: A 3.5mm Mini Stereo Jack (green) provides analog audio breakout, giving you a discrete audio path independent of the HDMI signal chain — useful when the display lacks integrated speakers or when audio needs to feed a separate zone amp.
- Universal AC Power Input: The 100–240 VAC, 50–60 Hz, 1.0A power supply handles global mains voltage without an external adapter or transformer swap — relevant for international deployments or facilities with mixed power infrastructure.
- Rack-Mount Form Factor: Designed for standard rack installation, keeping the matrix integrated with other AV and IT infrastructure rather than sitting loose on a credenza. Rack integration simplifies cable management and access control.
- Firmware Field-Upgradeable: Firmware v1.2.113 (released 2025-05-22) is the current release, delivered as a downloadable zip. Field firmware updates mean you can apply manufacturer patches without returning the unit or scheduling a service call.
- TAA Compliance: The VM5808HA carries TAA (Trade Agreements Act) compliance, satisfying GSA Schedule and federal contract requirements without a waiver request. If your project is on a government contract, this clears a common procurement hurdle upfront.
- Operating Humidity Tolerance: Rated for 0–80% RH non-condensing — covers virtually all conditioned indoor environments including older facilities without tight HVAC control, as long as condensation is not occurring.
Integration and Compatibility
The VM5808HA integrates into AV control ecosystems via its Ethernet (RJ-45) port, enabling command and control from third-party room control processors and automation systems over IP. The RS-232 control path (via the unit's control interface) provides a serial fallback for integrators working with legacy control systems. EDID Wizard compatibility ensures source devices receive accurate display capability data, reducing plug-and-play failures common in large matrix installations where sources enumerate EDID only at boot. For ATEN video matrix switches and related signal distribution hardware, the VM5808HA sits in the professional AV matrix line alongside both smaller and larger frame-count variants. Pair it with a compatible HDMI distribution amplifier if you need to extend any output beyond the 5-meter maximum cable run supported by the matrix outputs. For installations requiring longer runs, consider HDBaseT extenders on the output side — the 5.0m native HDMI distance is the hard constraint to plan around. Consult the matrix switch buying guide for help sizing input/output counts and planning cable infrastructure for multi-zone AV systems. If your project requires a network video recorder alongside the matrix for security monitoring feeds, the VM5808HA can route camera-connected encoders just as readily as any other HDMI source.
Frequently Asked Questions
Q: Is the ATEN VM5808HA TAA compliant?
A: Yes. The VM5808HA is TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule purchases and federal contract procurement without requiring a waiver.
Q: What is the maximum HDMI cable run distance supported by the VM5808HA?
A: The specified maximum distance is 5.0 meters. For longer runs, use HDMI extenders or HDBaseT adapters on the output side — the matrix itself does not extend beyond this native HDMI distance.
Q: How does EDID management work on the VM5808HA?
A: The VM5808HA offers four EDID modes: Default (built-in EDID table), Port1 (copies EDID from the display on output 1), Remix (synthesizes a combined EDID from all connected displays), and Customized (fully user-defined via the EDID Wizard utility). Remix is the most useful mode in mixed-display environments.
Q: Can the VM5808HA be controlled over a network?
A: Yes. A dedicated RJ-45 Ethernet port enables IP-based control for routing commands, status polling, and configuration — suitable for integration with third-party room control systems or remote AV management.
Q: What input resolutions does the VM5808HA support?
A: Confirmed supported input resolution from manufacturer documentation includes 720×480p 60 Hz in both 4:3 and 16:9 aspect ratios. The per-output scaler adjusts the signal to match each display's native resolution independently.
Q: What firmware version is current for the VM5808HA?
A: The current firmware release is v1.2.113, dated 2025-05-22. Firmware updates are delivered as downloadable zip files and can be applied in the field.
The VM5808HA is one of those matrix switches that earns its keep specifically because of the EDID Wizard — in an 8-output install, you will almost always have at least one display with a quirky EDID that causes a source device to negotiate the wrong resolution. The Remix mode on the VM5808HA synthesizes a consensus EDID across all connected displays, which in practice means your source commits to a resolution every display can actually handle, then the per-output scaler takes care of the rest. That's a real time-saver during commissioning.
Technical Highlights:
- Per-Output Independent Scaling: Each of the 8 outputs scales independently — you're not constraining the entire matrix to one resolution. A 720×480p legacy source can feed a 4K display on output 1 while the same source feeds a 1080p display on output 4 without manual intervention.
- IP Control via RJ-45: Ethernet control means the VM5808HA can be driven by any IP-capable control processor without a serial adapter in the chain. That matters in newer installs where RS-232 ports on the control processor are already allocated.
- Universal Power Supply (100–240 VAC, 1.0A): Single-supply design covers both US and international mains — no step-down transformer needed for European or Asian installs, which simplifies logistics when you're shipping gear to multiple sites.
Deployment Considerations:
- The 5.0m maximum HDMI distance is the constraint to design around first. Plan your rack position relative to source equipment and run HDBaseT on outputs going to distant displays — don't assume a clean HDMI pull is feasible across a large room.
- EDID Wizard's Customized mode requires the EDID Wizard software utility to build the custom EDID profile. Budget time for this during commissioning if you have non-standard display hardware that doesn't respond well to Default or Remix modes.
This switch is the right fit for a mid-size conference center or university AV hub where 8 source positions (laptops, media players, videoconference codecs) need to feed 8 display zones independently — particularly where TAA compliance is a contract requirement and the display inventory is heterogeneous enough that per-output scaling isn't optional.
