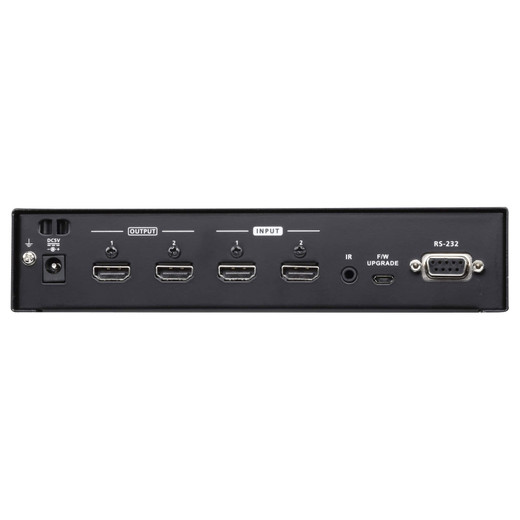

ATEN VM0202H 2x2 4K HDMI Matrix Switch
Overview
The ATEN VM0202H is a 2-input, 2-output 4K HDMI matrix switch designed for installations where two sources need to be routed independently to two displays — conference rooms, control rooms, digital signage deployments, or small AV rack builds. If you need source-to-display flexibility without a full matrix frame, the VM0202H delivers that in a compact, rack-mountable form factor. Explore the full ATEN switching and connectivity line for larger matrix and KVM options.
Key Features
- EDID Management (Default / Port1 / Remix modes): EDID mismatches are one of the most common causes of blank screens and resolution handshake failures in multi-display AV systems. The VM0202H lets you lock EDID to a known-good state or remix from connected displays — eliminating the trial-and-error that plagues installs where sources and displays have mismatched capability tables.
- IR Control Port (Mini Stereo Jack): The onboard IR input lets you integrate the switch into an existing IR control system or add a remote extender without running separate control cabling — useful in rack builds where the front panel is inaccessible after installation. Pair with an AV control system for full automation.
- 5 m Maximum Signal Distance: Rated to 5 meters per HDMI connection — appropriate for within-rack and short-run between-rack deployments. Plan your cable runs accordingly; exceeding 5 m without an active extender risks signal integrity at 4K resolutions.
- DC Power Input: Single DC jack power supply keeps the unit clean in rack builds. No internal fan noise concerns for quiet environments like boardrooms or broadcast control.
- Storage-Rated Enclosure: Rated for storage down to -20°C and up to 60°C, with 0–80% non-condensing humidity tolerance — suitable for staging and transport in demanding warehouse or field-deployment environments before final install.
- Field-Upgradeable Firmware: Firmware v1.1.103 is available for download. Being able to update in the field means you can address EDID or handshake issues post-deployment without returning the unit.
Integration and Compatibility
The VM0202H fits into any HDMI-based AV distribution chain. The rack-mount form factor integrates cleanly into 1U AV rack builds. For deployments requiring longer signal runs, pair with HDMI extenders upstream or downstream of the matrix. For larger routing requirements — more sources, more displays, or 4K60 4:4:4 at scale — consider a higher-port-count matrix in the HDMI matrix switch category. Review your AV cabling and signal distribution guide to confirm cable spec before finalizing runs.
Frequently Asked Questions
Q: What EDID modes does the VM0202H support?
A: The VM0202H supports three EDID modes: Default, Port1, and Remix. Default uses a built-in EDID table; Port1 copies the EDID from the display on output port 1; Remix combines capabilities from connected displays to build a composite EDID.
Q: What is the maximum cable run distance for the VM0202H?
A: The VM0202H is rated for a maximum signal distance of 5 meters per HDMI connection. Runs beyond 5 m at 4K resolutions will require active HDMI extenders or fiber-optic HDMI cables.
Q: Does the VM0202H have an IR control port?
A: Yes. There is one Mini Stereo Jack Female IR input (black) for connecting an IR receiver or control system extender.
Q: Can the VM0202H firmware be updated in the field?
A: Yes. Firmware is field-upgradeable; version v1.1.103 is the current release (dated 2020-09-09) available as a downloadable zip from ATEN.
Q: What are the environmental storage ratings for the VM0202H?
A: Storage temperature range is -20°C to 60°C, with humidity tolerance of 0–80% RH non-condensing.
The VM0202H's built-in EDID management is the spec I'd focus on when evaluating this switch for a conference room or control room build. EDID mismatch is the silent killer of small AV matrix installs — a source that won't handshake with a display locks up the whole room. Having three selectable EDID modes (Default, Port1, Remix) in the VM0202H means you can lock in a stable handshake at commissioning and not revisit it every time a display gets swapped.
Technical Highlights:
- EDID Modes (Default/Port1/Remix): Three modes give you flexibility to handle mixed-display environments without third-party EDID emulators — reduces BOM and troubleshooting scope on small installs.
- IR Input (Mini Stereo Jack): Integrates into IR-based control systems without separate control hardware — practical in rack builds where front-panel access is not feasible post-installation.
- Field-Upgradeable Firmware: v1.1.103 downloadable as a zip file; field updates mean post-deployment EDID or handshake fixes don't require RMA or bench work.
Deployment Considerations:
- The 5 m maximum distance is firm at 4K — pre-measure all runs before finalizing cable orders. Budget for active extenders on any run approaching or exceeding that limit.
- Power is DC jack only; confirm your rack has appropriate DC supply or plan for a wall-wart in the rack. No PoE, no IEC inlet — easy to overlook in rack build BOMs.
The VM0202H is a clean fit for a two-source, two-display conference room or small control room where EDID reliability and IR system integration matter more than port count — not sized for multi-room or high-port-count distribution.
