Vivotek Vortex FD819 H 1Y 5MP WDR Enhanced Indoor - FD819-H-1Y

Vivotek Vortex FD819 H 1Y 5MP WDR Enhanced Indoor - FD819-H-1Y

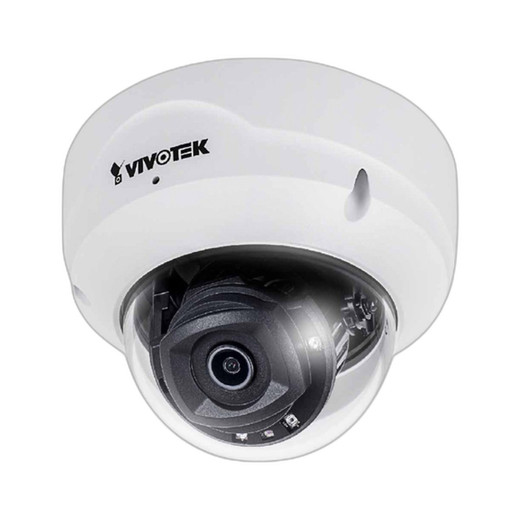

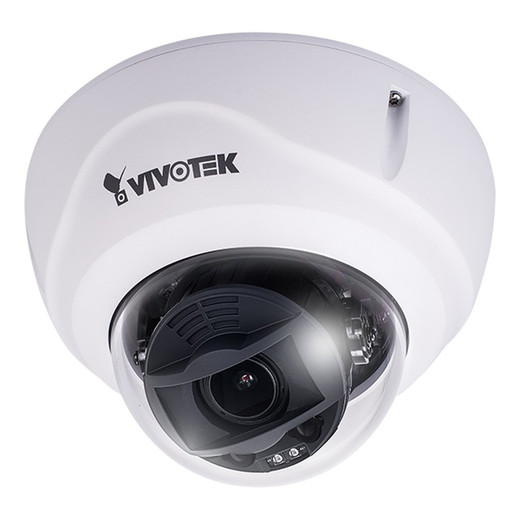

The Vivotek Vortex FD819-H-1Y is a professional-grade 5MP indoor dome IP camera engineered for comprehensive surveillance in demanding commercial and institutional environments. This compact, discreet dome camera delivers exceptional image quality and advanced analytics capabilities, making it ideal for offices, retail spaces, schools, and access points where both security and aesthetic integration are critical requirements.

Key Features

• 5MP High Resolution: 2560 x 1920 HD resolution captures fine details essential for identification and incident investigation
• Wide Field of View: 2.8mm fixed lens with 103° horizontal coverage minimizes blind spots across expansive indoor areas
• WDR Enhanced Technology: Delivers superior image balance in mixed lighting conditions, eliminating backlit washout and shadow detail loss
• Advanced Night Vision: 30-meter IR illumination with 0.06 lux minimum illumination ensures 24/7 monitoring capability
• One-Way Audio: 5-meter effective range audio detection and recording enhances situational awareness
• Intelligent Analytics: Built-in intrusion detection, line crossing, loitering detection, and scene search for people and vehicles; unattended and missing object detection
• Tampering Detection: Automatic alerts when camera positioning or lens obstruction occurs
• PoE Powered: IEEE 802.3af PoE Class 0 simplifies installation with single-cable connectivity
• Compact Design: 130mm diameter dome housing provides discreet installation while maintaining full 350° pan and 80° tilt movement

Technical Specifications

• Sensor: 1/2.7" Progressive CMOS with F2.0 fixed aperture
• Frame Rate: 15 FPS at full 5MP resolution; dual-stream HD and SD video
• Video Streaming: HD 2560x1920 @ 1.2 Mbps, SD 1280x960 @ 300 Kbps
• Storage: MicroSD/SDHC/SDXC slot with built-in 256GB industrial SD card
• Power Consumption: Maximum 6.3W (IR on) or 3.9W (IR off)
• Connectivity: 10/100 Mbps Ethernet with RTSP, WebRTC, IPv4/IPv6 support
• Security: HTTPS/TLS 1.2 encryption, secure boot, signed firmware, video encryption
• Multi-Client Access: Up to 6 simultaneous live-view clients with flexible playback capabilities
• Operating Temperature: 10-50°C (IR off) or 10-45°C (IR on)
• Warranty: 10-year comprehensive coverage

Applications

The FD819-H-1Y excels in corporate offices, retail environments, educational institutions, healthcare facilities, and hospitality settings where discreet yet capable surveillance is required. Its compact dome form factor blends seamlessly with modern interiors while its extensive field of view and analytics suite provide enterprise-level security performance.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The FD819-H-1Y represents a balanced solution for indoor IP surveillance requiring both image quality and behavioral analytics. The 5MP resolution paired with WDR enhancement ensures reliable video in mixed-light environments typical of commercial spaces. Day/night capability via IR and mechanical iris control addresses the full spectrum of indoor lighting conditions.

The inclusion of onboard 256GB storage via SD card provides valuable local backup and extended recording without dependency on external NVR infrastructure. Advanced analytics—intrusion, line crossing, loitering, and object detection—enable proactive security responses rather than reactive review. Shutter speeds to 1/32,000 seconds accommodate high-speed motion capture.

The 10-year warranty reflects Vivotek's confidence in industrial-grade durability. PoE operation and low power draw (3.9-6.3W) simplify deployment in spaces where dedicated power runs are impractical. Support for 6 simultaneous clients with mixed live-view and playback access suits multi-department monitoring scenarios.

Security features including HTTPS encryption and secure boot meet enterprise IT compliance requirements. The camera's 350° pan and ±175° rotation, despite being a fixed-lens dome, enable flexible mounting orientations in challenging installations.
