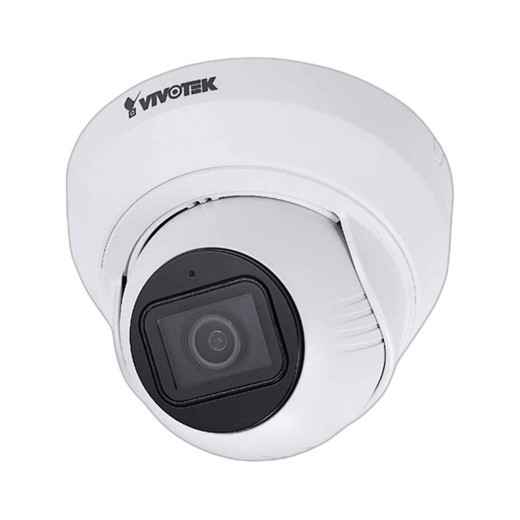

Vivotek Vortex IT839 H 1Y 5MP Outdoor WDR Pro Fixed IR Microphone IP Camera

Vivotek IT839-H-1Y 5MP Outdoor IR Turret Camera

The Vivotek Vortex IT839-H-1Y is a professional-grade 5MP fixed IR turret camera engineered for demanding outdoor surveillance applications. Combining high-resolution imaging with advanced analytics and 30-meter infrared capability, this camera delivers reliable performance in 24/7 security operations across perimeters, parking lots, and open areas. The integrated microphone and WDR Pro technology ensure comprehensive situational awareness in any lighting condition.

Key Features

• 5MP Resolution: 2560 x 1920 HD video captures critical details for identification and forensic analysis
• WDR Pro Technology: Balances exposure across high-contrast scenes, eliminating washout in bright areas and shadow detail loss in dark zones
• 30-Meter IR Illumination: Fixed IR LEDs provide reliable night vision in complete darkness (0 lux capability)
• Built-in Microphone: One-way audio with 5-meter effective range for incident documentation and real-time monitoring
• Advanced Analytics: Intrusion detection, line crossing detection, loitering detection, and scene search for both people and vehicles; plus unattended and missing object detection
• PoE Powered: Single-cable installation with IEEE 802.3af PoE; low 6.4–7.4W power consumption
• Compact Turret Design: 122mm diameter with 359° pan and 75° tilt for flexible mounting and coverage adjustment

Technical Specifications

• Sensor: 1/2.7" Progressive CMOS with F2.0 fixed aperture; 103° horizontal field of view
• Day/Night: IR cut filter and auto-switching for seamless color-to-B/W transition; 0.01 lux minimum illumination in B/W mode
• Video Streaming: 15fps at both HD (2560×1920, 1.2 Mbps) and SD (1280×960, 300 Kbps) for flexible bandwidth management
• Storage: Built-in 256GB industrial microSD card with support for SDHC/SDXC expansion
• Security: Secure boot, signed firmware, HTTPS/TLS 1.2 encryption, and video encryption for protected data transmission
• Connectivity: 10/100 Mbps Ethernet with WebRTC, RTSP/RTP, IPv4/IPv6, DHCP, DNS, and NTP support; up to 6 simultaneous clients
• Durability: Metal housing with IK08 impact resistance, IP66 weather sealing, and operating range 20–50°C (98% RH non-condensing)
• Dimensions/Weight: 122mm diameter × 99mm height with bracket (332g without); compact design for discrete installation

Applications

The IT839-H-1Y excels in perimeter security, parking lot surveillance, industrial yards, and outdoor access control. Its analytics engine detects unauthorized intrusions, tracks line crossings, and identifies loitering activity—critical for theft prevention and incident investigation. Audio detection and tampering alerts add layers of responsiveness. The robust IP66 rating and wide operating temperature range ensure year-round reliability in harsh outdoor environments.

Eden Phillips

The IT839-H-1Y represents Vivotek's mature approach to compact outdoor surveillance. The combination of 5MP resolution, fixed wide-angle optics (2.8mm), and WDR Pro positions this camera for mixed-lighting scenarios where traditional fixed-iris designs fail. The 15fps frame rate is appropriate for perimeter work but should be considered if sub-second event capture is critical.

The built-in 256GB storage is a standout for edge recording—particularly valuable in environments where network bandwidth or NVR integration is limited. Analytics are software-based rather than dedicated silicon, making performance scalable with CPU load. The PoE power budget (6.4W without IR) is efficient, though IR-on operation at 7.4W approaches Class 0 limits on budget injectors.

For organizations standardizing on Vivotek, ONVIF compliance and multi-client support simplify integration into mixed-vendor VMS platforms. The 10-year warranty reflects Vivotek's confidence in component longevity—a practical advantage in outdoor deployments where replacement costs are high.
