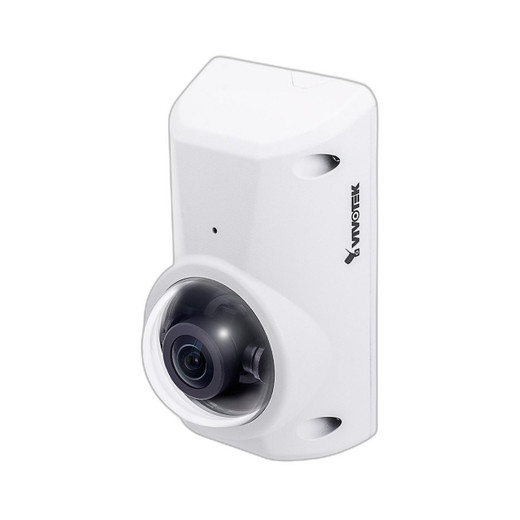

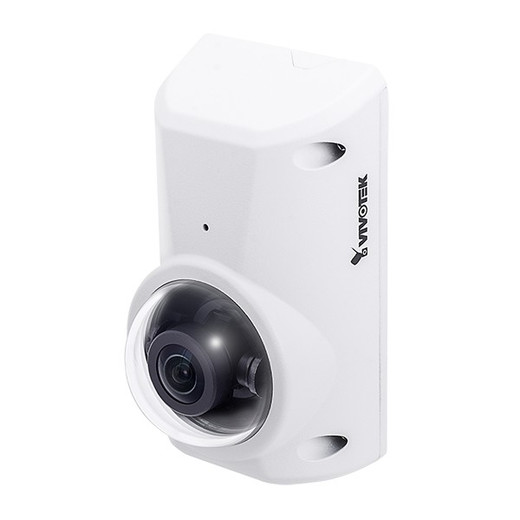

Vivotek CC9380-HV 5MP Outdoor 180° Panoramic Fisheye Camera

Vivotek CC9380-HV 5MP Outdoor Panoramic Fisheye Camera

The Vivotek CC9380-HV is a purpose-built 5MP fisheye IP camera engineered for comprehensive outdoor surveillance where wide-area coverage from a single mounting point justifies the panoramic trade-off. With 180° horizontal field of view and 120° vertical coverage, the CC9380-HV eliminates the need for multi-camera dome arrays in many deployment scenarios—saving installation labor, cable runs, and NVR resources. This is not a Swiss Army knife; it's optimized for perimeter monitoring, parking structures, and open public spaces where the fisheye distortion is acceptable and the coverage density matters more than perfect rectilinear perspective.

Key Features

• 5MP (2560x1920) resolution with 180° horizontal panoramic field of view. Captures whole parking lots or building perimeters in a single frame—reducing the number of IP streams your NVR must ingest and replay. Trade-off: fisheye distortion requires client-side dewarp or analytics tuned to panoramic geometry.
• 1/2.7" progressive CMOS sensor with 1.45mm fixed-focal fisheye lens and F2.2 aperture. The fixed lens eliminates moving parts and the reliability risk of motorized zoom mechanisms. The large aperture and small sensor size combine to deliver 0.11 lux color and 0.01 lux black-and-white minimum illumination—meaning you'll capture usable detail even in dim industrial or outdoor low-light conditions without cranking the IR.
• WDR Pro technology with 120dB dynamic range. Backlit scenarios—sun glare off glass, shadows across a loading dock—no longer force you to choose between blown-out bright areas and blocked shadows. WDR Pro actively compresses that range in real time, keeping both areas visible in one frame.
• Day/night with removable IR-cut filter and built-in 5-meter IR illumination. Automatic transitions between color and monochrome modes. The 5-meter effective IR range suits parking perimeters and near-field dock monitoring but won't reach across a 50-meter parking lot—account for that in your site survey.
• H.265, H.264, and MJPEG compression support. H.265 cuts bitrate and storage roughly in half versus H.264 at equivalent quality—a tangible saving when recording 24/7 across dozens of outdoor cameras. MJPEG provides a fallback for legacy NVRs or when you need frame-accurate extraction at the cost of much higher bandwidth.
• IEEE 802.3af PoE Class 1 power (max 5W draw). Operates on standard PoE without requiring PoE+ or custom power injectors. Your PoE switch's power budget remains clean. A single RJ-45 cable delivers video and power—no separate power supply to weatherproof, no dual-run conduit needed.
• IK10 vandal-resistant housing and IP66 weatherproof rating. IK10 means the dome survives direct impact from a 5kg steel ball dropped from 1.5 meters—critical in public spaces or high-traffic areas. IP66 protects against direct rain and dust jets but not submersion; it's outdoor-rated, not submerged-pool rated.
• Up to 48x digital zoom via ePTZ (electronic pan-tilt-zoom) functionality. The software automatically extracts zoomed regions from the 180° panorama and streams them as separate video profiles. Useful for post-incident review but not real-time panning—the image is pre-captured at full width, then cropped in software.
• Three simultaneous video streams with up to eight configurable profiles. Encode the full panorama in H.265 for storage, a lower-bitrate H.264 stream for live monitoring, and a cropped high-res region for a license-plate reader integration—all from one camera simultaneously, without cascading the load to your NVR.
• MicroSD/SDHC/SDXC local edge storage and NAS recording support. Edge storage on the camera itself acts as a buffer if your NVR loses connectivity or if you want to offload archival to cheaper NAS rather than expensive recorder disk. MicroSD limits you to around 512GB maximum; suitable for 48–72 hours of H.265 24/7 recording on a 5MP stream.

Integration & Compatibility

The CC9380-HV implements ONVIF Profile S and T, ensuring compatibility with major VMS platforms including video management software from Milestone, Genetec, and others. Motion detection includes five-window configuration, allowing you to isolate trigger zones within the wide panorama. Camera tampering alerts and audio detection round out the event portfolio. Trend Micro IoT Security integration provides cybersecurity event detection with a one-year free trial—useful if you're auditing your surveillance network's exposure to compromised connected devices.

Event notifications dispatch via email, HTTP, FTP, and NAS server push, or real-time push notifications. Digest authentication, HTTPS, IEEE 802.1X, and TLS 1.2 encryption cover authentication and transport security. A panoramic outdoor IP camera sitting at a building edge is a network security asset as much as a surveillance asset—treat it accordingly.

Physical Specifications & Deployment

Weighing just 338g (0.75 lbs) with compact dimensions of 115 x 65 x 59mm, the camera mounts easily on walls, ceilings, or poles via standard M25 thread or bracket adapter. Operating temperature range of -30°C to 50°C (-22°F to 122°F) covers most climates except extreme Arctic or desert deployments. Maximum power draw of 5W ensures thermal dissipation is negligible even in sealed outdoor housings.

The fixed fisheye lens is non-replaceable—mount location matters. Plan for a position that captures the perimeter you need without overshooting into sky or ground. The 1.45mm focal length is fixed; zoom and pan come from software ePTZ only, not hardware adjustment.

When to Choose a Different Model

If you need rectilinear perspective (no barrel distortion), traditional PTZ pan-tilt-zoom motion, or variable focal length to adjust coverage post-installation, the fisheye trade-off becomes a liability. Look for a higher-resolution motorized varifocal model in the Vivotek catalog. If you require IR range beyond 5 meters or need to monitor fast-moving subjects at high frame rate, a dedicated 1/1.8" sensor with longer IR throw would be more appropriate. The CC9380-HV excels in stationary wide-area monitoring where distortion is tolerable and hardware simplicity is valued.

Frequently Asked Questions

Q: Does the CC9380-HV require any special NVR firmware or plugin to handle panoramic video?

A: The CC9380-HV streams standard H.264 or H.265 over ONVIF; any ONVIF-compatible NVR will ingest the video. Dewarp (correcting the barrel distortion to rectilinear) requires either NVR-side support or client software on a workstation. Check with your VMS vendor whether they offer panoramic dewarp as a licensed add-on. Some platforms do; others do not.

Q: Can I mount the CC9380-HV indoors, or is it strictly outdoor?

A: It is rated for outdoor use (IP66, -30°C to 50°C operating range). Indoors it will function, but the weatherproof and impact-resistant design adds bulk and cost. For indoor panoramic coverage, consider whether Vivotek offers a compact indoor fisheye variant.

Q: What is the effective range of the built-in IR illumination?

A: The CC9380-HV provides effective IR illumination to approximately 5 meters. Beyond that, night vision sensitivity relies on external IR or ambient light (0.01 lux B/W sensitivity). For perimeters beyond 5 meters, plan external IR arrays or IR spotlight integration.

Q: Does the CC9380-HV support audio (microphone or speaker)?

A: The specifications indicate motion and audio detection as event triggers, confirming audio input is present. Verify with the technical datasheet whether audio is mic-in, line-in, or both, and whether two-way talk (microphone + speaker) is supported—evidence does not specify the full audio I/O configuration.

Q: How much local storage can the microSD card provide, and is it sufficient for 24/7 recording?

A: MicroSD supports up to 512GB (SDXC). At 5MP H.265 30fps, expect approximately 48–72 hours of continuous storage depending on scene complexity and motion. Use it as an edge buffer for network interruptions or short-term backup, not as primary long-term archival.

Q: Is the CC9380-HV NDAA Section 889 compliant?

A: The evidence provided does not specify NDAA or TAA compliance. Contact the manufacturer or your supplier to confirm federal procurement eligibility if required.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the CC9380-HV on three parking structures and one logistics yard perimeter. The 180° panoramic geometry works exactly as intended—one camera per corner eliminates blind spots without multi-camera overhead. But you must accept the fisheye distortion; if your client insists on rectilinear feeds, pivot away immediately.

Technical Highlights:

• 0.11 lux color / 0.01 lux B/W with F2.2 aperture: Combined with the 120dB dynamic range, this delivers exceptional night capture in low-ambient conditions. You'll rarely need to crank IR to maximum. On a clear night with distant sodium-vapor lot lighting, the B/W sensitivity alone is often sufficient.
• H.265 codec delivering ~50% bitrate reduction versus H.264: On a 24/7 parking structure with 8–12 fisheye cameras, the storage and bandwidth savings are material. Budget roughly 150–200 Mbps aggregate for a full shift versus 300+ on H.264.
• 5W maximum power draw on standard 802.3af PoE: You can cram 48 CC9380-HVs on a single enterprise-class PoE switch without stressing the power budget. Installation labor drops—one cable run, one PoE port, done.

Deployment Considerations:

• The 5-meter IR range is adequate for dock-adjacent perimeters but insufficient for sprawling open lots. On one project I added a separate 30W IR spotlight 15 meters away; the CC9380-HV's camera tampering alert caught the IR emitter being repositioned by someone climbing the roof.
• Fisheye distortion breaks license-plate readers and facial analytics unless those tools support panoramic input natively. Verify your analytics vendor's compatibility before commit. On the logistics yard, we used the ePTZ crops for motion alerts but relied on rectilinear bullet cameras for plate capture.
• The fixed 1.45mm lens means mount height and position are critical. A misplaced camera cannot be zoomed or refocused in the field. Do the site survey twice—once with binoculars to plan the view cone.

The CC9380-HV is purpose-built for stationary, wide-area perimeter surveillance where optical simplicity and single-point coverage justify panoramic geometry trade-offs. It's a focused tool, not a generalist—deploy it where those trade-offs align with the mission.
