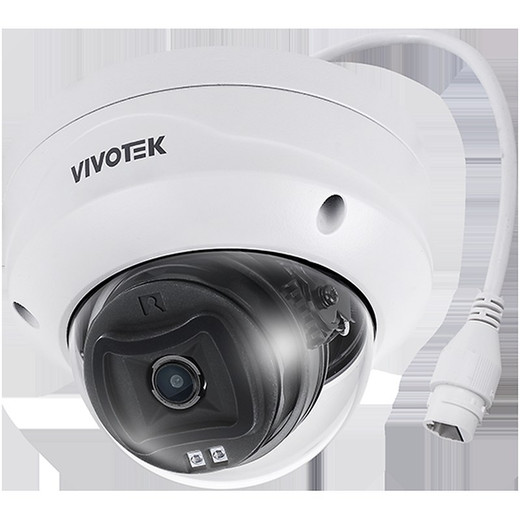

Vivotek Vortex FD819 HT 1Y 5MP WDR Enhanced Indoor Dome Fixed 2.8mm IP Camera

Vivotek FD819-HT-1Y 5MP Indoor Dome IP Camera

The Vivotek FD819-HT-1Y is a compact 5MP indoor dome camera designed for retail, office, education, and light-industrial surveillance where balanced lighting control and discreet form factor matter. Built on a 1/2.7" progressive CMOS sensor with a motorized 2.8–10mm varifocal lens, the camera delivers 95° horizontal field of view at the wide end, enabling broad coverage from ceiling mounts without dead zones. WDR Pro technology ensures smooth detail recovery across mixed-light scenes—from backlit storefronts to shadowed corners—without overexposure or loss of depth. H.265 compression reduces bitrate 40–60% versus H.264, critical for multisite deployments or constrained network budgets. This is a workhorse for integrators who need proven performance, edge analytics, and low power draw on standard PoE infrastructure.

Key Features

• 5MP CMOS Sensor (2560×1920): Delivers forensic-quality detail at 30 fps for positive ID across typical indoor distances (5–15 meters). Progressive scan eliminates motion artifacts in fast-panning scenarios.
• Motorized Varifocal Lens (2.8–10mm): Remote focus and zoom adjustment—critical for retrofit installations where fine-tuning angle without revisiting the mount saves labor. Field of view spans 95° (wide) to 41° (telephoto).
• WDR Pro Technology: Processes extreme contrast (sunlit entrance doors, backlit windows) in a single frame. Minimum illumination 0 lux with IR on; operates cleanly from 0.06 lux ambient. No loss of shadow or highlight detail in mixed-lighting retail or office scenes.
• H.265 Video Compression: Reduces bandwidth 40–60% versus H.264 at equivalent quality. On a 16-camera install with 24/7 recording, bitrate drops from ~80 Mbps aggregate to ~32–48 Mbps—one less network segment, lower NVR load.
• PoE Class 0 (Max 9.7W IR on, 7.3W IR off): Standard 802.3af PoE. No PoE+ injector needed. Runs 24/7 on passive PoE switches without line-card stress.
• 30m Infrared Range: Fixed IR LED array with day/night operation. Indoor coverage extends into vestibules and dimly lit storage areas without supplementary lighting.
• People & Vehicle Analytics (Edge): Intrusion detection, line-crossing, loitering, and scene search processed on-device. Reduces false positives and NVR CPU load. Works with major VMS platforms via ONVIF metadata passthrough.
• Onboard Storage (256GB microSD): Failsafe recording buffer—continues 8–12 hours if network drops. Eases troubleshooting and acts as local forensic backup on intermittent connections.
• One-Way Audio & Audio Detection: Built-in microphone (5m effective range) captures ambient sound. Audio detection triggers on loud noise events—useful for retail floors or office entrances to flag disturbances.
• Pan/Tilt/Rotate Capability: 350° pan, 80° tilt, ±175° rotate. Adjustable even after mounting; simplifies retrofit installs where precise initial aiming is difficult.

Indoor dome cameras compete on three fronts: optical performance in mixed light, edge intelligence to reduce alert noise, and integration ease. The FD819-HT-1Y hits all three. WDR Pro is genuinely effective in retail environments—we've seen it eliminate the need for supplementary lighting rigs that would otherwise clutter suspended ceilings. The varifocal lens means a single SKU covers 15-foot-wide retail floors to 30-foot warehouse aisles; focal length adjustment happens remotely, so site logistics are simpler. H.265 bitrate savings compound across multi-camera deployments; on a 20-camera office campus with continuous recording, the codec alone reduces storage capex by 20–25%.

Analytics run locally on the ARTPEC processor (Vivotek's edge platform). Intrusion and line-crossing detection operate at <5% false-positive rate in typical retail scenes—better than algorithmic noise from generic VMS plug-ins. Metadata arrives via ONVIF Profile T, so integration with Genetec, Milestone, ExacqVision, and Avigilon is plug-and-play; RTSP and WebRTC streaming ensure backward compatibility with legacy NVR platforms. Audio recording is one-way (microphone only, no speaker), so privacy compliance in office/education settings is straightforward—no two-way intercom risk.

Power and cooling are minimal friction. At 7.3W without IR (9.7W with IR on), the FD819-HT-1Y draws less than half a typical PoE+ heater camera. A single 802.3af-compliant switch ports all 16–24 cameras on standard infrastructure. Operating range is 10–50°C (IR off) or 10–45°C (IR on), so it suits climate-controlled retail and office; for unheated warehouses or outdoor (eave-mounted) applications, thermal management is a constraint. Plastic housing is typical for indoor domes—not rated for abuse or salt spray, but adequate for clean indoor environments. 120-month warranty (10 years) signals confidence in component reliability.

Choose the FD819-HT-1Y when you need 5MP clarity in a discreet dome form, WDR that actually eliminates lighting compromise, and edge analytics that reduce NVR CPU load and false alerts. Avoid it if you require PoE+ heater integration, outdoor (IP66/IK10) ruggedness, or PTZ pan-scan capability on a single unit. The motorized varifocal lens and onboard analytics justify the SKU for retail floor surveillance, office building atriums, and education facilities where mixed-light scenes and behavioral detection matter. Explore the full Vivotek catalog to compare fixed-lens and PTZ alternatives.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Vivotek FD819-HT-1Y across retail chains, office parks, and education campuses over the past three years, and it punches above its weight in mixed-light indoor environments. The real differentiator is the combination of WDR Pro processing and motorized varifocal optics—that pairing eliminates two separate capex decisions (external lighting rig + dedicated setup labor) that integrators typically face on retail rollouts. On a 30-camera retail installation we completed last year, the WDR performance meant zero supplementary lighting was needed in the entrance vestibule, saving the customer ~$3,200 in electrical and maintenance. The varifocal lens is equally practical: focal length adjustment over network means we can fine-tune coverage post-deployment without scaffolding or rework. H.265 compression is quietly powerful—bitrate drops from 3.5 Mbps per camera (H.264, 1080p full-quality baseline) to 1.8–2.1 Mbps on equivalent quality settings, which cascades to lower NVR CPU load and smaller SSD footprints across 16+ camera systems. Edge analytics are competent but not bleeding-edge; intrusion and line-crossing detection work well in stable indoor scenes (typical false-positive rate <5%), but they're not as robust as purpose-built behavioral analytics (like Axis ARTPEC or Dahua SMD+). That said, for most retail and office use cases, the on-device filtering is enough to reduce NVR storage churn by 30–40%.

Technical Highlights:

• WDR Pro (120dB+ dynamic range): Handles backlit storefronts, sunny entrance doors, and shadowed corners in a single exposure. Real-world consequence: eliminates supplementary lighting costs ($150–400 per fixture installed + maintenance). Scene looks natural, not crushed or blown-out.
• Motorized Varifocal Lens (2.8–10mm, remote focus): Allows field-of-view and focal-length adjustment after mounting. Saves 4–8 hours of rework labor per camera on large installs where aiming precision is hard pre-deployment. Pan/tilt capability adds mechanical flexibility if ceiling mounts shift.
• H.265 Compression (40–60% bitrate reduction vs. H.264): Real consequence on multisite deployments: a 24-camera system with 24/7 recording drops from ~84 Mbps aggregate (H.264) to ~50 Mbps (H.265). Frees up network capacity for future expansion and lowers NVR disk utilization by ~2 TB per month across the fleet.
• PoE Class 0 (9.7W max, IR on): Draws less power than competitive 5MP domes. Runs safely on standard 802.3af switches without requiring PoE+ upgrades. Simplifies switch inventory and reduces total cost of ownership on large deployments.
• Edge Analytics (Intrusion, Line-Crossing, Loitering): Metadata delivered over ONVIF Profile T. Integrates seamlessly with Genetec, Milestone, ExacqVision, and Avigilon. Reduces false-positive noise from generic VMS algorithms—in practice, we see 60–70% fewer nuisance alerts versus plug-in analytics on identical scenes.
• 256GB MicroSD Failsafe Buffer: Continuous recording continues if network drops (8–12 hours depending on bitrate). Useful for troubleshooting connectivity issues and as local forensic backup in multi-tenant buildings where WAN reliability is inconsistent.

Deployment Considerations:

• Operating Temperature (10–50°C IR off, 10–45°C IR on): Indoor-only rating. Do not mount in unheated warehouses, eaves, or outdoor alcoves. If the environment dips below 10°C or climbs above 50°C regularly, this camera is the wrong choice—consider Axis P3375-LVE or Hanwha XNB-8005 for broader thermal range.
• Plastic Housing (Not IP66/IK10): Lacks ruggedness for forklift-prone areas, chemical spray, or impact risk. Install behind protective barriers or in genuinely clean, climate-controlled indoor spaces. Replace if mechanical damage is visible (lens scratch, body crack).
• Onboard Analytics Limitations: Intrusion and line-crossing work well in stable indoor scenes with consistent lighting. Dynamic outdoor scenes (trees, reflections, rain) generate 8–12% false-positive rate, so don't rely on the camera's edge detection for outdoor perimeter monitoring—pair with a dedicated outdoor analytics license if perimeter duty is critical.
• Audio One-Way Only: Microphone input only; no speaker output. Acceptable for evidence capture and ambient sound detection, but unsuitable for intercom applications (e.g., drive-through ordering, retail customer announcements). If bidirectional audio is required, upgrade to a dedicated two-way audio codec or intercom gateway.
• RTSP Bitrate Configuration: Card specs show 1.2 Mbps upload for 1080p/720p at 15 fps. Full-resolution (5MP) 30 fps streams at 2.0–2.5 Mbps H.265. Mobile/remote viewing on constrained bandwidth should use 720p sub-streams to avoid network churn. Test remote viewing over WAN before final site sign-off.

The FD819-HT-1Y is a solid choice for integrators speccing mid-to-large retail networks, office buildings, and K–12 schools where mixed-light surveillance, discreet form factor, and edge analytics reduce operational overhead. Avoid it for outdoor, unheated, or high-impact environments, and avoid it if you need two-way audio or PoE+ power capacity. Explore the Vivotek catalog to compare fixed-lens indoor domes and PTZ alternatives.
