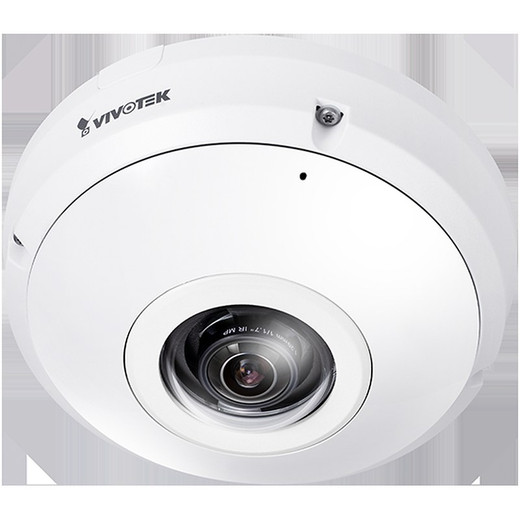

Vivotek Vortex FE912 H 1Y 12MP Indoor WDR Pro Fisheye Microphone IP Camera

Vivotek FE912-H-1Y 12MP Fisheye Indoor IP Camera

The Vivotek Vortex FE912-H-1Y is a premium 12-megapixel fisheye IP camera engineered for comprehensive indoor surveillance. Its 180° horizontal, vertical, and diagonal field of view eliminates blind spots, delivering panoramic coverage ideal for retail environments, corporate offices, warehouses, and public spaces. The combination of ultra-high resolution, advanced WDR Pro technology, and integrated analytics makes this camera a powerful tool for organizations requiring detailed monitoring across expansive areas.

Key Features

• 12MP Ultra-High Resolution: Captures exceptional detail across the entire fisheye field of view at up to 2944 x 2944 pixels in HD mode
• 180° Panoramic Fisheye Lens: Provides complete area coverage with no blind spots, eliminating the need for multiple cameras
• WDR Pro Technology: Automatically balances exposure across varying light conditions, ensuring clarity in both bright and shadowed areas simultaneously
• Built-in Microphone: Enables two-way audio communication and sound event detection for enhanced situational awareness
• Advanced Video Analytics: Includes intrusion detection, line crossing detection, loitering detection, and appearance search for both people and vehicles
• Day/Night Capability: IR cut filter and low-light sensitivity (0.1 lux color, 0.005 lux B/W) enable effective monitoring in challenging illumination
• PoE Power: Single RJ45 cable supplies both power and network connectivity, simplifying installation
• Onboard Storage: Built-in 512GB industrial-grade microSD card for local video backup and extended retention

Technical Specifications

Imaging & Optics: The camera features a 1/2.3" progressive CMOS sensor with a fixed f/1.22mm lens and F2.0 aperture. Variable shutter speed (1/5 to 1/32,000 sec.) ensures proper exposure across diverse lighting scenarios. The fixed iris design provides consistent performance in stable indoor environments.

Video Performance: Dual resolution support allows flexible deployment—HD mode delivers 2944 x 2944@15fps at 3Mbps upload bandwidth, while SD mode offers 1024 x 1024@15fps at 300Kbps for bandwidth-constrained networks. The effective microphone range of 5 meters captures audio within the primary surveillance area.

Connectivity & Security: IEEE 802.3af PoE Class 0 powers the camera at maximum 9W consumption. Network protocols include HTTP, HTTPS, RTSP/RTP/RTCP, and WebRTC. Security features encompass secure boot, signed firmware, HTTPS/TLS 1.2 encryption, and video encryption to protect sensitive footage. The camera supports up to 6 concurrent client connections with flexible viewing/playback combinations.

Environmental Design: The all-metal housing provides IP54 protection against dust and moisture. Operating temperature range of 10–50°C and 90% RH tolerance ensure reliability in indoor commercial and institutional settings.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The FE912-H-1Y represents Vivotek's flagship approach to panoramic indoor surveillance. The 12MP fisheye sensor delivers outstanding resolution density, critical for tasks like appearance-based analytics, facial detail capture, and post-event forensics across a 360° field. WDR Pro is particularly valuable in mixed-lighting environments such as retail floors with skylights or offices with mixed window and artificial illumination.

The built-in 512GB storage is a significant operational advantage, providing approximately 5+ days of continuous HD recording or substantially longer in motion-triggered modes—reducing dependence on network bandwidth and external storage infrastructure. Advanced analytics including re-search, profile search, and scene search enable rapid forensic investigation and pattern recognition.

At 9W maximum draw, this camera operates efficiently on standard PoE Class 0 infrastructure without requiring High Power PoE or supplemental injectors. The IP54 rating permits placement in semi-exposed indoor locations without enclosures. The 10-year warranty reflects Vivotek's confidence in long-term reliability, making this a cost-effective solution for organizations planning multi-year deployments.
