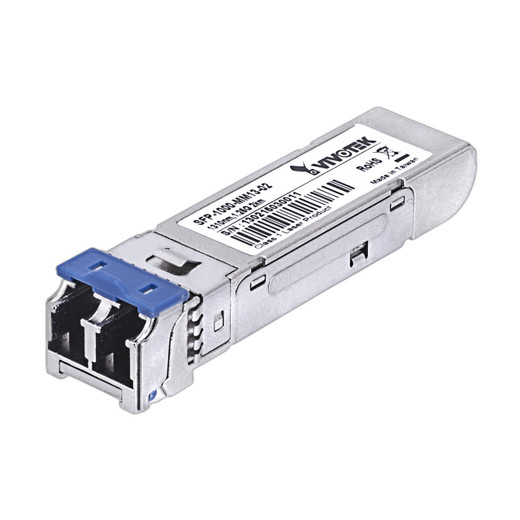

Vivotek SFP-1000MM85X5 Gigabit Multimode SFP Module

Vivotek SFP-1000-MM85-X5 Gigabit Multimode SFP Module

Overview

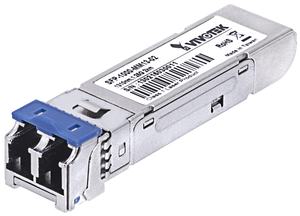

The SFP-1000-MM85-X5 is a 1.25 Gbps multimode fiber optic transceiver module designed to extend network reach in network infrastructure and IP camera deployments requiring fiber backbone connectivity. Operating at 850nm wavelength with a VCSEL laser source, this hot-pluggable LC connector module delivers stable transmission over multimode fiber up to 550 meters on 50/125µm cable or 300 meters on 62.5/125µm cable. The module is MSA-compliant and Class 1 laser-safe (IEC 60825-1 and FDA 21 CFR 1040), meaning it integrates into standard SFP slots on compatible equipment without requiring reconfiguration or separate safety enclosure.

Compatibility

This SFP module fits any device with an MSA-standard SFP slot—including Vivotek network switches, video management appliances, and third-party surveillance-grade network equipment supporting 1000BASE-SX fiber transceiver modules. The duplex LC connector and 850nm wavelength are industry-standard for multimode Gigabit Ethernet applications. Confirm your target device specifications before purchase to verify SFP slot availability and multimode fiber support. The module's 3.3V single-supply design and LVTTL logic interface match standard SFP pinout requirements across vendor platforms.

Installation Notes

Insert the SFP-1000-MM85-X5 into the target device's SFP slot and connect duplex LC fiber jumpers to your multimode backbone. No configuration is required—the module is hot-pluggable and auto-negotiates upon insertion. Operating temperature range is 0–70°C (commercial) or -5–85°C (extended); storage temperature tolerance extends to -40–85°C, supporting outdoor or uncontrolled-environment installations. Built-in digital diagnostic functions provide real-time optical power monitoring via DDM (Digital Diagnostic Monitoring), useful for troubleshooting fiber link quality. Ensure fiber connectors are clean and properly seated to avoid signal loss or digital errors.
