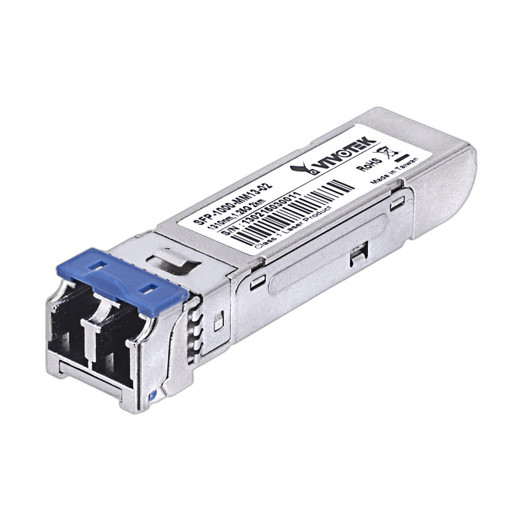

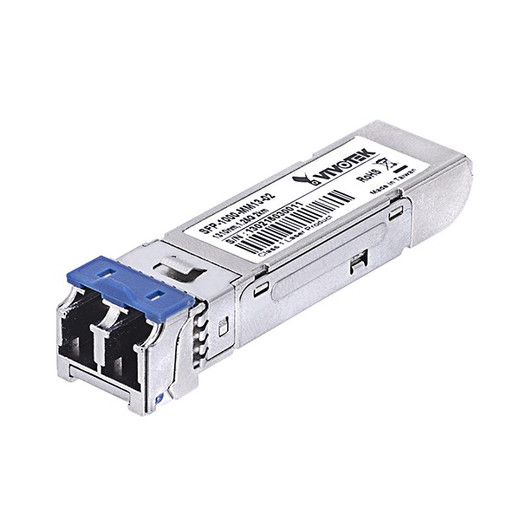

Vivotek SFP-1000-MM13-02 Gigabit Multimode SFP Module
Overview
The Vivotek SFP-1000-MM13-02 is a hot-pluggable 1.25 Gbps multimode SFP transceiver module designed to extend fiber optic connectivity in surveillance and IP security networks. Use this when you need to bridge camera or NVR systems across distances beyond standard copper Ethernet — multimode fiber reaches 550 meters on OM2 cabling, 300 meters on OM1 — while isolating electrical noise and avoiding ground loops in high-EMI warehouse or industrial environments. The module operates at 850nm wavelength with duplex LC connectors, conforming to SFF-8472 and IEEE 802.3z standards for guaranteed port compatibility across Vivotek and third-party SFP-equipped network switches.
Compatibility
The SFP-1000-MM13-02 is compatible with any Vivotek IP camera or network video recorder featuring a standard SFP port, as well as enterprise-grade managed switches supporting 1.25 Gbps SFP transceivers (Cisco, Juniper, Arista, Fortinet, and others using SFF-8472-compliant slots). Confirm your switch or camera's SFP cage accepts multimode modules at 850nm; do not mix single-mode and multimode fiber on the same link. The module's DDM (Digital Diagnostic Monitoring) feature via I2C enables real-time optical signal monitoring through compatible management interfaces, useful for long-distance fiber runs where insertion loss tracking prevents silent link degradation.
Installation Notes
Fiber cabling must match the module type: use OM2 (50/125µm) or OM1 (62.5/125µm) multimode fiber cables with LC duplex connectors. Do not exceed the stated transmission distance — 550m on OM2 or 300m on OM1 — to maintain receive sensitivity within specification (-18 to -3 dBm). Operating temperature range is 0°C to 70°C; storage tolerates -40°C to 85°C, so avoid ambient extremes during field installation. Power consumption is 0.8W maximum. Laser output is Class 1; do not inspect fiber connectors while the module is active. Confirm fiber cable routing avoids sharp bends (minimum 30mm bend radius recommended for multimode) and physical stress that could degrade optical properties. Clean LC connector ferrules with lint-free wipes before insertion to prevent contamination-induced signal loss.
What's in the Box
- 1x Vivotek SFP-1000-MM13-02 multimode SFP module
