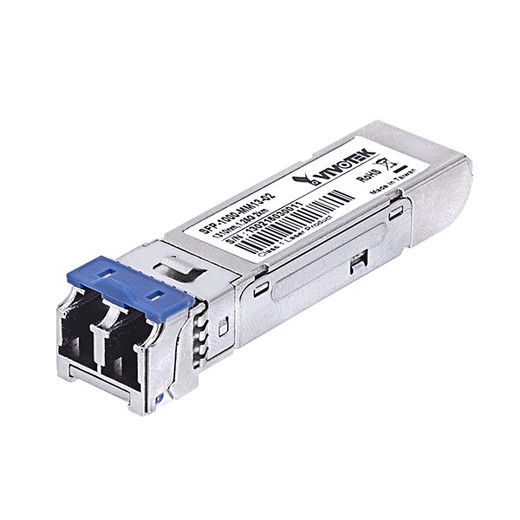

Vivotek SFP-1000-MM13-02I Industrial Gigabit SFP Module
Overview
The SFP-1000-MM13-02I is a 1.25 Gbps multimode fiber transceiver module built for surveillance networks and industrial deployments where extended fiber runs and temperature extremes are non-negotiable. This module delivers up to 2 kilometers of transmission range on standard 50/125µm or 62.5/125µm multimode fiber—enough to bridge multiple buildings or span large facility perimeters without intermediate equipment. Operating from -40°C to 85°C (storage to -40°C to 85°C), it solves the core problem of gigabit fiber backhaul in environments where commercial-grade modules fail: freezing warehouses, outdoor utility enclosures, sun-exposed conduit runs, and industrial production floors.
Compatibility
The SFP-1000-MM13-02I fits any network device with a standard SFP slot—switches, media converters, network interface cards, and surveillance-grade fiber optic equipment supporting 1.25 Gbps Gigabit Ethernet. It is MSA (Multi-Source Agreement) compliant, meaning it integrates with industrial-grade switches and Vivotek fiber-enabled NVRs and network appliances. Confirm your target device's SFP specifications (data rate, fiber type, wavelength) before purchase; this module is wavelength-specific at 1300/1310 nm and multimode-only.
Installation Notes
LC connectors require standard fiber connector tooling and care—dust covers must be installed and removed immediately before mating to prevent contamination. Operating voltage is 3.3V (internal regulation from module power pins). Transmission range is rated at 0.5 km on 850 nm variants; this model reaches 2 km on 1300/1310 nm over multimode. Humidity tolerance is 5–90% non-condensing; condensation inside fiber enclosures will degrade optical performance. Store modules in sealed containers or desiccant-protected packaging. Thermal cycling from -40°C to +85°C does not degrade performance, but rapid temperature swings can cause temporary optical power fluctuation—allow 30 seconds stabilization after environmental shock.
