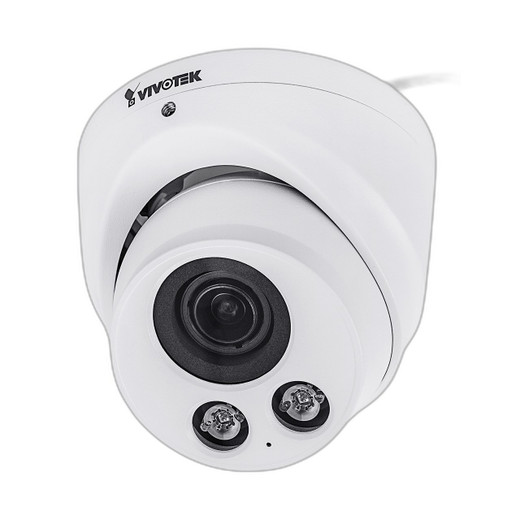

Model:
IT9388-HT
CPU:
Multimedia SoC (System-on-Chip)
Flash:
128 MB
RAM:
512 MB
Sensor Type:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Motorized, Vari-focal, Remote Focus
Focal Length:
f = 2.8 ~ 12 mm
Aperture:
F1.4 ~ F2.8
Iris Type:
Fixed iris
Field of View:
90° - 30° horizontal
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
IR LEDs, 30m range
Minimum Illumination:
0.035 Lux (Color) /
Pan Range:
360°
Tilt Range:
70°
Rotation Range:
360°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Capacity:
MicroSD/SDHC/SDXC, NAS
Built-in Installation Aids:
Remote focus, remote zoom
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
20 fps @ 2560x1920
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
61 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution & bit rate control
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sh
Audio Capability:
One-way Audio
Audio Compression:
G.711,.726
Audio Interface:
Built-in microphone
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Connectivity:
Wired
Compatibility:
ONVIF Profile S, T
Analytics:
Five-window video motion detection
VADP Package:
Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action:
Email, HTTP, FTP, NAS, SD card, push notification
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection
Input Voltage:
IEEE 802.3af PoE Class 0
Power (Max:
Max. 9.8 W/6.29 W (IR on/off)
Dimensions:
Ø 120 x 90.5 mm
Weight:
625 g
Features:
EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (
Operating Temperature:
-30°C to 60°C
Humidity:
90%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick install guide, stickers, screws, cable
Frame Rate:
30fps
Product Type:
Turret
Power Type:
PoE
Resolution:
5MP
Night Vision:
IR
Housing Color:
White
