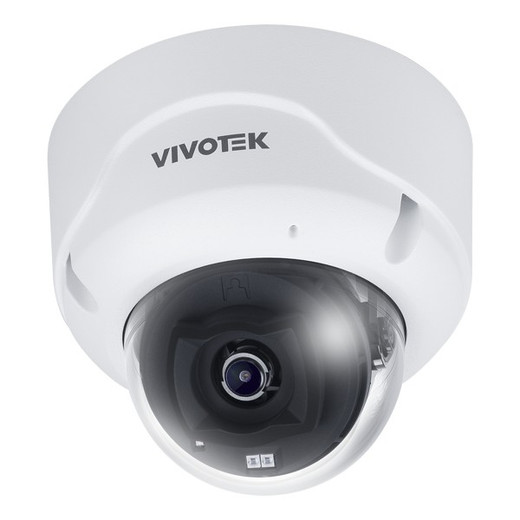

Vivotek FD9389-EHV-V3 5MP Outdoor Dome Camera
The Vivotek FD9389-EHV-V3 is a fixed outdoor dome engineered for perimeter security and facility monitoring where environmental durability and sustained image quality are non-negotiable. This 5MP (2560×1920) unit delivers full-resolution video at 60 fps, meaning you capture motion detail without blur—critical for license-plate reads, face recognition, or package theft at loading docks. The camera pairs a motorized varifocal lens with IP66 and IK10 ratings, so rain, dust, and impact damage won't require a service call.
Key Features
- 5MP resolution at 60 fps: Delivers crisp imagery at double the frame rate of most outdoor domes. At 60 fps, moving vehicles and personnel render smoothly—no jerky playback that obscures identity or action. Useful where real-time monitoring or detailed forensic review matters.
- Motorized varifocal 5-meter lens: Adjust zoom and focus remotely without climbing a ladder. Reduces field configuration time and lets you dial in the exact coverage zone for different seasons or after landscaping changes. The 5-meter range covers typical warehouse loading zones and parking perimeters.
- 5-meter built-in IR illumination: Extends night vision range without external lighting. For most outdoor warehouse and facility areas, this covers the primary threat zone and avoids the power draw and heat of brighter external IR arrays.
- IP66 and IK10 ratings: IP66 withstands sustained rain, hose-downs, and dust storms. Skip this camera only if you need full underwater submersion (IP67)—for rooftop, soffit, or eave mounting in temperate to harsh climates, IP66 is the practical sweet spot. IK10 vandal rating means direct impact from thrown objects won't damage the lens or housing. Non-negotiable in high-risk areas.
- Wide Dynamic Range (WDR): Handles scenes with mixed bright and shadowed areas—think a loading dock with direct sun and dark warehouse interior visible in the same frame. WDR keeps both zones readable without blown-out or crushed blacks.
- Day/night with automatic IR cut-filter switching: Transitions automatically between color (day) and B/W with IR (night) based on ambient light. No manual switching or extra sensors required.
- PoE+ (IEEE 802.3bt) powered: Single network cable supplies both power and data at approximately 20W max draw. Eliminates a separate 12VDC or 110VAC run—saves conduit, junction boxes, and installation labor. Verify your switch can supply PoE+ (not just standard PoE) if you're building out a multi-camera system.
- H.265, H.264, and MJPEG codec support: H.265 cuts storage and bandwidth consumption by 40–60% compared to H.264 in most scenes. On a 30-camera system recording 24/7, this difference translates to meaningful NVR storage savings or reduced network congestion.
- Two-way audio: Integrated microphone and speaker allow real-time communication—useful for remote access to alert a trespasser or coordinate with on-site personnel during an incident.
- AI Detection analytics: On-camera object detection flags people, vehicles, and loitering without offloading processing to a central VMS. Reduces false alarms and simplifies event review by filtering noise upstream.
- microSD slot for local edge recording: Survives network outages or NVR failure by storing video locally. Acts as a failsafe for critical incidents when connectivity is unreliable.
- ONVIF-compliant: Integrates seamlessly with Milestone, Genetec, Axis Camera Station, or any ONVIF-compatible NVR without proprietary licensing or vendor lock-in.
- Signed firmware and HTTPS encryption: Protects against firmware tampering and eavesdropping. Standard for any camera in a regulated or high-security environment.
Integration & Compatibility
The FD9389-EHV-V3 fits into any Vivotek IP camera deployment alongside standard PoE+ network switches. Its ONVIF Profile S compliance ensures compatibility with major VMS platforms, and its microSD backup mode makes it suitable for edge-recording architectures where centralized storage is impractical. Two-way audio and AI analytics reduce reliance on separate audio gear or third-party analytics software—simplifying your bill of materials and reducing configuration overhead. Review your network video recorder storage requirements to understand how H.265 impacts your retention window. If recording 24/7 across a large fleet, codec choice directly affects drive count and refresh cycles.
Frequently Asked Questions
Q: What is the maximum IR range on the Vivotek FD9389-EHV-V3?
A: The FD9389-EHV-V3 provides 5 meters (approximately 16 feet) of built-in IR illumination. This range covers most loading docks, parking perimeters, and facility entry points without external lighting. Beyond 5 meters, supplement with external IR fixtures if needed.
Q: Does the FD9389-EHV-V3 work with Milestone XProtect or Genetec?
A: Yes. The camera is ONVIF Profile S compliant, so it integrates with any ONVIF-compatible VMS including Milestone XProtect, Genetec Security Center, and Axis Camera Station without proprietary adapters or licensing.
Q: How much does the FD9389-EHV-V3 power draw?
A: Approximately 20W at full load via PoE+ (IEEE 802.3bt). Ensure your network switch supplies PoE+ power; standard PoE (802.3af) is insufficient. On a 48-port switch, verify available PoE+ budget before assigning ports.
Q: Can I mount the FD9389-EHV-V3 indoors?
A: The datasheet specifies outdoor deployment. While the IP66 rating provides weatherproofing, indoor mounting in a climate-controlled environment is possible; however, the design and thermal management assume outdoor conditions. Consult mounting guidelines for specific indoor use cases.
Q: Does H.265 compression reduce storage requirements compared to H.264?
A: Yes, H.265 typically cuts bitrate by 40–60% versus H.264 depending on scene complexity. For continuous 24/7 recording on multi-camera systems, this translates to fewer NVR drives and lower storage refresh costs.
Q: What happens if the network goes down—will the camera keep recording?
A: Yes. The microSD card slot allows local edge recording. Video is stored on the card independently of network or NVR connectivity, providing a failsafe for critical incidents during outages.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek FD9389-EHV-V3 is purpose-built for outdoor fixed-dome deployments where you need high frame rate (60 fps) without sacrificing environmental protection. The combination of 5MP at 60 fps, IP66/IK10 durability, motorized varifocal optics, and PoE+ power makes this camera a pragmatic choice for warehouse perimeters, parking structures, and facility loading zones where you can't rely on external IR or power infrastructure.
Technical Highlights:
- 60 fps at 5MP: Most outdoor domes max out at 30 fps, making them prone to motion blur on fast-moving subjects. At 60 fps, the FD9389-EHV-V3 captures vehicle license plates and personnel features with minimal ghosting—a real advantage in post-incident forensics.
- H.265 codec support: On a fleet of 24-48 cameras recording 24/7, switching from H.264 to H.265 saves roughly 40–60% bitrate per stream. Over a year, that's meaningful NVR storage savings. Most VMS platforms now support H.265 decoding natively, removing codec compatibility concerns.
- Motorized varifocal with 5-meter IR range: The combination lets you adjust field of view remotely and still maintain usable night vision. The 5-meter IR range is realistic for typical facility outdoor areas; don't expect it to illuminate a parking lot 50 meters out—that requires external IR.
- PoE+ at ~20W: Confirm your switch has PoE+ Class 4 budget available. A standard 48-port PoE+ switch typically allocates 95W per port pair, so power budget is not usually a blocker. However, if you're mixing high-draw cameras on a shared switch, verify upstream PSU capacity.
Deployment Considerations:
- IP66 is weatherproof, not submersible: The camera handles rain, hose-downs, and dust storms. If your installation involves splashing/submersion (e.g., near a fountain or open-air washdown area), IP66 may not be sufficient—upgrade to IP67 or higher.
- IK10 vandalism rating is robust but not indestructible: Direct impact from heavy objects (bricks, hammers) or sustained force can still damage the camera. Position the dome out of easy reach or pair with additional mechanical guards in high-risk areas.
- Motorized varifocal adds complexity: Remote focus/zoom are convenient during commissioning, but they add potential failure points. Ensure your network is stable and your integrator tests the lens servo before final sign-off. Dust or salt spray can eventually gum up the mechanism.
- microSD backup is not a substitute for NVR storage: The onboard microSD card (capacity varies by model configuration) provides a local copy, but retrieval and review require physical access or network recovery. Use it as an edge safety net, not your primary archive.
Deploy the FD9389-EHV-V3 when you need high-fidelity outdoor video at 60 fps, can supply PoE+ network power, and want to avoid external IR or AC power drops. Avoid this model if your deployment demands submersible (IP67+) durability, extremely long-distance IR coverage, or pan-tilt-zoom functionality.
