Model:

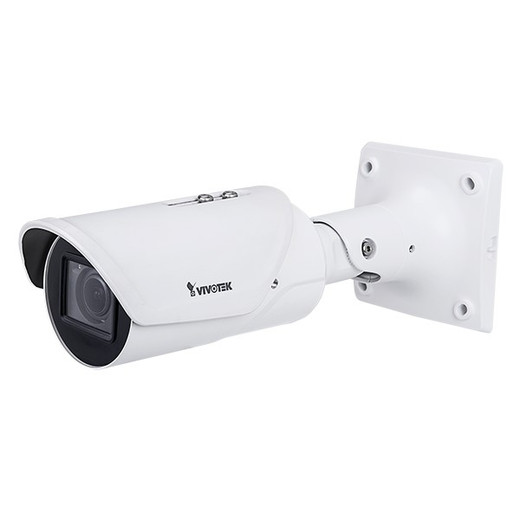

IB9387 LPR V2
CPU:
Multimedia SoC (System on Chip)
Flash:
1 GB
RAM:
2 GB
Image Sensor:
1/2.8” Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Motorized, Vari focal, Remote Focus
Focal Length:
f = 3.2~10.5 mm
Aperture:
F 1.6 ~ F 3.3
Iris Type:
P iris
Field of View:
97.3° ~ 27.9° (Horizontal); 70.3° ~ 20.9°(Vertical); 131.5° ~ 34.9° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR cut Filter:
Yes
IR Illuminators:
IR LED*4
Minimum Illumination:
0.06 lux @ F1.6 (Color);
Tilt Range:
90°
Rotation Range:
180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug in, 12x built in)
Storage:
Built in 32GB MicroSD card for LPR images; Slot type: MicroSD/SDHC/SDXC card slot; Seamless Recording
Built in Installation Aids:
Remote focus, remote zoom
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920 (WDR on); 30 fps @ 2560x1440 (WDR on)
Maximum Streams:
3 simultaneous streams
S/N Ratio:
60 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream II
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, s
Audio Capability:
Two way audio
Audio Compression:
G.711, G.726
Audio Interface:
External Microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface:
10 Base T/100 Base TX Ethernet; *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile G, S, T supported
Embedded Software:
VaxALPR
VADP Package:
Trend Micro IoT Security
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, sy
Event Action:
Camera: Event notification via digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card; ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, wiegand protocol
Connectors:
RJ 45 cable connector for Network/PoE connection; Audio line in; Audio line out; AC 24 V; DC 12 V; Digital input *2; Digital output *2 (dry contact, Load voltage 30V AC/ DC, Load current 1A max)
LED Indicator:
System power and status indicator
Power Input:
AC 24V, DC 12V, IEEE 802.3at PoE Class 4
Power Consumption:
PoE: Max. 26 W; DC 12V: Max. 29.5 W; AC 24V: Max. 28 W
Dimensions:
118 x 118 x 294 mm
Weight:
1.3 kg
Casing:
IP66, IP67, IK10 (Metal Housing)
Certifications:
EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015+Q71: 2020, BS EN 55035:2017+Q71:2020, BS EN IEC 62368 1:2020+Q71:2020), RCM (AS/NZS CISPR 32 Class A), FCC (FCC Part 15 Subpart B Class A), ICES (ICES 003 Issue 7), VCCI (VCCI CISPR 32 Clas
Operating Temperature:
Starting Temperature: 10°C ~ 60°C (14°F ~ 140°F); Working Temperature: 30°C ~ 60°C ( 22°F ~ 140°F)
Humidity:
90%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installation guide, alignment sticker, L shaped wrench, screw pack, waterproof accessory pack, sunshield
