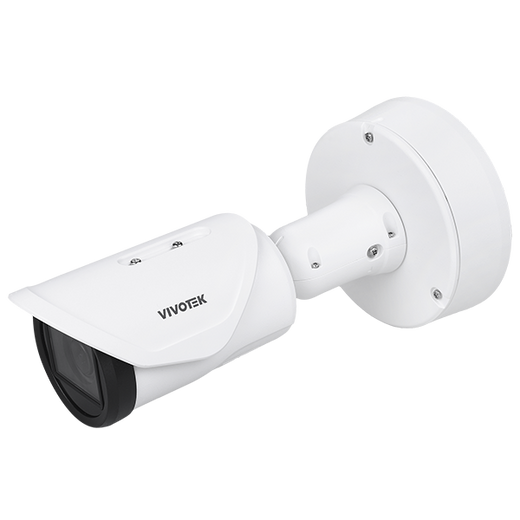

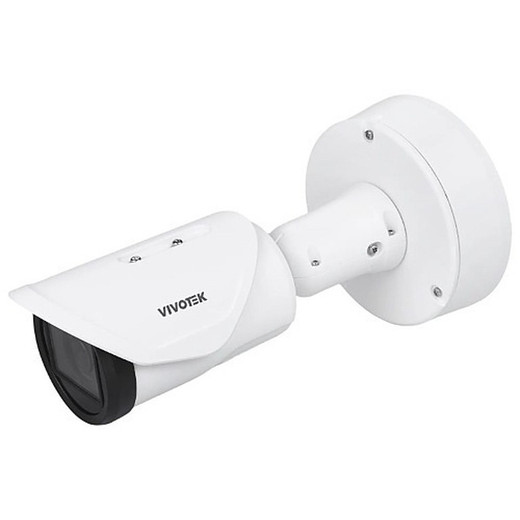

Vivotek IB9387-EHTV-V3(2.7-13.5 MM) 5MP Outdoor Bullet Camera
The Vivotek IB9387-EHTV-V3(2.7-13.5 MM) is a fixed-mounting outdoor bullet camera engineered for surveillance deployments where field-of-view adjustments must happen after installation without pulling a technician back to the site. The motorized 2.7–13.5mm lens with P-iris and remote focus control allows you to zoom, sharpen, and adjust aperture from the control room or mobile app—eliminating expensive return trips when perimeter coverage or target framing needs seasonal adjustment. This matters in multi-camera warehouse perimeters, transportation yards, or industrial parks where zoom repositioning happens monthly or quarterly.
Key Features
- 5MP resolution (2592 × 1944) at 30 fps: Delivers sufficient pixel density for facial recognition and license plate capture at mid-range distances—roughly 30–50 feet depending on lens setting and lighting. 30 fps maintains smooth motion in real-time monitoring and review. Useful for identifying individuals or vehicles before they exit the coverage zone.
- 2.7–13.5mm motorized zoom lens with P-iris: 5x optical zoom range eliminates the need to install separate wide-angle and telephoto cameras for a single coverage area. P-iris automatically adjusts iris diameter as you zoom, maintaining consistent depth-of-field and exposure. Motor-driven focus means you adjust sharpness remotely rather than physically unscrewing the lens housing on a ladder.
- 50-meter (164 ft) infrared illumination: Built-in 850nm IR extends usable night surveillance to 164 feet in total darkness. Reach is critical for unlit perimeter fencing, parking lots, and loading docks where ambient light is absent or unreliable. Image remains usable without streetlight supplementation.
- H.265 codec with H.264 and MJPEG fallback: H.265 reduces file size roughly 40–50% compared to H.264 at equivalent quality—a direct reduction in storage cost when recording 24/7 across dozens of cameras. Backward compatibility with H.264 and MJPEG ensures integration with older network video recorders or legacy edge storage appliances without transcoding overhead.
- WDR PRO and 3D noise reduction: WDR PRO handles backlit scenes (glare from windows, reflective surfaces, vehicle headlights) without crushing shadow detail in darker areas. 3DNR maintains usable image clarity when IR is the primary light source, typical in overnight industrial and perimeter surveillance. Reduces temporal noise artifacts that degrade object detection accuracy.
- IP66 weatherproofing and IK10 impact resistance: IP66 rating means direct rain, dust, and spray won't penetrate the housing. IK10 impact rating withstands mechanical stress from vandalism attempts, vibration, or accidental strikes. Operating temperature range of -40°C to 60°C (-40°F to 140°F) supports arctic shipping facilities and high-temperature outdoor storage yards without thermal shutdown or image degradation.
- PoE (802.3af) or DC 12V power: Draws under 13W via standard 802.3af PoE, so your existing network switch can support dozens of these cameras without PoE+ upgrade or dedicated power supplies. DC 12V option accommodates analog-era infrastructure or remote sites where network cabling hasn't been installed yet.
- Two-way audio and I/O expansion: Built-in speaker and microphone support voice-down-the-line announcements or alarm-triggered warnings. Optional I/O module adds relay outputs and alarm inputs for integration with door access systems, strobe lighting, or external sirens.
- Vision Object Analytics: On-camera people and vehicle detection reduces false alarm overhead in high-traffic zones. Automated event tagging accelerates video review during incident investigation—you can filter recordings to show only frames where people or vehicles were detected.
Integration & Compatibility
The IB9387-EHTV-V3 supports ONVIF Profile S, Profile T, and Profile G, meaning it integrates with standard VMS platforms like Milestone XProtect, Genetec Security Center, and AxxonSoft without custom driver development. Signed firmware and secure boot protect against malware injection. For PoE switch planning, calculate 13W per camera and add 20% headroom for environmental variance, then verify your switch has sufficient PoE budget before deployment. A typical 48-port managed switch with 90W PoE budget can comfortably support 6–8 of these cameras alongside other devices.
When to Choose a Different Model
If your facility requires sub-zero operation below -40°C, or if you need higher than 5MP resolution for distant facial recognition (100+ feet), consider a higher-megapixel variant in the Vivotek outdoor bullet line. If fixed framing is acceptable and remote zoom isn't needed, a fixed-lens model will reduce cost and eliminate motor-related service calls. If you require image capture under extremely high-glare or backlit conditions with minimal shadow crushing, evaluate models with advanced Forensic WDR variants. If your NVR or storage appliance mandates H.264-only codec support, confirm that fallback mode is enabled before deployment.
Frequently Asked Questions
Q: What is the maximum detection range for the on-camera people and vehicle analytics on the IB9387-EHTV-V3?
A: Vision Object Analytics detection range depends on lens setting and resolution per pixel. At the 13.5mm telephoto position with 5MP sensor, typical detection occurs 60–80 feet; at 2.7mm wide angle, 20–30 feet. Exact range varies with lighting, contrast, and object size. Test in your actual environment before relying on it for access control decisions.
Q: Does the IB9387-EHTV-V3 support automatic day/night switching?
A: Yes. The camera includes automatic IR cut filter switching. During daytime, the filter blocks IR illumination and allows visible light only. At night or in low light, the filter retracts and 850nm IR illumination engages automatically. You can also configure manual override via the control interface if needed.
Q: Can I use a standard 802.3af PoE injector instead of a managed PoE switch?
A: Yes. A single PoE injector can power one IB9387-EHTV-V3 camera. For multiple cameras, use either a managed PoE switch with sufficient wattage budget (13W per camera, verified on the switch datasheet) or cascade multiple injectors. Confirm your network cabling is CAT5e or higher to minimize voltage drop.
Q: Is the IB9387-EHTV-V3 NDAA Section 889 compliant?
A: Vivotek is a Taiwan-based manufacturer. NDAA Section 889 compliance restrictions apply to covered telecommunications equipment and video surveillance equipment from Chinese-origin companies; Vivotek equipment is not subject to those restrictions. If your project requires NDAA-compliant equipment, this camera is eligible for consideration. Confirm with your procurement officer for your specific contract requirements.
Q: What is the warranty on the IB9387-EHTV-V3?
A: Standard manufacturer warranty is 3 years from ship date, covering defects in materials and workmanship. Extended warranty options may be available through authorized distributors. Contact your supplier for details on coverage terms and claim procedures.
Q: Can I operate the motorized zoom and focus lens in a -40°C environment?
A: Yes. The camera is rated for operation down to -40°C. The motorized lens, including the motor and control circuitry, is designed for this range. In extreme cold, lens mechanics may respond slightly more slowly, but functionality is preserved. Allow 10–15 minutes for the camera to stabilize thermally after power-on if transitioning from indoor storage to outdoor cold.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IB9387-EHTV-V3(2.7-13.5 MM) hits a specific operational sweet spot: motorized zoom without the complexity or cost of a PTZ camera. The 5x zoom range (2.7–13.5mm) with motor-driven P-iris and remote focus means you can deploy a single camera where you'd normally need two fixed-lens units, and you can re-frame the shot weeks after installation. That remote adjustment capability saves significant field labor on large perimeter projects.
Technical Highlights:
- H.265 codec with 40–50% file size reduction: On a 24/7 quad-camera NVR setup recording at 5MP/30fps, H.265 can cut your weekly storage growth in half. That translates to doubling your retention window on fixed-capacity drives—30 days becomes 60 days on the same hardware.
- 50m IR range with 3DNR: 850nm illumination at 164 feet is sufficient for most unlit perimeters. 3D noise reduction keeps IR-lit footage sharp enough for object detection algorithms. You don't get clean facial detail at maximum IR range, but vehicle silhouettes and person/vehicle detection trigger cleanly.
- 13W PoE draw under 802.3af ceiling: This camera will not spike above standard PoE budget, so you're not forced into PoE+ infrastructure upgrades. At 13W max, a 90W budget PoE switch handles 6–7 cameras comfortably, leaving headroom for access control readers or other IoT devices on the same switch.
- IP66 and IK10 dual rating: IP66 handles rain and dust ingress; IK10 handles impacts and vibration stress. In high-vandalism or rough-handling environments (loading docks, access gates), this durability combination outlasts cameras with weaker impact ratings.
Deployment Considerations:
- Motor response in cold: Below -20°C, the motorized lens will respond more slowly to zoom and focus commands. If your facility operates in sub-arctic conditions and you need rapid lens adjustment cycles, budget extra time for motor lag or test the actual response before committing to remote tuning.
- Analytics detection distance is zoom-dependent: Vision Object Analytics detection range varies dramatically with lens position. At wide angle (2.7mm), people detection starts around 20–30 feet. At telephoto (13.5mm), 60–80 feet. If you're using on-camera detection to trigger recording or alarms, test your specific lens setting and lighting before relying on it for critical event capture.
- IR bleed in mixed-light scenes: When IR is enabled and the camera is pointed toward streetlights or vehicle headlights, the IR channel can create visible flare or wash-out in some WDR scenarios. Test framing with actual nighttime conditions; WDR PRO minimizes this, but it's not eliminated entirely.
Deploy the IB9387-EHTV-V3 when you need flexible mid-range coverage without PTZ servo complexity, PoE power is already available, and H.265 storage savings align with your 24/7 recording plans. The motorized zoom justifies itself on projects where re-commissioning field technician visits for lens adjustments exceed the cost of the motor hardware.
