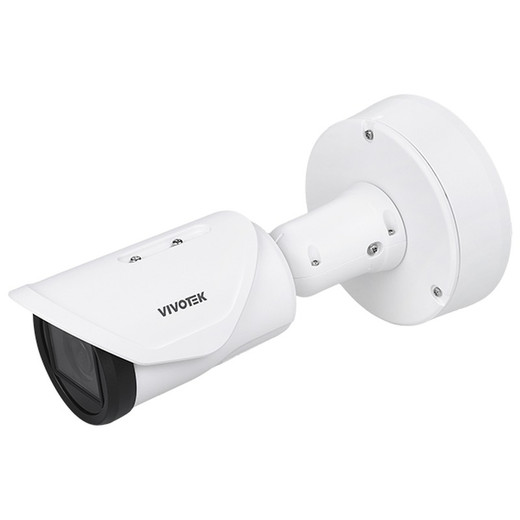

Vivotek IB9387-LPR-V3 5MP Outdoor LPR Bullet Camera
The Vivotek IB9387-LPR-V3 is a purpose-built 5MP outdoor bullet camera engineered for license plate recognition in demanding environments such as parking facilities, toll collection systems, and perimeter security. This vandal-resistant camera combines embedded LPR analytics with a motorized 2.7–13.5mm varifocal lens and 50m infrared range to reliably capture and process license plates across variable lighting conditions and distances. H.265 video compression optimizes bandwidth and storage utilization while maintaining sharp 2560x1920 resolution at 30 fps.
Key Features
- 5MP resolution at 30 fps with H.265, H.264, and MJPEG codec support
- Motorized varifocal lens (2.7–13.5mm) with remote focus and P-Iris control
- Embedded License Plate Recognition (LPR) software with Wiegand protocol support
- 50m infrared night vision with day/night switching and 3D Noise Reduction
- 120dB WDR Pro for high-contrast environments and backlit scenes
- IP67 weather sealing and IK10 vandal resistance with metal housing
- PoE (802.3af) power delivery at maximum 12W consumption
- F1.4 aperture for enhanced low-light sensitivity
- Audio support for event correlation and incident verification
- MicroSD local storage for extended video retention
- ONVIF compatibility for third-party VMS integration
- HTTPS encryption for secure network communication
- Operating temperature range: −10°C to 60°C
- Embedded Trend Micro IoT Security for network threat protection
Technical Specifications
- Form Factor: Bullet
- Sensor: 5MP at 30 fps
- Lens: Motorized varifocal 2.7–13.5mm with P-Iris
- IR Range: 50m with built-in infrared LEDs
- Image Enhancement: WDR Pro, 3D Noise Reduction, day/night mode
- Video Compression: H.265, H.264, MJPEG
- Analytics: LPR with Wiegand output
- Connectivity: Ethernet (RJ-45) with ONVIF support
- Power: PoE (802.3af), 12W max
- Durability: IP67 rated, IK10 vandal resistant
- Dimensions: 4.65″ W × 4.65″ H × 11.57″ D
- Storage: MicroSD card slot for local backup
Applications
The IB9387-LPR-V3 is ideal for parking management systems, automated toll collection, access control at secure perimeters, and law enforcement plate tracking. Its embedded LPR engine eliminates dependency on external servers for plate capture, reducing latency and improving system reliability. XML/JSON integration capabilities enable seamless deployment in parking management, toll collection, and weighbridge platforms.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IB9387-LPR-V3 represents a mature solution for organizations requiring integrated LPR without external processing overhead. The motorized varifocal lens and P-Iris mechanism allow field technicians to optimize focus and exposure post-installation, reducing commissioning time. The F1.4 aperture combined with 50m IR range and WDR Pro ensures consistent plate capture across dawn, dusk, and nighttime periods—critical for 24/7 toll and parking applications.
PoE (802.3af) at 12W max enables deployment over extended runs using standard Cat5e cabling. IK10 vandalism resistance suits outdoor perimeter and parking environments prone to tampering. HTTPS encryption and Trend Micro IoT security meet baseline enterprise network security requirements.
For users already committed to ONVIF-based VMS platforms, this camera integrates without custom drivers or licensing fees.
