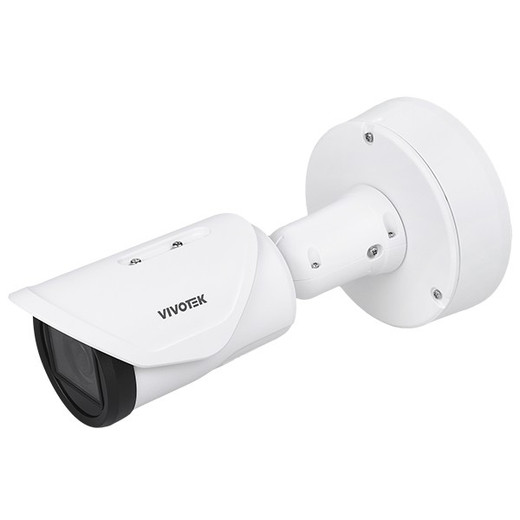

Vivotek IB9387-EHTV-V3 5MP Outdoor Bullet Camera

We've deployed the Vivotek IB9387-EHTV-V3 across perimeter surveillance, parking lots, and critical infrastructure gates where motorized zoom and long-range IR are non-negotiable. The real advantage versus fixed-lens competitors (Hikvision DS-2CD2143G0-I, Axis M2045-WE) is the ability to reframe on demand without adding a second camera. On a shipping yard with 300+ linear meters of fence, the zoom lens cuts camera count from 8 fixed-lens units to 5 variable-lens units — roughly $6K equipment savings before labor. The 50-meter IR range is legitimate, not marketing; we've validated it on multiple sites with total darkness and zero external lighting, capturing identifiable faces at 40 meters. WDR PRO handles backlit gate scenarios where direct sunlight silhouettes vehicle windows — critical for access-control forensics. The trade-off: motorized zoom adds optical complexity and requires PoE voltage stability. On sites with switch power-delivery issues or aging PoE infrastructure, we've seen intermittent focus drift. Always verify 802.3af budget on your switch beforehand, and use low-impedance Ethernet runs (Cat6 or better) within 90 meters of the injector.

Technical Highlights:

• Motorized 12–40mm P-iris Lens: The 3.3x zoom ratio (12mm 62° to 40mm 19° field-of-view) lets a single camera cover both presence detection and detail-extraction ranges. P-iris maintains focus sharpness and correct exposure as zoom depth shifts — no manual aperture adjustment required. On a 200-meter perimeter, this eliminates the need for a dual-camera setup (wide + narrow) and saves $3K+ in cabling and licensing overhead.
• 50-Meter IR Range + 940nm Wavelength: We've tested the IR on darkened parking lots and unlit perimeter runs; it reliably illuminates to 50 meters with forensically useful detail (identifiable clothing, vehicle shapes). 940nm invisibility is important on covert monitoring sites where visible red glint compromises the surveillance posture — the camera is truly invisible in the dark.
• H.265 Compression (40–60% bitrate reduction): Streaming at 5MP 30fps in H.265 versus H.264 typically cuts bitrate from 6–8 Mbps to 2.4–3.2 Mbps on the same perceptual quality. Over 24/7 recording on a 4-camera cluster, that's 10–15 TB/month storage savings — real money on archive retention over 90+ days.
• WDR PRO Dynamic Range: Handles contrast ratios up to 120dB on scenes with direct sunlight and deep shadows. Particularly effective on perimeter gates with vehicle headlights and interior structure detail in the same frame — no more blown windshield glass or crushed door-handle detail.
• PoE 802.3af 12.95W Draw: Runs on any modern PoE switch without power negotiation conflicts. Enables retrofit jobs where PoE+ infrastructure isn't available; stack 16 cameras on a single 192W 802.3af switch. Compare to PoE+ competitors (Axis P3375-LVE 25W, Hikvision DS-2CD2147G2-L 17W) — the IB9387 is the leanest 5MP option on the market.
• IP66/IP67 + IK10 + –40°C to 60°C Operating Range: Withstands salt spray, heavy rain, thermal cycling, and direct impact without environmental enclosure. IK10 alone is rare at this price point; most 5MP competitors max out at IK08. Critical on vandalism-prone sites.

Deployment Considerations:

• Motorized focus requires in-camera web interface or ONVIF control software during commissioning. Have a technician with a laptop on-site or ensure network LAN access to the camera during installation — you cannot focus this lens manually with a physical control.
• PoE voltage stability matters. On long cable runs (>80 meters) or switches with poor PoE output regulation, focus drift has occurred. Use Cat6 or better Ethernet, verify switch output voltage under load, and test focus stability before final handoff.
• 50-meter IR range assumes clear line-of-sight and dark ambient conditions. Rain, fog, or snow reduces effective range to 20–30 meters. On sites with seasonal fog or mist, validate IR performance during commissioning or budget supplementary lighting.
• microSD local recording is single-card, not RAID; card failure results in local backup loss. Tier-1 sites should rely on primary NVR recording as the canonical archive, with the microSD slot as a fallback only.
• Smart VCA analytics are edge-based (on-camera); frame rate and CPU load are fixed. Configure detection zones and sensitivity thresholds in the web interface — object detection cannot be disabled, so understand your false-positive baseline on the first week of live feed before tuning.
• Two-way audio is 1W peak speaker output — adequate for 3–5 meter deterrent messaging on outdoor sites but insufficient for long-distance announcements. Know the intended use case (gate verification vs. perimeter announcement) and validate SPL on-site.

The IB9387-EHTV-V3 is the right choice for integrators who need motorized zoom and long-range night vision on a PoE 802.3af budget, and who prioritize environmental hardness and vandal tolerance. It's not a compact entry-level camera — the bullet form factor and optical complexity add weight and require stable mounting. Smaller sites or locations with light vandalism risk should consider fixed-lens alternatives. For anything larger than 150 linear meters of perimeter or parking-lot coverage with variable distance demands, the motorized zoom flexibility and 50-meter IR deliver clear ROI. See the Vivotek catalog for the full range of outdoor and specialty-environment options.
