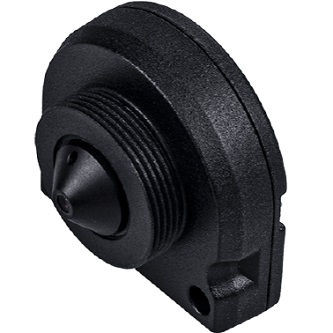

Vivotek CU9171-HF 4MP Flat Pinhole Covert Indoor Mini IP Camera
Vivotek CU9171-HF 4MP Flat Pinhole Covert Indoor Mini IP Camera
The Vivotek CU9171-HF represents the next step in covert surveillance technology. Designed for discrete operations, this 4MP flat pinhole camera is pe…
Vivotek CU9171-HF 4MP Flat Pinhole Covert Indoor Mini IP Camera
$320.00
$234.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
CU9171-HF
UPC:
4710469353123
Condition:
New
Availability:
Usually Ships Same Business Day
Warranty
2-Year Warranty
Description
The Vivotek CU9171-HF represents the next step in covert surveillance technology. Designed for discrete operations, this 4MP flat pinhole camera is perfect for indoor environments where unobtrusive monitoring is critical. Despite its compact form, the CU9171-HF does not compromise functionality, delivering high-resolution video footage with exceptional clarity and detail. Its advanced pinhole lens and flat design make it almost invisible, which makes it ideal for scenarios requiring stealth without sacrificing video quality.
Key Features:
- 4MP Resolution: Provides clear, high-definition images, ensuring detailed footage.
- Flat Pinhole Design: Ultra-discreet profile for covert surveillance in sensitive areas.
- WDR Enhanced: Captures details vividly in scenes with contrasting light levels.
- SNV (Supreme Night Visibility): Offers clear, color-accurate footage in low-light conditions.
- H.265 Compression: Efficiently reduces file sizes and bandwidth usage.
- Smart Stream III: Minimizes bandwidth and storage requirements further when combined with H.265.
- On-board Storage: Supports MicroSD/SDHC/SDXC card storage up to 256 GB.
- Mobile Viewing: Compatible with Vivotek’s mobile app for viewing from smartphones and tablets.
Compatibility:
- Video Management Software: Compatible with Vivotek VAST 2.
- Network: Ethernet connection with support for PoE for flexible installation and minimal wiring.
- Operating Systems: Works seamlessly with Windows and macOS for viewing and management.

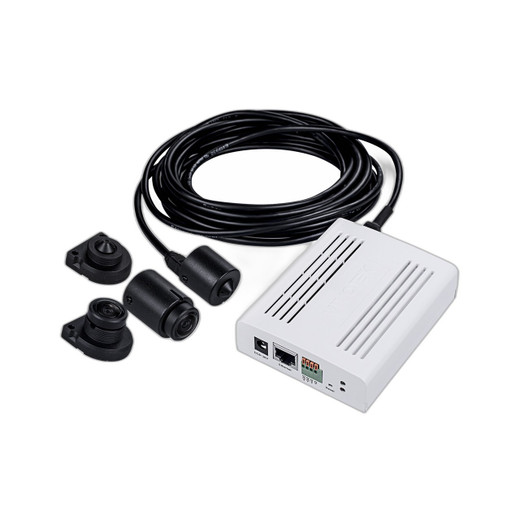

Package Contents:
- Flat Pinhole Camera Module
- Mounting Brackets
- Quick Installation Guide
- Warranty Card
- Software CD
Summary: The Vivotek CU9171-HF is uniquely positioned in the market as a powerful yet nearly invisible surveillance solution. Its cutting-edge design and technology cater to businesses needing discrete monitoring without compromising video quality. This camera is an excellent choice for areas requiring high-security surveillance with minimal visual impact.
Specifications
Model:
CU9171-H(F): Pinhole
Sensor Type:
1/2.7" Progressive CMOS
Max Resolution:
30 fps @ 2688x1520
Focal Length:
f = 3.7 mm
Aperture:
F2.5
Field of View:
93° (Horizontal); 48° (Vertical); 117° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Minimum Illumination:
0.045 lux @ F2.5 (Color)
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
S/N Ratio:
55.9 dB
Dynamic Range:
120 dB
Dimensions:
CU9171-H: Ø 24 x 30 mm (Without cable); CU9171-HF: 33 x 32 x 20 mm (Without cable)
Weight:
43g
Operating Temperature:
Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F); Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Humidity:
90% RH (non-condensing)
Detect (25PPM/ 8PPF:
CU9171-H(F): 77 m (252.6 ft)
Observe (63PPM/ 19PPF:
CU9171-H(F): 30.5 m (100.1 ft)
Recognize (125PPM/ 38PPF:
CU9171-H(F): 15.4 m (50.5 ft)
Identify (250PPM/ 76PPF:
CU9171-H(F): 7.7 m (25.3 ft)
Frame Rate:
30fps
Product Type:
Modular
Connectivity:
Wired
Power Type:
PoE
Resolution:
4MP
Night Vision:
IR
