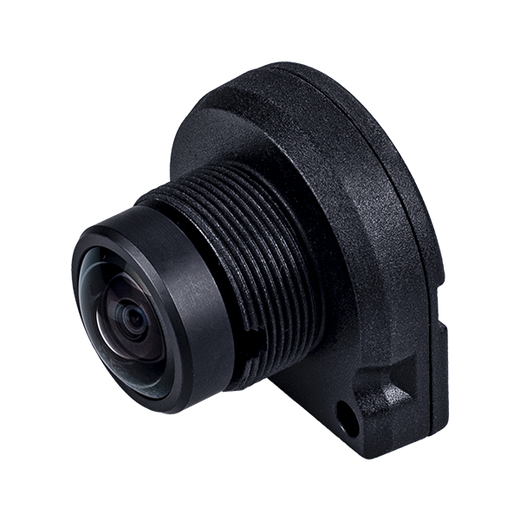

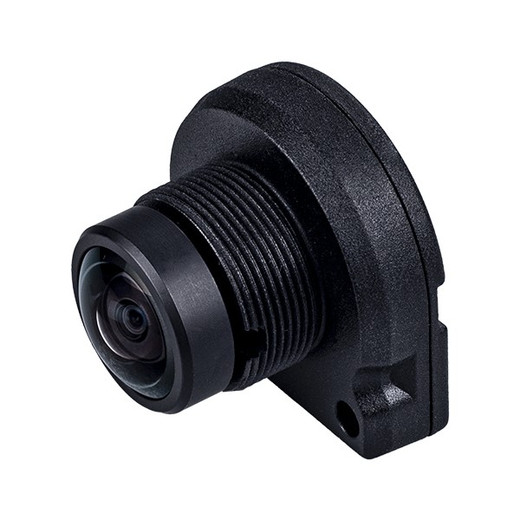

Vivotek CU9183-HF 5MP Fisheye Indoor Mini Camera

The Vivotek CU9183-HF is a premium 5MP fisheye IP camera engineered for discreet indoor surveillance in security-conscious environments. Its exceptionally flat form factor (33 x 32 x 28 mm) and compact 52g weight make it ideal for integration into luxury retail, corporate offices, galleries, and hospitality spaces where aesthetic integrity is paramount. The camera delivers a full 180-degree panoramic field of view both horizontally and vertically, eliminating blind spots while requiring minimal physical footprint.

Key Features

• 5MP High-Resolution Imaging: 1920x1920 resolution at 30 fps captures exceptional detail across panoramic scenes
• 180° Panoramic Coverage: Eliminates the need for multiple cameras in single areas, reducing installation complexity and cost
• Flat Discreet Design: Ultra-slim profile integrates seamlessly into modern indoor environments without visual obtrusiveness
• WDR Pro Technology: Delivers balanced exposure in mixed lighting—critical for retail and gallery applications with varied illumination
• Exceptional Low-Light Performance: 0.035 lux minimum illumination (Color) and 56.3 dB S/N ratio ensure visibility in dimly lit spaces
• 48x Digital Zoom: ePTZ enables detailed examination of specific areas within the panoramic frame
• PoE Power: Single Ethernet connection eliminates separate power infrastructure, simplifying deployment
• 120 dB Dynamic Range: Handles extreme lighting contrasts inherent to modern commercial interiors

Technical Specifications

The CU9183-HF features a 1/2.7" Progressive CMOS sensor with f/1.22mm focal length and F2.0 aperture, optimized for ultra-wide capture. Its shutter range (1/5 sec. to 1/32,000 sec.) accommodates dynamic lighting conditions. Operating across -10°C to 50°C, the camera withstands temperature fluctuations common in commercial HVAC-controlled spaces. The 90% RH non-condensing humidity tolerance ensures reliable operation in climate-controlled indoor environments.

Performance Metrics

Surveillance effectiveness extends to 24.3 meters for detection (25 PPM), 9.6 meters for observation (63 PPM), 4.8 meters for recognition (125 PPM), and 2.4 meters for identification (250 PPM)—metrics critical for personnel and asset identification in compliance scenarios.

Ideal Applications

• Luxury retail and boutique surveillance
• Corporate office and executive suite monitoring
• Museum and gallery asset protection
• High-end hospitality and reception areas
• Confidential facility access control

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CU9183-HF represents a sophisticated solution for environments where traditional dome or turret cameras compromise design aesthetics. Its fisheye architecture and flat form factor address a growing market segment demanding surveillance without visual compromise. The 180-degree panoramic capability—a rarity in compact form factors—delivers genuine coverage density advantages over conventional cameras.

WDR Pro and ultra-low illumination specs position this camera for high-end retail and gallery applications where lighting control is limited. PoE simplicity and 5MP resolution provide reliable forensic detail for incident review. This camera prioritizes deployment elegance and panoramic coverage density over PTZ range, making it exceptional for fixed, wide-angle monitoring in aesthetically sensitive spaces.
