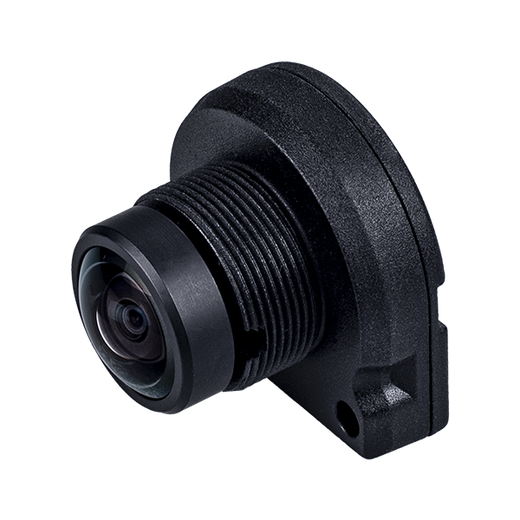

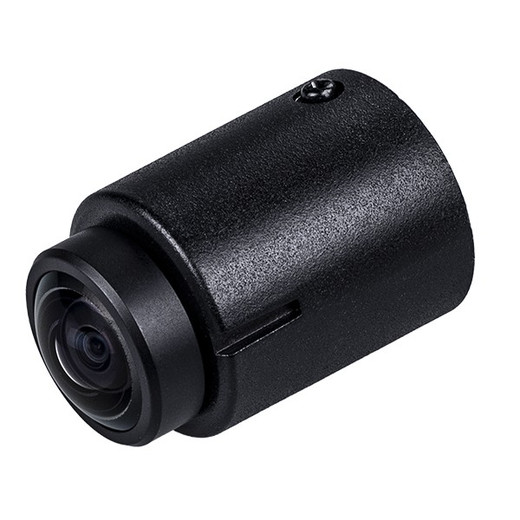

Vivotek CU9183-H 5MP Fisheye Indoor Mini Camera
The Vivotek CU9183-H is a compact 5MP fisheye IP camera engineered for discreet indoor surveillance requiring panoramic coverage. Measuring just 24mm in diameter and weighing 28g, this ultra-compact design delivers 180-degree horizontal, vertical, and diagonal coverage while maintaining a minimal visual footprint—ideal for environments where aesthetics and unobtrusive monitoring are critical priorities.
Key Features
- 5MP Resolution at 30fps: Captures 1920x1920 pixel imagery at 30 frames per second for fluid, high-definition panoramic surveillance
- 180-Degree Fisheye Lens: Single lens provides expansive coverage, reducing the need for multiple fixed cameras and simplifying installation
- WDR Pro Technology: Balances exposure across bright and dark areas simultaneously, ensuring detail preservation in mixed lighting environments
- Exceptional Low-Light Performance: Minimum illumination of 0.035 lux at F2.0 with integrated IR, enabling color surveillance in near-darkness
- 120dB Dynamic Range: Handles extreme lighting variations without loss of image detail
- ePTZ Digital Zoom: 48x zoom capability via software for forensic investigation and close-up verification
- PoE Powered: Single-cable installation simplifies deployment and reduces infrastructure requirements
- Progressive CMOS Sensor: 1/2.7" sensor with advanced electronic shutter (1/5 to 1/32,000 sec.) for motion artifact elimination
Technical Highlights
The CU9183-H utilizes a 1.22mm focal length with F2.0 aperture, delivering exceptional light sensitivity critical for indoor monitoring. Superior 56.3dB signal-to-noise ratio ensures clean imagery across all lighting conditions. The camera maintains operational performance across -10°C to 50°C working temperatures and tolerates 90% non-condensing humidity, making it suitable for diverse indoor environments.
Detection Performance: The camera achieves 24.3m detection range (25PPM), 9.6m observation range (63PPM), 4.8m recognition range (125PPM), and 2.4m identification range (250PPM)—supporting investigative workflows from initial threat detection through positive identification.
Applications
Ideal for retail environments, office spaces, art galleries, museums, and hospitality venues where comprehensive coverage and design discretion are equally important. The 180-degree panoramic view eliminates blind spots while the compact form factor integrates seamlessly into existing décor. Particularly suited for entrance monitoring, reception areas, and high-value asset zones requiring unobtrusive surveillance.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CU9183-H addresses a critical market need: panoramic surveillance without the visual impact of traditional dome cameras. The 180-degree fisheye design eliminates the coverage gaps inherent in fixed cameras, while exceptional low-light performance (0.035 lux) ensures usable color imagery in conditions where conventional sensors require infrared. WDR Pro technology proves invaluable in retail and hospitality applications with windows or mixed interior/exterior lighting.
The 5MP specification, while modest by modern standards, delivers sufficient pixel density for the camera's stated detection ranges. The 48x digital zoom compensates for the wide field of view, enabling forensic review of specific areas. PoE integration reduces total installation cost and complexity—a single cable replaces separate power runs. For organizations prioritizing aesthetic integration without sacrificing panoramic coverage, this camera represents an efficient, cost-effective solution.
