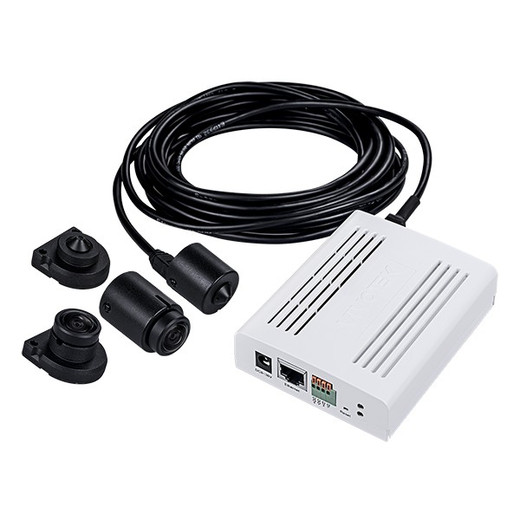

Model:
VC9101
CPU:
Multimedia SoC (System-on-Chip)
Flash:
8B
RAM:
2B
On-board Storage:
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Compression:
H.265, H.264, MJPEG
Video Source:
1 VIVOTEK camera unit
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
Video Streaming:
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation (CU9171-H(F) only)); Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness,amma curve (CU9171-H(F) only)), defog, 3
Display Mode:
Client dewarping (CU9183-H(F) only); Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramic, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4
Audio Capability:
Two-Way Audio (full duplex)
Compression:
G.711,.726
Interface:
External microphone input; External line output
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, CSRF prote
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface:
10 Base-T/100 Base-TX Ethernet (RJ-45); *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF:
Profile, S, T supported, specification available at www.onvif.org
Smart Motion Detection:
Five-window video motion detection, face detection, time filter
Alarm Triggers:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, s
Alarm Events:
Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mbps Network/PoE connection; Audio line input; Audio line output; DC 12V power input; Digital input *1; Digital output *1 (12V, 50mA)
LED Indicator:
System power and status indicator
Power Input:
DC 12V, IEEE 802.3af PoE Class 0; Simultaneous Power Redundancy Supported
Power Consumption:
Max. 8.5 W
Dimensions:
105 (W) x 84 (D) x 30 (H) mm
Weight:
190 g
Safety Certifications:
EMC: CE (EN55032, EN55024 Class B), FCC (FCC Part 15 Subpart B Class B),; RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B);; Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);; Environment: IA: BSMI (EMC: CNS 13438,
Operating Temperature:
Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F); Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Humidity:
90% RH (non-condensing)
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, installation kit
