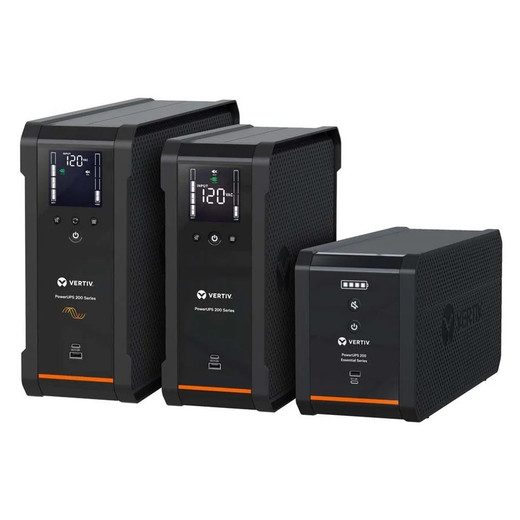

Vertiv PSA6S-1500LVT 1440VA/915W 120V Line-Interactive UPS
Overview
The Vertiv PSA6S-1500LVT is a 1440VA/915W line-interactive uninterruptible power supply designed for commercial security installations, network closets, and surveillance equipment rooms where clean, conditioned power is non-negotiable. At 26.5 lbs and 4.72" wide, it fits tower deployments in equipment racks or on shelves without demanding dedicated rack space. If you're protecting NVRs, PoE switches, or access control panels, this is the class of device that keeps those systems running through brownouts and brief outages — and keeps your warranty intact by preventing unclean shutdowns.
The PSA6S-1500LVT (often searched as PSA6S 1500LVT) draws from Vertiv's power protection line, a product family built around commercial and enterprise uptime requirements. For security integrators specifying network video recorders or PoE switches, this UPS sits in the load range that realistically covers a 16-channel NVR plus a managed PoE switch without pushing the unit to its ceiling.
Key Features
- 1440VA / 915W Power Rating: The 915W true watt rating — not just the VA figure — is what matters for sizing. Most commercial NVR + switch combinations land between 200W and 600W, so this unit carries a typical mid-sized surveillance closet with meaningful headroom. More headroom means longer runtime per battery charge cycle and less thermal stress on the unit under normal loads.
- Greater Than 95% Efficiency at Full Load: A sub-5% loss rate means the unit isn't bleeding significant energy as heat during normal operation. For 24/7 surveillance deployments, that efficiency difference compounds over months of runtime — both in electricity cost and in reduced heat output inside the equipment cabinet.
- 120V AC Input and Output: Designed for standard North American single-phase circuits. No transformer, no adapter — wire it into an existing 120V circuit and it delivers conditioned 120V to connected equipment. Straightforward for any commercial building electrical environment.
- Line-Interactive Topology: Line-interactive UPS units actively regulate voltage during sags and surges without switching to battery — the most common power events in commercial facilities. Battery is reserved for genuine outages, which extends battery service life compared to online double-conversion designs that cycle battery on every fluctuation.
- Tower Form Factor (4.72" W × 11.42" H × 16.93" D): The narrow 4.72" width keeps it from dominating shelf space in a wiring closet. At 16.93" deep, verify your shelf depth before install — this is not a compact unit front-to-back.
- 26.5 lb Unit Weight: Heavier than desktop UPS options but appropriate for the capacity. Wall-shelf or floor installations are fine; overhead mounting is not a practical scenario at this weight.
Integration and Compatibility
The PSA6S-1500LVT operates on standard 120V AC infrastructure, making it compatible with the full range of North American commercial security hardware — NVRs, managed network switches, access controllers, and intercom systems. Line-interactive topology is broadly compatible with switching power supplies used in modern IP security equipment. Confirm your total connected load in watts (not VA) before sizing — a UPS sizing guide can help match runtime requirements to battery capacity for your specific device mix.
Frequently Asked Questions
Q: What is the true watt rating of the PSA6S-1500LVT?
A: The PSA6S-1500LVT is rated at 915W (1440VA). When sizing, always use the watt figure — the VA rating alone can overstate usable capacity depending on the power factor of connected equipment.
Q: What input voltage does the PSA6S-1500LVT require?
A: It requires a standard 120V AC input, compatible with North American single-phase commercial circuits. It is not designed for 208V or 240V environments without additional equipment.
Q: Is the PSA6S-1500LVT rack-mountable?
A: The unit is a tower form factor measuring 4.72" W × 11.42" H × 16.93" D. Rack-mount conversion kit compatibility is not confirmed in available evidence — verify with Vertiv if rack installation is required.
Q: What is the efficiency rating of the PSA6S-1500LVT?
A: Greater than 95% at full load, meaning less than 5% of input power is lost as heat during peak operation — relevant for thermal management in enclosed equipment cabinets running 24/7.
Q: What types of equipment is this UPS suited to protect?
A: The 915W capacity covers commercial surveillance closets running NVRs, PoE switches, access control panels, and related IP security hardware. It is not sized for server rooms with high-density compute loads.
When I spec a UPS for a surveillance closet, the first number I check is watts — not VA. The PSA6S-1500LVT delivers 915W of true output capacity, which is the figure that actually tells you whether your NVR, PoE switch, and access panel will stay online. In my experience, most integrators underestimate their connected load by 15–20% when they size off VA alone, and that margin matters when you're running 24/7.
Technical Highlights:
- 915W / 1440VA Capacity: Enough headroom to cover a mid-sized IP security stack — 16-channel NVR plus a 24-port PoE switch — while staying well below the unit's ceiling, which extends battery cycle life.
- Greater Than 95% Efficiency: At full load, you're losing less than 5% to heat. In a locked equipment closet running year-round, that's meaningful for both operating cost and ambient temperature inside the cabinet.
- Tower Form Factor (4.72" × 11.42" × 16.93"): The narrow width works well on a wire-management shelf, but the 16.93" depth is the dimension to check — shallow shelving in older IDF closets often tops out at 14–15" usable depth.
Deployment Considerations:
- Verify your shelf depth before ordering — at 16.93" deep and 26.5 lbs, this unit needs solid support and adequate clearance for ventilation at the rear.
- The 120V input means this is a North American deployment unit; it is not appropriate for international sites running 230V without a separate step-down transformer, which would negate the efficiency gains.
The PSA6S-1500LVT is a practical fit for commercial surveillance equipment rooms protecting a mix of NVRs and managed PoE switches — particularly in retail or mid-sized commercial facilities where 120V single-phase circuits are standard and the equipment load sits in the 300–700W range.
