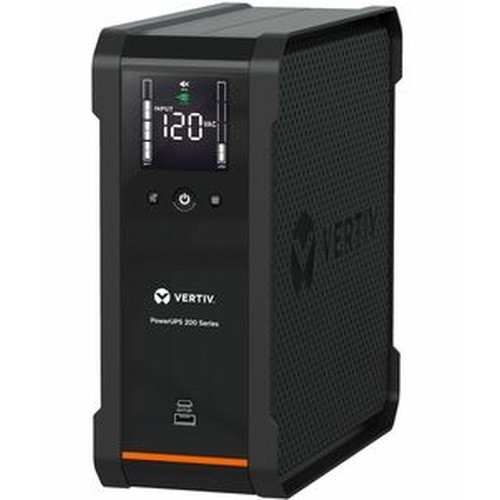

Vertiv PSA6-1000LVT 1000VA Line Interactive Desktop UPS
Overview
The Vertiv PSA6-1000LVT is a 1000VA/625W line interactive desktop UPS built for workstations, network closets, point-of-sale terminals, and light surveillance head-end equipment where clean, conditioned power matters as much as runtime. With automatic voltage regulation, a ten-outlet configuration, and a 3-year full-unit warranty that covers the battery, this unit addresses the full cost-of-ownership picture that standard UPS warranties ignore. If your environment sees frequent sags, surges, or brownouts, the PSA6-1000LVT (often searched as PSA6 1000LVT) is worth a closer look before you wire up a rack of cameras or workstations without power conditioning.
Key Features
- 1000VA / 625W Capacity: Sized for a mid-tier workstation, NVR, or small network stack. At 625W true power delivery, you have enough headroom for a desktop NVR plus a managed PoE switch without riding the unit at near-capacity — critical for battery longevity. Size up if your load regularly exceeds 80% of this rating.
- Automatic Voltage Regulation (AVR): AVR corrects incoming voltage sags and swells without switching to battery. In environments where utility power fluctuates — strip malls, older commercial buildings, job sites — this keeps connected equipment running on stable power and extends battery life by reserving battery for true outages rather than routine line noise.
- 10 Outlets (7 Battery Backup + 3 Surge-Only): The 7 battery-backed outlets protect your priority loads; the 3 surge-only outlets handle peripherals like monitors or chargers that don't need runtime. This lets you prioritize runtime on the equipment that actually needs it rather than wasting VA budget on every attached device.
- User-Replaceable Batteries: When the battery reaches end-of-life, a technician doesn't need to replace the entire unit or schedule a service call. Swap the battery on-site, which matters in distributed deployments where downtime is measured in response time, not just inconvenience.
- Color LCD Runtime Display with Alarm Management: The LCD shows remaining runtime and load level in real time, so you can make informed decisions during an outage — shut down gracefully or hold position. The alarm mute button prevents nuisance noise in quiet environments (reception areas, small offices) without disabling the protection itself.
- USB-A and USB-C Charging Ports: Built-in device charging ports keep tablets, phones, and handheld scanners powered without consuming one of the protected AC outlets. Useful on a security desk or POS counter where outlet count is always tight.
- Dataline Surge Protection: Protects connected ethernet or telephone lines from transient surges that bypass the AC outlets entirely. A common failure point on installations that protect the AC side but leave the data port exposed.
- Vertiv Power Assist Software (Free): The included software enables automated graceful shutdown on extended outages, UPS event logging, and runtime monitoring from a connected PC. For unattended deployments — remote offices, back-of-house server rooms — automated shutdown prevents file corruption during prolonged power loss.
- Greater Than 95% Efficiency at Full Load: High efficiency means less heat generated and lower operating cost over time. In a 24/7 always-on deployment, even a few percentage points of efficiency translate to measurable energy savings across a fleet of UPS units.
Integration and Compatibility
The PSA6-1000LVT connects to a host system via USB for software monitoring and control through the free Vertiv Power Assist application. The desktop form factor (11.34 in H × 4.72 in W × 11.42 in D, 18.7 lbs) fits under a desk, on a equipment shelf, or alongside a desktop workstation without requiring rack space. Input and output are both 120 VAC, compatible with standard North American electrical infrastructure. The UPS category includes both desktop and rack-mount options depending on your installation requirements — consult the Vertiv product line if you need a rack-mount variant or higher VA capacity. For surveillance head-end applications, pair this unit with a compatible network video recorder to protect recording continuity during power events. If you're planning power protection for a larger camera or networking deployment, review the PoE switch category to size protection correctly across your full load.
Frequently Asked Questions
Q: What is the battery warranty on the PSA6-1000LVT?
A: The PSA6-1000LVT includes a 3-year full unit warranty that explicitly covers the battery with advanced replacement — not a prorated battery replacement common on lower-tier UPS products.
Q: Can the battery be replaced without sending the unit in for service?
A: Yes. The PSA6-1000LVT features user-replaceable batteries, so a technician can swap the battery on-site without returning the unit to a service center.
Q: Does the PSA6-1000LVT require any software to operate?
A: No. The UPS operates standalone with the built-in LCD runtime display and alarm management. The free Vertiv Power Assist software is optional and adds automated graceful shutdown and event logging via USB connection to a host PC.
Q: How many outlets does the PSA6-1000LVT provide, and which are battery-backed?
A: The unit provides up to 10 total outlets: 7 battery backup and surge protected, and 3 surge-only. Priority loads (NVR, switch, workstation) should connect to the battery-backed outlets; peripherals can use the surge-only outlets.
Q: What does Automatic Voltage Regulation (AVR) do on the PSA6-1000LVT?
A: AVR corrects incoming voltage sags and swells without switching to battery power. This protects connected equipment from line fluctuations common in older commercial buildings and extends battery life by reserving it for true outages.
Q: What are the physical dimensions and weight of the PSA6-1000LVT?
A: The PSA6-1000LVT measures 11.34 in H × 4.72 in W × 11.42 in D and weighs 18.7 lbs. It is designed for desktop placement and does not require rack hardware.
The spec that stands out to me on the PSA6-1000LVT is the 3-year warranty that includes the battery with advanced replacement — most desktop UPS products at this price point either exclude the battery entirely or prorate it after year one, leaving you holding a replacement cost right when the unit matters most. For a 1000VA/625W line interactive unit, that full-coverage warranty changes the total cost calculation meaningfully.
Technical Highlights:
- AVR on a Line Interactive Platform: Line interactive topology with AVR means the unit corrects voltage without a battery transfer — no microsecond switchover gap that trips sensitive equipment, and the battery is preserved for genuine outages rather than being cycled by routine voltage fluctuations.
- 7 Battery-Backed Outlets at 625W True Power: With 625W available across 7 protected outlets, you can run a mid-tier NVR (typically 40–80W), a managed PoE switch (varies widely, 50–150W), and a workstation or monitor without overloading the unit — provided you calculate your actual load before committing all seven outlets.
- Greater Than 95% Efficiency at Full Load: For a 24/7 deployment this is a real number, not a marketing footnote. A unit running at 60–80% load continuously at 95%+ efficiency generates less heat and draws less from the circuit than comparable units rated at 88–92%.
Deployment Considerations:
- At 18.7 lbs and 11.34 inches tall, this is a floor or shelf unit — verify clearance before deploying in a tight under-desk or equipment closet position, especially with the rear outlet orientation.
- The Vertiv Power Assist software requires a USB connection to a host PC for graceful shutdown automation. In headless NVR deployments with no attached PC, automated shutdown is not available without additional management hardware — factor this in for unattended remote sites.
The PSA6-1000LVT is the right fit for a small surveillance head-end or network closet where the operator wants line conditioning, a credible battery warranty, and basic software monitoring without stepping up to a rack-mount or network-card-managed unit. If your deployment is a single NVR, a PoE switch, and a workstation in a branch office or retail back room, this unit sizes correctly and the included warranty removes the battery replacement guessing game.
