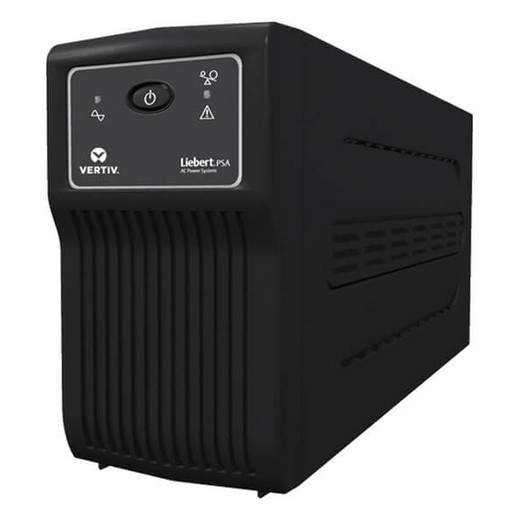

Vertiv PSA6-1500LVT Line Interactive Desktop UPS, 1440VA/935W Pure Sinewave
Overview
The Vertiv PSA6-1500LVT is a 1440VA/935W line interactive desktop UPS designed for security control rooms, NVR closets, and distributed IT edge deployments where clean, uninterrupted power is non-negotiable. Part of the Vertiv PowerUPS 200 Premium series, the PSA6-1500LVT delivers pure sinewave output — not the simulated sinewave found on most similarly priced units — which matters when your load includes active PFC power supplies found in modern NVRs, workstations, and network gear. AVR keeps output stable across input sags and swells without switching to battery, extending battery life and protecting connected equipment from chronic undervoltage damage common in commercial buildings.
Key Features
- 1440VA / 935W Capacity: At 935W true power output, this unit comfortably supports a mid-density NVR plus a managed PoE switch and a workstation simultaneously — most 8- to 16-channel NVR installations draw well under 300W combined, leaving meaningful headroom for runtime extension or additional loads.
- Pure Sinewave Output: Active PFC power supplies — standard in enterprise NVRs, server-grade hardware, and modern workstations — require a pure sinewave input or they'll trip, throttle, or fail silently. The PSA6-1500LVT produces genuine sinewave output on battery, not a stepped approximation, so your load behaves identically whether on utility power or battery.
- Automatic Voltage Regulation (AVR): AVR bucks and boosts incoming voltage to a stable 120V output without touching the battery. In commercial buildings where voltage sags during HVAC cycling or elevator starts are routine, AVR prevents unnecessary battery discharge and protects sensitive electronics from the gradual degradation caused by chronic undervoltage.
- 10 Outlets (7 Battery + Surge, 3 Surge Only): The outlet split is practical for mixed loads — put your NVR, switch, and critical workstation on the seven battery-backed outlets, and route monitors, USB chargers, or peripheral gear to the three surge-only outlets. This keeps your runtime calculation honest by not drawing battery capacity on non-critical loads.
- User-Replaceable Batteries: When the battery pack reaches end of service life (typically 3–5 years depending on cycling), field replacement requires no service call and no downtime. For installations in unmanned equipment rooms, this is operationally significant — swap the pack, reset the alarm, continue. Check Vertiv's replacement battery compatibility before ordering a replacement pack.
- Color LCD Runtime Indicator: The LCD displays estimated runtime in minutes under current load, input/output voltage, and load percentage — the information a technician actually needs during a power event. Most basic UPS units offer only a vague LED charge indicator; the PSA6-1500LVT gives you numbers to work with.
- USB-A and USB-C Charging Ports: Onboard USB charging ports let you keep a tablet, phone, or handheld device topped up without consuming an outlet. In a security operator station this is a practical convenience — the operator's mobile device stays charged without occupying a protected circuit.
- Dataline Surge Protection: Ethernet and coax lines are often overlooked surge paths. The integrated dataline protection guards connected network equipment against transient surges that bypass the power protection entirely — relevant when the UPS is protecting gear at the edge of a building where outdoor runs enter the network.
- Vertiv Power Assist Software: The included management software communicates over USB and enables graceful OS shutdown during extended outages, event logging, and scheduled self-tests. Pair with a network management card or rely on the USB interface for direct-attached management.
- Over 95% Efficiency at Full Load: Running above 95% efficiency at full load keeps operating costs low and heat output minimal — meaningful in a densely packed equipment rack or desktop installation where thermal management is a constraint.
Integration and Compatibility
The PSA6-1500LVT accepts 120 VAC input and delivers 120 VAC output — standard North American voltage throughout. The USB interface connects directly to Windows and Linux hosts for software-based shutdown management. For security deployments, pair this unit with a managed PoE switch on the battery-backed outlets to maintain camera uptime through a grid outage. The 26.5 lb desktop form factor sits on a shelf or equipment table; it is not rack-mountable without a separate conversion kit. Dimensions are 11.42 in (H) × 4.72 in (W) × 16.93 in (D) — measure your shelf depth before placing it in a confined equipment space, as the 16.93-inch depth is the constraint most integrators underestimate.
Vertiv Power Assist software supports graceful shutdown for connected servers and workstations, which matters when the UPS is protecting a recording server that writes to disk continuously. An unmanaged hard shutdown on a 24/7 NVR risks database corruption and lost footage; configuring automatic shutdown before the battery depletes is a basic but critical step. Learn more about sizing and planning in our UPS selection guide.
Frequently Asked Questions
Q: Does the PSA6-1500LVT produce a true pure sinewave output or a simulated sinewave?
A: The PSA6-1500LVT produces genuine pure sinewave output on battery. This is a critical distinction if your connected equipment uses active PFC power supplies, which are standard in most modern NVRs, workstations, and managed switches. Simulated (stepped approximation) sinewave can cause active PFC supplies to trip or operate erratically.
Q: What is the warranty on the PSA6-1500LVT?
A: The PSA6-1500LVT carries a 3-year manufacturer warranty covering the full unit including the battery — an above-average coverage term for a desktop UPS at this capacity. Confirm warranty registration requirements with Vertiv at time of purchase.
Q: Can the batteries be replaced in the field without a service call?
A: Yes. The PSA6-1500LVT uses user-replaceable batteries designed for field swap without tools or specialized training. This is intentional for commercial deployments where minimizing service downtime matters. Verify the correct replacement battery part number with Vertiv's compatibility documentation before ordering.
Q: Is the PSA6-1500LVT rack-mountable?
A: The PSA6-1500LVT is a desktop form factor unit (11.42 in H × 4.72 in W × 16.93 in D, 26.5 lbs). It is not natively rack-mountable; a separate rack conversion kit would be required. If rack mounting is a hard requirement, evaluate Vertiv's tower/rack convertible UPS models in the same power class.
Q: How many outlets does the PSA6-1500LVT provide, and how are they split?
A: The unit provides 10 total outlets: 7 are battery backup plus surge protected, and 3 are surge protection only. This split allows you to prioritize battery runtime for critical loads (NVR, switch, workstation) while protecting non-critical peripherals against surges without drawing down battery capacity.
Q: What software is included and how does it connect?
A: The PSA6-1500LVT includes Vertiv Power Assist software, which connects via the unit's USB interface. It supports graceful OS shutdown during extended outages, event logging, and scheduled self-tests. This is particularly important for NVR and recording server deployments where an unmanaged hard shutdown risks data corruption.
The spec I always check first on a line interactive unit is whether the output is genuine pure sinewave or a stepped approximation — with the PSA6-1500LVT, Vertiv confirms pure sinewave, which is the only safe answer when you're protecting active PFC loads. In a 16-camera NVR deployment with a PoE switch and management workstation, the 935W capacity gives you real headroom; most configurations I've seen in that class land under 350W total, so you're well within the efficiency curve at full load and have room to grow.
Technical Highlights:
- Pure Sinewave Output: Not an approximation — genuine sinewave on battery. Modern NVR power supplies with active PFC correction will fail silently or trip on a modified sinewave UPS; this unit eliminates that failure mode entirely.
- AVR Without Battery Cycling: Automatic Voltage Regulation corrects sags and swells at the transformer stage before the battery sees them. In commercial environments where voltage fluctuations during HVAC or elevator cycling are common, AVR is what keeps the battery healthy over a multi-year deployment life.
- 3-Year Warranty Including Battery: The battery is typically the first component to go on a UPS, and most manufacturers exclude it from the standard warranty. Vertiv's 3-year full-unit coverage including battery is an operationally significant distinction — it means your battery replacement is covered within the standard warranty window for most commercial installation cycles.
Deployment Considerations:
- Configure Vertiv Power Assist software for graceful shutdown before deploying in any environment with a continuously recording NVR or server. The USB interface is straightforward to commission, but this step is frequently skipped — and an unmanaged hard shutdown during a deep discharge event is how you corrupt a surveillance database.
- Measure your equipment shelf depth before finalizing placement: at 16.93 inches deep and 26.5 lbs, the PSA6-1500LVT (often searched as PSA6 1500LVT) will not fit in shallow wall-mount enclosures or compact AV credenzas without planning. The 4.72-inch width is narrow, but the depth is the constraint.
This unit is a strong fit for a security operations desk or NVR equipment room where the load is known, desktop placement is acceptable, and battery runtime under real load needs to be legible on-screen rather than guessed. The LCD runtime readout makes it practical for operator-staffed environments where non-technical personnel need to make a 'how long do we have?' decision during a grid outage.
