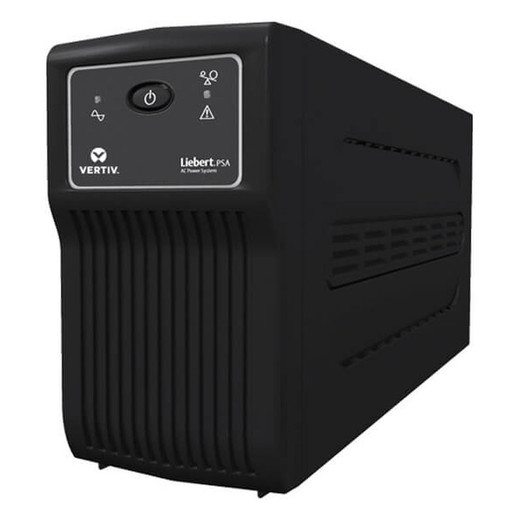

Vertiv PSA6E-1500LVT Line Interactive Desktop UPS
Overview
The Vertiv PSA6E-1500LVT is a 1440VA/850W line interactive desktop UPS from the Vertiv PowerUPS 200 series — a compact but capable power protection unit designed for workstations, network closets, edge computing nodes, and network video recorders in commercial and light industrial environments. With pure sine wave output, automatic voltage regulation, and a 10-outlet layout, it handles the nuanced power demands of sensitive electronics without forcing a full battery-transfer on every minor fluctuation. If you're protecting an NVR stack or a small server closet where power quality isn't guaranteed, this is the tier of UPS worth deploying rather than the cheapest stepped-approximation units on the market.
The PSA6E-1500LVT (often searched as PSA6E 1500LVT) ships with a 3-year manufacturer warranty and user-replaceable batteries, which matters operationally — no depot return required when the battery pack degrades after 3–5 years of float duty.
Key Features
- 1440VA / 850W Capacity: At 850W true watts, this unit will carry a mid-range workstation plus dual monitors, or a 4–8 channel NVR with several PoE cameras, through short outages without tripping. The VA-to-watt ratio (0.59 power factor) is honest about real-world loads — size your load to the 850W figure, not the VA rating.
- Pure Sine Wave Output: Unlike stepped-approximation (modified sine) UPS units, the PSA6E-1500LVT outputs a true sine wave on battery — required for active PFC power supplies found in most modern workstations, servers, and NVRs. Deploying a modified-sine UPS behind active PFC hardware causes audible buzzing, power supply heat stress, and potential premature failure. Pure sine eliminates that problem entirely.
- Automatic Voltage Regulation (AVR): AVR corrects under- and over-voltage conditions (brownouts, sags, swells) without switching to battery. This extends battery life significantly in environments with chronic low-voltage from a loaded branch circuit — a common scenario in older commercial buildings or warehouse power distribution panels.
- 10-Outlet Configuration (7 + 3): Seven outlets provide battery backup and surge protection; three additional outlets handle surge-only loads. This lets you prioritize which devices stay running on battery (NVR, switch, workstation) while still protecting peripheral gear (monitors, chargers) that can safely drop during an outage.
- LCD Screen with Alarm Mute: The front-panel LCD gives real-time visibility into input/output voltage, load percentage, and battery status — useful during commissioning to verify the load isn't near capacity, and during incidents to understand what the unit is doing. Alarm mute keeps the audible beeping from disrupting a staffed environment during extended utility events.
- USB-A and USB-C Charging Ports: Built-in charging ports on the unit body are a practical convenience in rack-adjacent or desk deployments where outlets are already claimed by protected loads. Not a primary spec, but reduces cable management pressure in tight spaces.
- Dataline Surge Protection: Protects connected network or telephone lines from transient surges — relevant when the UPS sits at a network edge node or camera head-end where both power and data lines enter from outside the building.
- User-Replaceable Battery: Batteries can be swapped in the field without tools or depot return. For a UPS that will run in a remote IDF closet or camera head-end room, this is a meaningful operational advantage — maintenance staff can swap the battery without pulling the unit from service or shipping it anywhere.
- Greater Than 95% Efficiency at Full Load: High efficiency reduces heat output and operating cost. At full load the unit wastes less than 5% of input power as heat — relevant in enclosed equipment spaces where thermal load compounds across multiple devices.
- USB Connectivity: USB communication port allows software-based monitoring and graceful shutdown via compatible UPS management software, enabling automated safe shutdown of connected systems before battery depletion during extended outages.
Integration and Compatibility
The PSA6E-1500LVT operates on standard 120 VAC input and output, making it a drop-in fit for North American commercial power environments. It integrates with UPS management software via the USB communication port — most major platforms that handle power management (including those bundled with server and NVR operating environments) recognize standard USB HID UPS protocols. For UPS deployments across larger installations, this unit is best positioned at the device or closet level, not as a building-wide power backup — for that scale, consider rackmount units in the same Vertiv line. Physical dimensions are 7.68 x 5.71 x 15.75 inches and the unit weighs 21.2 lbs — manageable for desk or shelf placement, though you'll want to verify shelf load ratings given the battery mass. For installations where you need to also protect camera mounting hardware or structured cabling infrastructure, pair this with appropriate surge protection devices at the panel level.
Frequently Asked Questions
Q: Does the PSA6E-1500LVT output pure sine wave or modified sine wave when on battery?
A: Pure sine wave. This is important if your connected equipment uses active PFC power supplies — modern workstations, servers, and NVRs almost universally do. Modified sine wave UPS units can cause overheating and premature power supply failure with these loads.
Q: Can the battery be replaced in the field without sending the unit in for service?
A: Yes. The PSA6E-1500LVT uses a user-replaceable battery design, so field battery swaps are supported without depot return or special tools.
Q: What is the warranty on the PSA6E-1500LVT?
A: Vertiv covers the PSA6E-1500LVT with a 3-year manufacturer warranty.
Q: How many outlets does the PSA6E-1500LVT have, and which ones stay on during an outage?
A: There are 10 total outlets. Seven provide battery backup plus surge protection and remain powered during an outage. Three are surge-only and will lose power when utility fails.
Q: What input voltage does the PSA6E-1500LVT require?
A: Standard 120 VAC — compatible with North American commercial and residential power. No step-down transformer or special circuit required for typical office or light commercial installations.
Q: Does the PSA6E-1500LVT support UPS management software for automated shutdown?
A: Yes. It includes a USB communication port that enables integration with compatible UPS management software for monitoring and graceful automated shutdown during extended outages.
The spec I keep coming back to on the PSA6E-1500LVT is the pure sine wave output — not because it sounds impressive, but because it's functionally required for the hardware most of us are protecting. Every NVR, edge server, or modern workstation with an active PFC supply will behave badly on a modified sine wave UPS over time. Vertiv built sine wave output into this unit at a price point where a lot of competing brands still ship stepped approximation, and that's the real differentiator here.
Technical Highlights:
- 1440VA / 850W True Capacity: The 850W real-power rating is what you should size against. A typical 4–8 channel NVR plus a managed PoE switch draws 200–350W under load — this unit handles that with headroom for short runtime on a deep discharge, and won't trip on startup inrush from spinning drives.
- AVR Without Battery Transfer: Automatic voltage regulation corrects sags and swells in-line, which in older commercial facilities can happen dozens of times a day. Every correction that AVR handles is a battery cycle saved — meaningful for battery longevity over a 3–5 year deployment lifecycle.
- Greater Than 95% Efficiency: In an enclosed IDF closet or camera head-end room, thermal load from every device compounds. At over 95% efficiency under full load, this unit adds minimal heat to the space compared to older ferroresonant or lower-efficiency designs.
Deployment Considerations:
- At 21.2 lbs, verify your shelf or desk can handle the weight before positioning — it's denser than it looks for a desktop form factor, driven by the internal battery mass. The 15.75-inch depth also needs clearance on a standard 18-inch shelf.
- The USB communication port enables software-based graceful shutdown, but you need to verify your NVR or server OS recognizes the UPS as a USB HID power device — most Linux-based NVR firmware and Windows Server installations do, but confirm before assuming automated shutdown is active.
The PSA6E-1500LVT is a well-matched unit for a small camera head-end room: one NVR, one managed PoE switch, and a monitoring workstation, where you need clean sine wave power, a few minutes of ride-through during brief utility interruptions, and a battery you can swap yourself without scheduling a service call three years from now.
