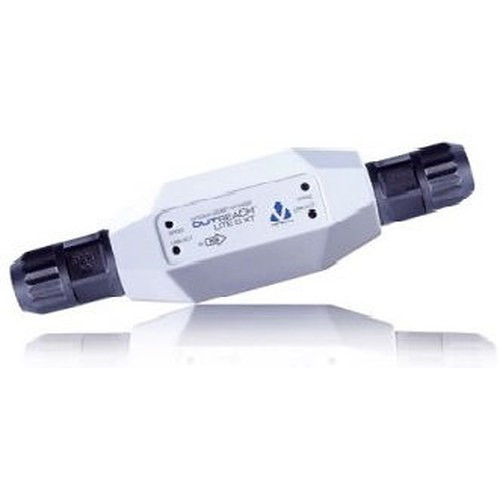

Veracity VOR-ORL-GXT PoE Extender 10/100

Veracity VOR-ORL-GXT PoE Extender 10/100

The Veracity VOR-ORL-GXT is a dedicated PoE extender purpose-built for security integrators and system installers who need to push powered devices—IP cameras, access control readers, wireless access points, and intercoms—well beyond the standard 100-meter Ethernet cable distance limitation. This unit regenerates both data and power across extended cable runs, eliminating the need for costly mid-span power supplies or infrastructure rework on larger facility deployments.

Overview

PoE extenders solve a real integration problem: standard Ethernet cabling supports PoE delivery only to about 100 meters before voltage drop becomes unacceptable to powered devices. When your camera run, access control panel, or wireless backhaul exceeds that distance, you face three choices—local power supplies at the endpoint (expensive, requires AC availability), cable replacement with shorter segments (logistically painful), or a PoE extender. The VOR-ORL-GXT sits between your upstream PoE source and downstream device, accepting IEEE 802.3af or 802.3at input, regenerating both data and power, and forwarding clean signals down the next cable segment. It's a straightforward, transparent bridge—no management interface, no configuration, no heartbeat overhead.

The -10°C to 50°C operating range means it handles indoor facility closets, equipment racks, wall-mounted enclosures, and protected outdoor installations in temperate climates. This temperature window excludes extreme cold (<−10°C) and high-heat (>50°C) scenarios; if your deployment sits in a non-climate-controlled space in a harsh climate, confirm the unit will remain within range during peak seasonal swings.

Key Features

• 10/100 Mbps Ethernet: Standard-rate speed is sufficient for 1080p and lower-bitrate megapixel IP cameras (typically 2–4 Mbps per stream), access control readers, intercoms, and wireless access points. Higher-resolution (4K+) or multi-stream configurations would require PoE++ and Gigabit Ethernet elsewhere in the network, but this unit serves well for medium-density deployments.
• PoE Power Regeneration: Accepts standard IEEE 802.3af (15.4W) or 802.3at (30W) input and re-powers downstream devices without signal attenuation. This eliminates the voltage sag that occurs over long cable runs, ensuring reliable operation even at the far end of a 200+ meter run when paired with a second extender or when installed partway down a long segment.
• Compact Form Factor: Designed for wall-mount, DIN-rail, or rack integration, so it fits into standard security system architectures without requiring separate enclosure or extensive mounting labor.
• Plug-and-Play Deployment: No IP configuration, no managed switching, no firmware updates. Connect PoE source to input, powered device to output, apply power, and operation begins immediately. This simplicity is a feature—fewer points of failure in the field.
• IEEE 802.3af/at Compatibility: Works with any standard PoE injector, PoE-enabled switch port, or PoE midspan device. Integrates into existing network segments without proprietary equipment.
• Extended Range for Distributed Facilities: Paired with proper cabling discipline, enables camera and reader deployments across warehouses, parking structures, multi-floor office builds, and dispersed outdoor perimeter layouts where cable runs naturally exceed 100 meters.

Integration & Compatibility

The VOR-ORL-GXT functions as a transparent PoE bridge—it does not interrupt or filter traffic, negotiate VLAN tags, or perform any switching intelligence. It simply repeats Ethernet frames and power. Pair it with PoE switches, injectors, and power distribution equipment upstream, and any IEEE 802.3af/at-compliant device downstream—cameras, readers, APs, emergency intercoms. If your deployment includes IP cameras or access control infrastructure, this extender is a drop-in solution for distance challenges. For planning longer runs or mixed power budgets, reference PoE infrastructure planning guidance to calculate voltage drop and confirm the extender placement minimizes signal degradation.

Typical Applications

• Extended-distance camera runs in larger facilities, warehouses, parking structures, and outdoor perimeter monitoring where cable runs exceed 100 meters.
• Access control panel and reader extension across multi-floor or geographically dispersed building layouts.
• Wireless AP backbone extension in low-density coverage zones requiring intermediate power and data regeneration.
• Intercom station and door controller power bridging in facilities with long cable segments between equipment rooms and endpoints.
• Emergency lighting and exit sign integration bundles in security system buildouts requiring extended PoE runs.

When to Choose a Different Model

If your cable run falls within 100 meters and your PoE source can deliver adequate voltage at the endpoint, a standalone extender is unnecessary—direct cabling is simpler and cheaper. If you need Gigabit Ethernet speeds for 4K camera streams or high-bitrate multi-camera IP video, this 10/100 extender will become a bottleneck; upgrade to a Gigabit-capable PoE extender or reprovision with shorter cable runs and additional PoE sources. If your operating environment regularly exceeds 50°C (outdoor desert, HVAC equipment room) or drops below −10°C (unheated outdoor cabinet), verify thermal limits with the manufacturer before specifying.

Eden Phillips

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Veracity VOR-ORL-GXT on multiple integrations where cable runs forced us into expensive trenching or mid-span power supply infrastructure. This extender removes that friction. It's a simple, no-nonsense solution for pushing power and data beyond standard Ethernet limits without introducing the complexity of managed devices, firmware updates, or fancy diagnostics that often fail in field conditions.

Technical Highlights:

• 10/100 Mbps Operation: Sufficient for 1080p and lower-bitrate megapixel camera streams; standard-rate IP phones and access control readers. Not suitable for 4K or high-bitrate multi-stream scenarios—that requires Gigabit infrastructure elsewhere.
• PoE Regeneration (802.3af/at): Accepts 15.4W or 30W input and outputs clean power to downstream devices. Handles mixed power budgets without signal loss. Two units can be chained if you need to span 300+ meters, though voltage drop increases with each stage—test in situ before final deployment.
• Temperature Stability (-10°C to 50°C): Performs reliably in utility rooms, ceiling cavities, equipment racks, and protected outdoor enclosures in temperate climates. Not rated for unheated freezers, non-climate-controlled rooftop cabinets, or direct sun exposure in desert environments—confirm thermal compliance for your specific site.

Deployment Considerations:

• Placement matters: position the extender roughly midway along the cable run or in the upstream equipment room to minimize voltage sag on the output side. Output-side voltage will be lower than input voltage due to cable impedance—a reality even with a regenerating extender.
• If chaining two extenders, plan for cumulative voltage loss. A second extender on the output of the first will see slightly lower input voltage, reducing its output margin. Always verify end-device power margins in the field.
• Unmanaged device—no IP address, no web interface, no logs. If a run stops working after installation, troubleshooting requires a multimeter and basic cable testing. No diagnostics to pull from the unit itself.

The VOR-ORL-GXT is the right choice for integrators building out large facilities with dispersed powered devices where PoE-enabled switches are already deployed and cable runs exceed 100 meters. It solves the distance problem without adding management overhead—exactly what field installations need when project schedules are tight.

Frequently Asked Questions

Q: Can I chain two VOR-ORL-GXT units to extend power even farther?

A: Yes. The output of one extender can feed the input of a second, allowing you to span 200+ meters total. However, each stage introduces some voltage drop. Test the final configuration with your actual downstream device (camera, reader, etc.) to confirm adequate power margin—a multimeter measurement at the far end device is essential before signing off on the installation.

Q: Does the VOR-ORL-GXT require configuration or management?

A: No. It's plug-and-play—connect PoE input, connect your powered device to the output, and it operates transparently. No IP address, no web interface, no firmware updates needed. This simplicity is intentional and reduces failure points in the field.

Q: What's the difference between this extender and just using a PoE injector at the far end?

A: A midspan PoE injector (like a desktop unit) requires AC power at the remote endpoint—often not available in ceiling cavities, outdoor cabinets, or equipment rooms. The VOR-ORL-GXT regenerates power and data from upstream PoE, so it needs only the Ethernet cable coming in and doesn't require separate AC provisioning at the remote site.

Q: Will the VOR-ORL-GXT work with wireless access points or only cameras?

A: It works with any IEEE 802.3af/at-compliant PoE device—cameras, access points, intercoms, badge readers, emergency lighting, door controllers, and any other powered endpoint. As long as the device draws 30W or less and operates on standard PoE, the extender will support it.

Q: Is the -10°C to 50°C temperature range suitable for outdoor installations?

A: It's suitable for protected outdoor enclosures in moderate climates. If your site experiences sustained temperatures below −10°C (e.g., northern winters without climate control) or above 50°C (e.g., direct sun on a metal cabinet), the extender may drift out of operating range and fail. Confirm your site's seasonal extremes before specifying. For harsh climates, inquire about industrial-grade extenders rated to −40°C or higher.

Q: Can I use the VOR-ORL-GXT with PoE++ (802.3bt) devices?

A: No. This unit is rated for IEEE 802.3af/at (up to 30W). PoE++ devices draw significantly more power and require higher-voltage PoE++ sourcing and compatible extenders. If your deployment includes PoE++ cameras or large access control systems, you'll need a PoE++ extender instead.
