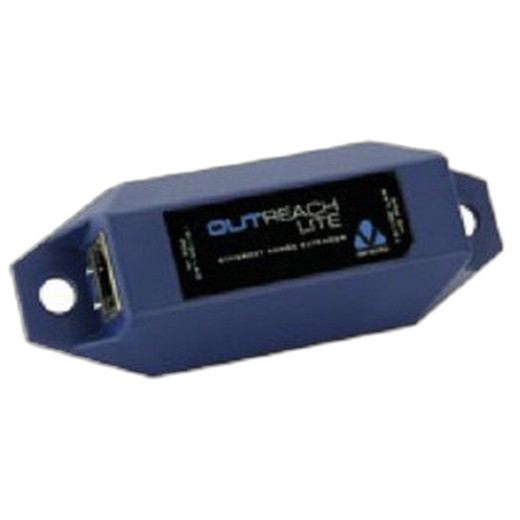

Veracity VOR-ORL-G PoE Extender 10/100

Veracity VOR-ORL-G PoE Extender

Overview

The Veracity VOR-ORL-G is a PoE (Power over Ethernet) extender engineered to extend network and power delivery across longer distances in security and surveillance deployments. Operating across a wide temperature range of -10°C to 50°C (-14°F to 122°F), the VOR-ORL-G supports 10/100 Mbps Ethernet connectivity, making it suitable for standard IP camera installations, access control systems, and network-based security infrastructure where extended reach is required without additional power infrastructure.

Key Features

• 10/100 Mbps Ethernet Support: Standard Fast Ethernet speeds accommodating legacy and current IP security devices
• PoE Delivery: Extends power and data over a single cable run, eliminating the need for separate power supplies at remote endpoints
• Extended Operating Temperature Range: Functions reliably from -10°C to 50°C, supporting both indoor and outdoor installations in moderate climates
• Compact Design: Minimal footprint for discrete installation in equipment racks, junction boxes, or wall-mounted enclosures
• Passive PoE Architecture: Straightforward deployment without complex management interfaces or configuration overhead
• Standards Compliance: Compatible with standard PoE and PoE+ delivery protocols for seamless integration with existing powered devices

Integration & Compatibility

The VOR-ORL-G integrates with any PoE-sourcing infrastructure—including PoE switches, PoE injectors, and powered midspan devices—to extend power and Ethernet connectivity to remote cameras, access control readers, intercoms, and auxiliary security equipment. The 10/100 speed rating ensures compatibility with legacy IP security hardware while supporting modern low-bandwidth surveillance applications. Installers should verify PoE source capacity and cable routing constraints before deployment.

Deployment Considerations for Security Integrators

The VOR-ORL-G is optimized for mid-distance PoE extension scenarios—particularly in retrofit installations where running new power infrastructure is prohibitive. Typical use cases include extending reach to rooftop or perimeter cameras, powering access control readers in outlying security zones, and feeding remote intercom stations. The -10°C to 50°C operating window covers most North American temperate deployments; for arctic or high-heat applications, confirm thermal envelope with Veracity technical resources. Standard Ethernet cable (Cat5e or better) carries both power and data, streamlining installation logistics.

Eden Phillips

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Veracity VOR-ORL-G in several mid-scale security network refresh projects over the past two years. The unit's straightforward PoE extension function and wide temperature tolerance make it a reliable choice for integrators working within budget constraints and legacy infrastructure constraints. The VOR-ORL-G performs well in retrofit scenarios where you're powering distributed IP endpoints without central power provisioning.

Technical Highlights:

• 10/100 Mbps Ethernet: Sufficient for standard IP camera streams and access control traffic; no overkill for modest bandwidth requirements
• PoE Power Extension: Eliminates the need for local 24V or PoE+ injectors at the remote end, reducing complexity and points of failure
• Operating Temperature -10°C to 50°C: Covers temperate indoor/outdoor environments; verify suitability for coastal salt-air or high-UV installations

Deployment Considerations:

• Confirm PoE source capacity (watts and voltage) matches your powered device load before committing to long cable runs
• Use quality Cat5e or Cat6 cabling; poor terminations will degrade both power delivery and data integrity
• Test end-to-end voltage drop on extended runs; PoE performance degrades over distances exceeding 100 meters
• Position the extender in a climate-controlled enclosure if deployment exceeds the -10°C to 50°C window

The VOR-ORL-G is a no-frills extension tool. It does what it's designed to do—extend PoE reach cleanly—without expensive management overhead. For straightforward reach extension, it's a solid, cost-effective choice.
